| Prod Model: |
FD10-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
| Rotating Shaft: |
Horizontal |
Product Description

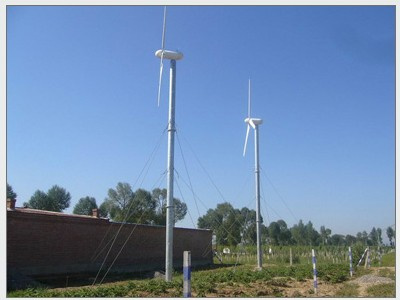

Wind street light is one of our proficient products.
Our products' components such as blades, generateor, controller inverter are all self-designed, after comparing test paerformance ets. Is better than the industry average. We welcome our customers contrast to select and use.
|
Rated power(w) |
5000 |
Annual energy production (kwh) |
7500-15000 |
|
Rated wind speed (m/s) |
10 |
Maximum power(w) |
7100 |
|
Start wind speed (m/s) |
3 |
Speed regulation method |
Mechanical yaw + Electromagnetic brake |
|
Working wind speed (m/s) |
4-25 |
Generator Forms |
Magnet three-phase AC |
|
Security wind speed (m/s) |
40 |
Tower height (m) |
350 |
|
Rated speed (r/min) |
200 |
Guyed tower weight/height |
278kg/9m |
|
Rotor Diameter (m) |
5 |
Free standing tower weight/height |
855kg/9m |
|
Rated Voltage (v) |
DC 240 |
Suggested battery capacity |
12V 150AH 20PCS |
|
Inverter rated output voltage (v) |
AC 220 |
Matched inverter type |
Revise Wave/Sine Wave/off-grid |
|
Blade material |
FRP strengthening |
|
|
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
