| Number Of Blade: |
Multiple-Blade |
| Stress Way Of Blade: |
Resistance |
| Rotating Shaft: |
Horizontal |

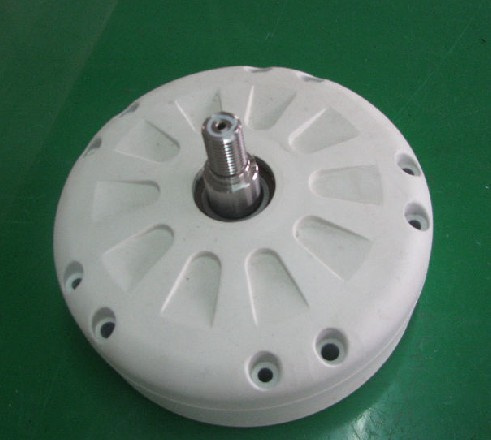

Product Description
Electrical Specification:
Rated Output Power(W): 600W
Rated Voltage: 66V
Phase Resistance (Ohm): 5.0
Generator configuration: 3 Phase star connected AC output
Design Lifetime: >10years
Mechanical Specification:
Weight (Kg): 12.7
Starting Torque (NM): <0.5
Bearing Type: High standard NSK 6207DDUC3
Material Specification
Shaft Material: High standard Stainless Steel
Shaft Bearing: NSK bearing
Outer Frame Material: High standard Aluminium alloy with TF/T6 heat treatment
Fasteners (nuts and bolts): High standard Stainless Steel
Windings Temperature Rating: High standard Stainless Steel
Magnet Material: NdFeB (Neodymium Iron Boron)
Magnets Temperature Rating: 150 degrees Celsius
Lamination Stack: High specification cold-rolled Steel
