Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Output Type:
AC Three Phase
Product Description

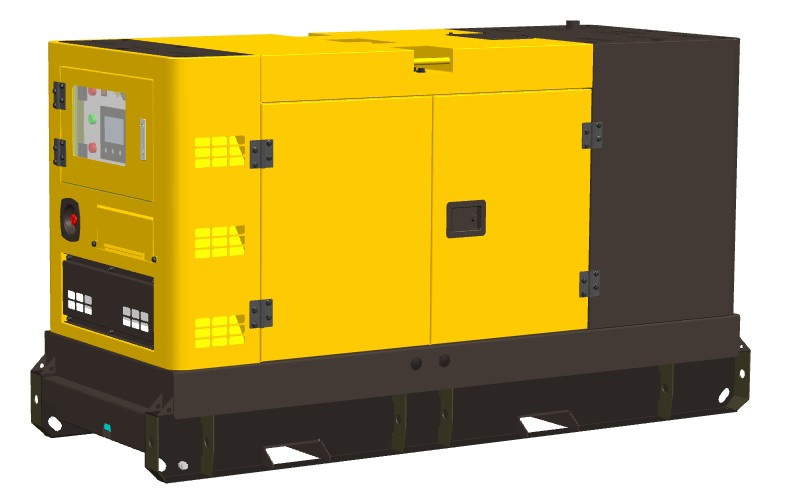

Volvo silent diesel generators
WD V120
Prime Power 150kVA
50Hz/1500rpm/400V
Prime power: Continuous running at variable load for unlimited periods with 10%
Overload available for 1 hour in any 12 hour period. In accordance with GB/T2820-2009.
Standby power: Continuous running at variable load for duration of an emergency.
No overload is permitted on these ratings.
Volvo Generator Set
Engine
Brand WANDI
Brand VOLVO PETNA
Model
WDV120
Model
TAD731GE
Prime power
KVA/KW
150/120
Rated power(net)
KVA/KW
165/132
Standby power
KVA/KW
165/132
No. of cylinder
6
Frequency
Hz
50
Cycle type
4-cycle
Rated voltage
V
400/230
Cylinder arrangement
Vertical in line
Rated current
A
216
Aspiration type
Turbocharged
Power factor
COS Φ
0.8(lag)
Combustion system
water cooled
Fuel tank capacity
L
340
Speed mode
Mechanical
Sound pressure level LP
dB(A)1m
85
Bore
mm
108
Alternator
Stroke
mm
130
Brand
FARADAY
Compression ratio
18.0:1
Model
FD3D
Displacement
L
4.67
Connecting type
3 phase and 4 wires
Engine oil capacity
L
20
Excitation type
brushless, self excited
Total coolant capacity
L
23.8
Steady voltage regulation
≤ 1%
Exhaust smoke
1bosch
Transient voltage regulation
≤ ±25%
Lubrication consumption
L/H
0.1
Frequency recovery time
≤ 3s
Fuel consumption
g/kw@h
215
Protection
IP23
Cooling max water temperature
ºC
104
Insulation
Class H
Governor type
Electronic
Overload capacity
≤ 10%
Start mode
Electronic
Emission standards
Europe stageII
Dimension/weight
Open type
Soundproof canopy type
Dimension (L*W*H)
mm
2466*866*1437
Dimension (L*W*H)
mm
3000*1240*1760
Net weight
kg
1450
Net weight
kg
2270
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
