Tubular Turbine, Adjustable Blades Tubular Turbine for Hydro Power Project

Name: Tubular Turbine, Adjustable Blades Tubular Turbine for Hydro Power Project
Brand: aboutgenerator.com
SKU: 689311992
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Fuchun Industry Development Co., Ltd. Shenzhen

Showroom Product Company Profile

Prod Model:	GD / GZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Water Turbine:	Tubular
Shaft Type:	Horizontal
Frequency:	50Hz or 60Hz

Product Description

Low Head Tubular Turbine , Adjustable Blades Tubular Turbine for Hydro Power Project

1.High quality
2.High efficiency

3.Economic price

Tubular Turbine

Tubular turbine has been divided into Bulb tubular and shaft extension tubular according to the arrangement. Suit to low water head 2-25 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 5.8meters, with rated output 200Kw to 16Mw.

Turbine units normally be horizontal shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size

1,Suitable water head : 2-25m

2, Output scope : 200Kw -16Mw

3, Runner diameter : 80cm -560cm

4,Runner material : stainless steel

5, Arrangement type : Horizontal

Company Information

Our company is an experienced manufacture and engineering Company in small scale hydro power equipment ( 100Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services. As turbine manufacture more than 50 years experience.
We provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.

1.Water Turbine Generator Unit Design & SUPPLY
2.Hydropower equipment supply
3.Feasibility study of hydropower project
4.Manufacture
5.Installation & Supervision
6.Commissioning and Training service
7. Hydro power plant rehabilitant

8. Hydro power plant spares supply
9.Services

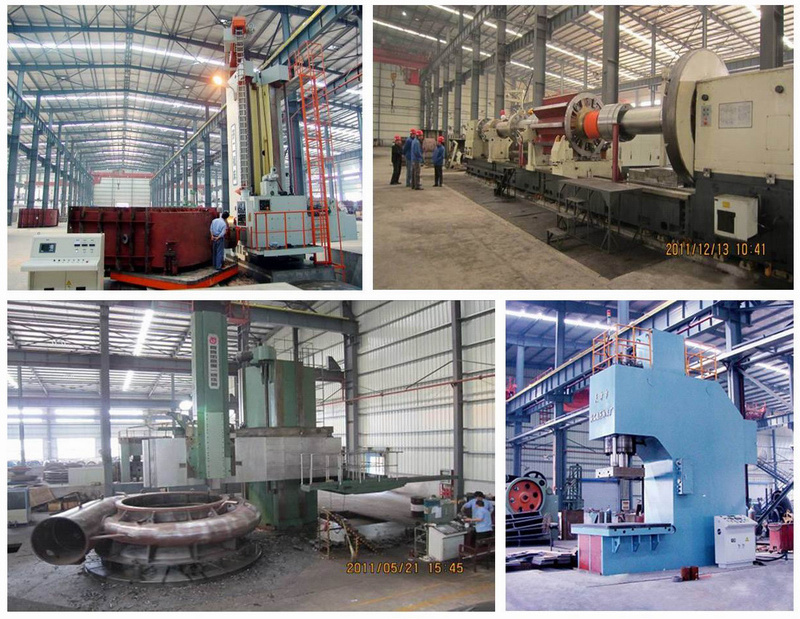

Our factory occupies 560,000 square meters of land, which includes 18 workshops, over 320 sets of heavy and precision producing and testing machinery; scientific research development center in the southern China, and various testing facilities. We have a general technical staff of 380 and 135 senior technical professionals.

Reference List of Some Export Projects
No.	Country and Power Station Exported to	Technical Parameters	Type	Qty	Date of contract
1	HPP2 Guatemala	Rated head:305m Rated flow:0.385m³/s Frequency:60Hz Outgoing line voltage:480V	CJA475-W-80/2×6.5 SFW1000-8/1180	1	2013.06
2	Pakistan	Type:HL855a Runner diameter:1750mm	27Mw spare runners	1	2013.06
3	UK	Rated head:73.8m Rated flow:0.1325m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-55/1×7	1	2013.03
4	turkey	Rated head:203m Rated flow:0.312m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-80/1×8.5 SFW500-8/990	1	2013.05
5	Sri Lanka	Rated head:88m Rated flow:1.41m³/s Frequency:50Hz Outgoing line voltage:400V	HLA550-WJ-62 SFW1000-6/1180	1	2013.05
6	Congo	Rated head:210m Rated flow:0.423m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-80/1×9.5 SFW700-8/1180	1	2013.05
7	Ecuador	Rated head:925m Rated flow:0.26m³/s Frequency:60Hz Outgoing line voltage:4.16KV	CJC601-W-100/1×5 SFW1980-6/1430	2	2012.12
8	Philippines	Rated head:4m Rated flow:10m³/s Frequency:60Hz Outgoing line voltage:440V	ZD-LH-160 SF320-36/2150	1	2012.12
9	Guatemala	Rated head:128m Rated flow:0.6+0.3m³/s Frequency:60Hz Outgoing line voltage:440V	CJA475-W-80/2×9 SFW614-12/1180 CJA475-W-80/2×6.5 SFW302-12/990	2	2012.11
10	UK	Rated head:48.51m Rated flow:0.351m³/s Frequency:50Hz Outgoing line voltage:400V	XJA-W-55B/1x8.5	1	2012.11
11	UK	Rated head:47.48m Rated flow:0.38m³/s Frequency:50Hz Outgoing line voltage:400V	HL110-WJ-42	1	2012.11
12	UK	Rated head:25.44m Rated flow:0.332m³/s Frequency:50Hz Outgoing line voltage:400V	HLD54-WJ-50	1	2012.11
13	UK	Rated head:35.19m Rated flow:0.3m³/s Frequency:50Hz Outgoing line voltage:400V	HLD54-WJ-50	1	2012.11
14	UK	Rated head:37.82m Rated flow:0.291m³/s Frequency:50Hz Outgoing line voltage:400V	HLD54-WJ-50	1	2012.11
15	HPP1 Guatemala	Rated head:60m Rated flow:1.24m³/s Frequency:60Hz Outgoing line voltage:440V	HLA575c-WJ-56 SFW600-8/990	2	2012.8
16	UK	Rated head:58.1m Rated flow:0.169m³/s Frequency:50Hz Outgoing line voltage:400V	XJA-W-40/1×9 SFW100-8/590	1	2012.04
17	Ecuador	Rated head:38m Rated flow:1.64m³/s Frequency:60Hz Outgoing line voltage:440V	HL220-WJ-50 SFW470-8/990	1	2012.04
18	Italy	Rated head:43m Rated flow:0.59m³/s Frequency:50Hz Outgoing line voltage:400V	HL110-WJ-42 HLD54-WJ-40	2	2012.03
19	Pakistan	Type:HL855a Runner diameter:1750mm	27Mw spare runners	3	2011.11
20	ITALY	Rated head:134m Rated flow:0.25m³/s Frequency:50Hz Outgoing line voltage:400V	CJA475-W-80/2×6.5 SFW250-10/850	2	2011.06
21	Italy	Rated head:228m Rated flow:0.4m³/s Frequency:50Hz Outgoing line voltage:400V	CJA475-W-85/1×9.5 SFW715-8/1180	3	2011.05
22	UK	Rated head:61.8m Rated flow:0.221m³/s Frequency:50Hz Outgoing line voltage:400V	XJA-W-42/1×10 SFW100-8/590	1	2011.03
23	HPP1 Albania	Rated head:379.7m Rated flow:0.685m³/s Frequency:50Hz Outgoing line voltage:10.5KV	CJA475-W-105/2×7.5 SFW2150-8/1730	1	2010.12
24	HPP2 Albania	Rated head:461.6m Rated flow:0.786m³/s Frequency:50Hz Outgoing line voltage:10.5KV	CJA475-W-115/2×8 SFW3000-8/1730	1	2010.12
25	Italy	Rated head:29m Rated flow:3.2m³/s Frequency:50Hz Outgoing line voltage:400V	HLD41-WJ-42 HLD74-WJ-60	2	2010.12
26	Afghanistan	Rated head:36m Rated flow:1.67m³/s Frequency:50Hz Outgoing line voltage:400V	HL295-LJZ-50 SF500--6/850	5	2010.12
27	Pakistan	Rated head:206m Rated flow:0.89m³/s Frequency:50Hz Outgoing line voltage:6.6kV	CJA475-W-100/2×10 SFW1500-10/1430	2	2010.08
28	HPP1 Vietnam	Rated head:385m Rated flow:11.24m³/s Frequency:50Hz Outgoing line voltage:13.8kV	HL69-LJ-205 SF37500-10/3600	2	2010.02
29	Mozambique	Rated head:206.8m Rated flow:0.358m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-80/1×9 SFW570-8/990	1	2010.04
30	Pakistan	Rated head:47.5m Rated flow:2.62m³/s Frequency:50Hz Outgoing line voltage:6.6kV	HLA696-WJ-68 SFW1000-8/1180	3	2010.03
31	Italy	Rated head:35m Rated flow:4.25m³/s Frequency:50Hz	HLA696-WJ-82 SFW800-12/1430 HLJF2504-WJ-56 SFW400-8/990	3	2010.01
32	Italy	Rated head:265m Rated flow:0.734m³/s Frequency:50Hz Outgoing line voltage:6.3kV	CJA475-W-110/2×8.5 SFW1600-10/1730	2	2009.07
33	Georgia	Rated head:289m Rated flow:1.775m³/s Nozzle No.:2 Bucket No.: 20 Runner Outer Diameter: 1600mm RUNNER DIAMETER: 1300mm	4000KW Pelton runner change	3	2009.06
34	Vietnam	Rated head:86.2m Rated flow:22.5m³/s Frequency:50Hz Outgoing line voltage:10.5kV	HLA883-LJ-155 SF17000-12/3250	2	2009.01

Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.

Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.

Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.

In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.

Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
