North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:
1 Year Under Normal Operation
After-Sales Service Provided:
Engineers Available to Service Machinery Overseas
Structure:
Fixed
Type:
Suction Filter
Usage:
Provide Dry Air for Transformers
Product Description
Drying air with high quality and low dew point through scientific combination of the
cooling, adsorption and purification, reasonable pipe connection and capacity
collocation.

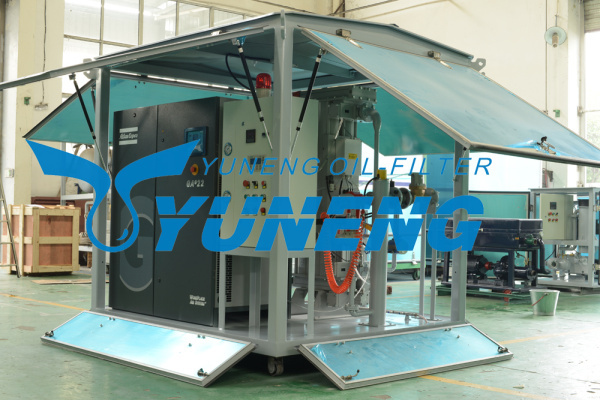

Transformer Dry Air Generator is developed by Chongqng Yuneng Oil Purifier Manufacturing co., Ltd. comprehensively utilized the advantages of the jucai, uncial, coalescing oil-water separators, super accuracy filtering so as to economically and optimally operate and produce drying air with high quality and low dew point through scientific combination of the cooling, adsorption and purification, reasonable pipe connection and capacity collocation. Besides, it can check automaticaly by using PLC system. It is compact in strcture, low in gas consumption and long in using life. Furthermore, its dryer can be used three times longer than normal one. The equipments are high efficiency, saving energy and good safety because of adopting microcomputer program controlling.
Features of Parameter of Transformer Dry Air Generator
Item
Parameter
Unit
GF-50
GF-100
GF-150
GF-200
Technical Parameter
Flow
M³/h
50
100
150
200
Working Pressure
Mpa
0.6~0.8
Pressure Drop
Mpa
0.05
Noise
dB(A)
70
Working Power
KW
380V-50Hz 3 Phase 4 Wire
Total Power
KW
12
19
22
26
Size
Length
cm
215
215
230
230
Width
cm
155
155
165
165
Height
cm
230
230
230
230
Diameter
DN
32
40
50
50
Weight
Kg
900
980
1030
1050
After Treatment Index
Discharge Pressure
Mpa
0.02~0.03
Dew Point
°C
-50°C ~ -70°C
Particle
um
0.01
Oil content in air outlet
ppm
0.01
Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14, 500 square meters, specializes in the R&D, manufacture, and marketing of oil, water and gas filtering and purification products and complete sets of related equipment. We gather a group of specialized talents with years of working experience and technological development. Now we have 228 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1, 000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture.
We attach great importance to product quality, specialization, dedication and constant improvement. Aiming to become a world-advanced manufacturer of oil treatment equipment, we have always upheld the development philosophy centering on "technological innovation and service improvement". We have passed ISO quality management certification. Besides, ten of our new technologies have received national patents of invention and five of our oil purifier series have been granted the title of "new and high-tech products of Chongqing". In 2004, our company was rated as a new and high-tech enterprise of Chongqing. In addition, with the support and help of the Chongqing Commission of Science and Technology, our company implemented EPR information management system in 2006. All these lay a solid foundation for our company to provide customers with high-quality reliable products and fast and comprehensive service to avoid homogenous competition on quality improvement.
Over the past 20 years, we have always stuck to the operational concept of "being faithful and dedicated, practical in development, and cooperative for common progress". By working in a down-to-earth manner and orientating ourselves to customer needs, we have received the recognition of a lot of customers. So far we have sold over 15, 000 sets of Yuneng-brand oil purifiers, which are widely used in electric, metallurgical, petrochemical, mechanical, military industry, railway, light industry, and other industries. Our products enjoy a fairly big market share and have become a famous brand in medium- and high-grade oil treatment equipment.
According to the long-term development objective of the Group, we set up a new company called Chongqing Xingao Electromechanical (Group) Co., Ltd. The new Group will continue to seek innovation and dedicate itself to the research and manufacture of high-end oil treatment technologies. It will also seek diversified development to cover the manufacture of water and gas purification equipment and filtering consumables as well as the assembly of electro-mechanical and environmental protection equipment, so as to realize the goal of making strong main business while making the company bigger as a whole. We are ready to do our part to develop national industries, save energy and protect the environment.
