Top Supplier 50Hz Silent 250kVA/200kw Diesel Generators (GDC250*S)

Prod Model:	GDC250*S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	Cummins Brand, Perkins, Deutz Is Optional
Alternator:	Stamford, Marathon, Engga, Godlike
Controller:	Dse 7320, Smartgen Hgm6110, Hgm6120 Is Optional
Test Load:	25%, 50%, 75%, 100%, 110%
Voltage Range:	110V-690V
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

Top Supplier 50Hz Silent 250kVA/200kW Diesel Generators (GDC250*S)

1: Generator set Power: 250kva/200kw
2: Powered by brand Cummins diesel generator set
4: Cummins diesel generaetor gots Global quality warranty
5: Cummins generator set with CE/ISO certificate

Powered by Dongfeng Cummins, it enjoys the features of high reliability, easy maintenance,
Long continuous running hours and ideal for port, railway, industrial and mining.
The global service net of Cummins can provide our customers with reliable and guaranteed service.

Generator Supply Scope:
1. Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2. Brand-new engine, w/ start motor.
3. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
4. Auto control panel, with LCD display.
5. Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
6. Circuit Breaker, Exhaust Silencer
7. Copper Radiator for 50° C ambient temperature and bouble-deck cooling, with fan guard and front guard
8. Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stablilization.
9. Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
10. External recessed emergency stop button for extra safety
11. The colors & Brands by your requests
12. Optional Choice: Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.

Cummins Diesel Engine
· Engine and alternator shall be mounted on the same steel frame
· Built-in damper for anti-vibration
· Small size, light weight, easy to operate, install and maintain
· Diesel engine: Cummins
· Advanced and reliable control module: Key start, Auto start, Remote control by PC
· Full range protection function and alarm shutdown feature
· Cooling: Closed water cooling or air force cooled
· Starting: Mechanical/electric start
· Noise level: 65dB to 75dB 7 meter away

Good quality Brushless Alternator: Stamford
Option with: Marathon, Lorysomer,
· Brush-less, 4 poles, rotation magnet
· IP21-23(NEMA1) enclosure is standard for all industrial alternators
· The insulation system is Class H
· Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts
· Wide range of flange adaptors and single bearing disc coupling
· Standard 2/3 pitch windings avoid excessive neutral currents

Control Panel
It includes:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service

1.Genset Technical Data: Gensets model GDC250*S Prime power 200KW/250kVA Standby power 220KW/275KVA Rated speed 1500RPM Output frequency 50Hz Power Factor 0.8 Phase 3 Rated voltage 400/230V Dimensions(mm) (L×W×H) 2400*860*1380 Genset Weight(kg) 1440 Prime Power: This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.                                                      Standby power: This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.                                                                                                                    Rated voltage : Available with customer requirements. 2. Specification of diesel engine: Engine brand Cummins Engine model 6LTAA8.9-G2 Number of Cylinders 6 Cylinder arrangement 6 Vertical in-line Cycle Four stroke Aspiration Turbo,Water/Air Cooling                                                   Fuel System PB type fuel pump Bore×Stroke (mm×mm) 114x 135 Displacement (Liter) 8.3 Compression Ratio 17.0:1 Speed Governor Electrical Cooling System Forced Water Cooling Cycle Speed Stability (%) ≤1% Total lubrication system capacity (L)                      27.6 Fuel Consumption at 100% Load (g/kwh) 209 Starting Method DC24V Electrical starting 3. Specification of alternator Alternator brand Stamford Alternator model UCI274G Number of Phase 3 Connecting Type 3 Phase and 4 Wires Number of Bearing 1 Protection Grade IP23 Altitude ≤1000m Exciter Type Brushless ,Self-exciting                                          Insulation Class H Telephone Influence Factor (TIF)                            ≤50 THF ≤2% Voltage Regulation, Steady State                              ≤±1% Transient State Voltage                                    ≤-15%~+20%

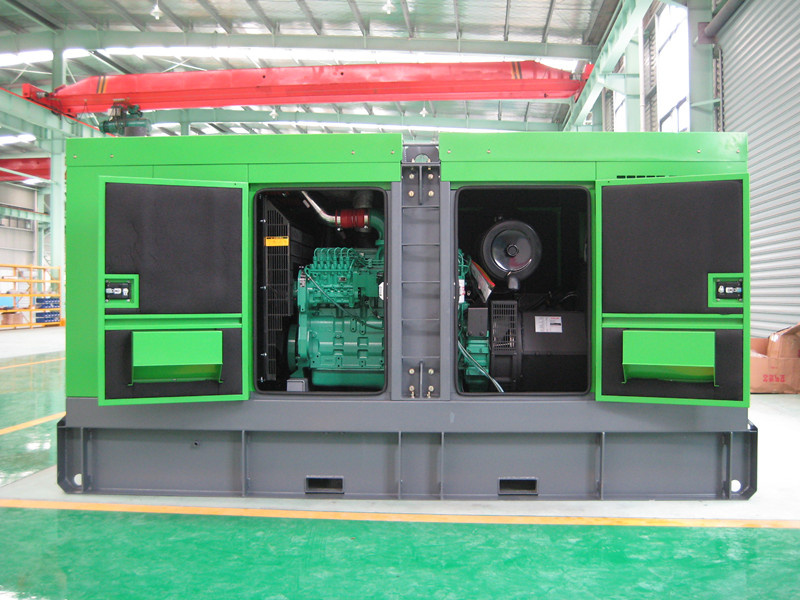

Generator photos:
