| Prod Model: |
THN-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Working Principle
Under certain pressure,with the use of the difference of diffusion rate between nitrogen and oxygen int air on carbon molecular sieve;oxygen molecule ins absorbed largely by the carbon molecular sieve and nitrogen molecule concentrates in gas-phase in a short time,so as to realize separation of oxygen and nitrogen.
Due to the absorption capacity of carbon molecular sieve for oxygen varies largely from different pressure,reducing the pressure can make the carbon molecular sieve release absorbed oxygen molecular and regenerate the carbon molecular sieve,so as to realize repeated recycling of it.

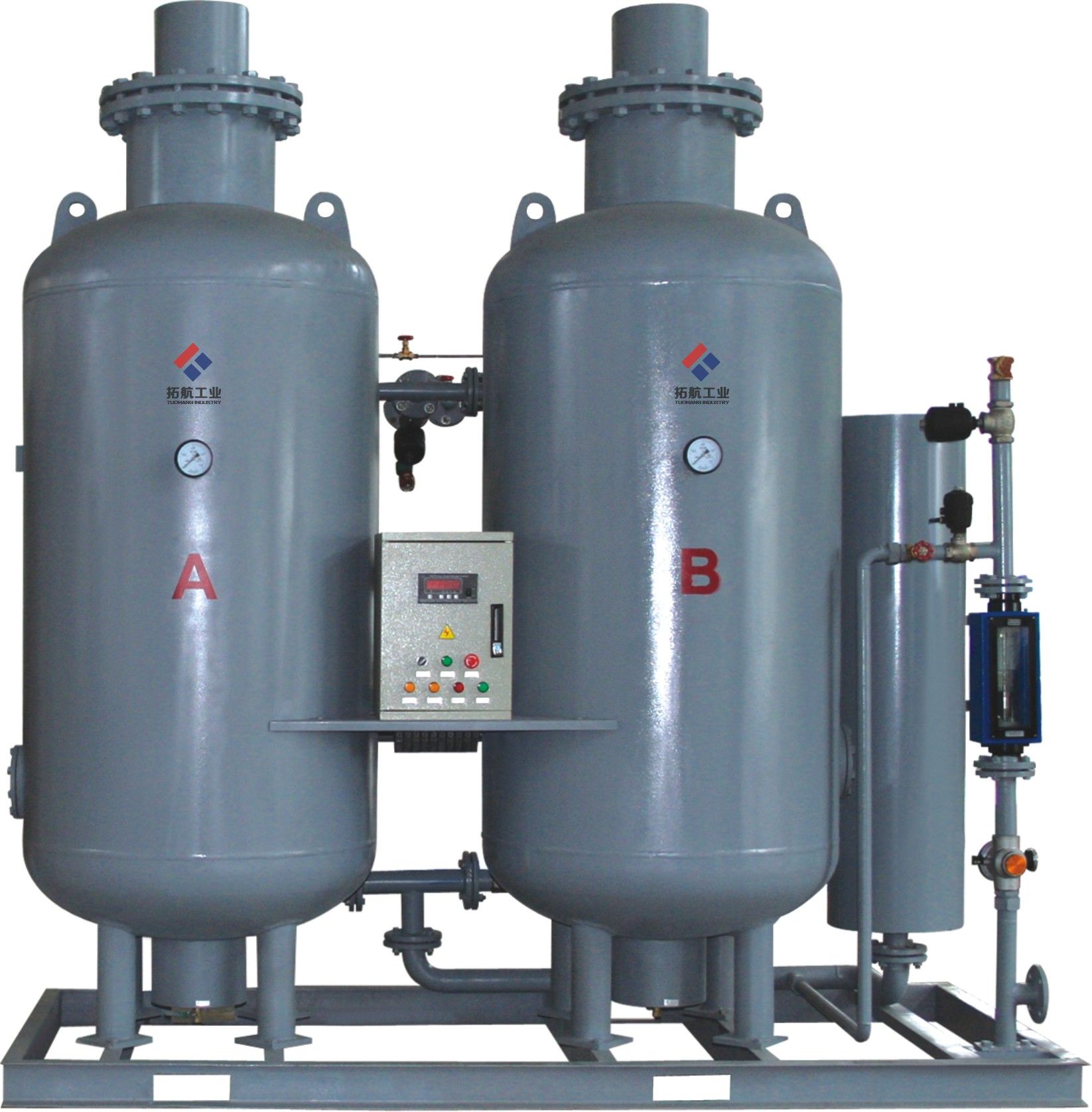

It adopts the technique of two absorption towers,whcih one tower absorbs oxygen and produces nitrogen,while another tower releases the absorbed oxygen and regenerates the carbon molecular sieve.This cyclic-alternating patten can produce high-quality nitrogen continuosly.
Technical Features
Low energy consumption,less cost,strong adaptablity,rapid nitrogen production ande adjustable purity.
Perfect technique process disign and optimal using effect.
Modular strcuture design and saving of floor space.
Convenient operation,stable performace, high atuomation and unattended operation.
Reasonable inner structure,uniform distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.
Technical parameters
Nitrogen Flow: 5~300Nm³/h
Nitrogen Purity: 95%~99.999%
Absorbent pressure:0.5~1.2MPa
Nitrogen Pressure:0.1~0.7MPa(adjustable)
Nitrogen Dew Point:-40ºC or -60ºC
|
Model(THN Standard Model) |
Output(Nm³/h) |
Effective Air Consumption |
Air Purification System |
Import and Export Caliber(mm) |
|
THN-10E |
10 |
0.37 |
T-0.5 |
DN15 |
DN15 |
|
THN-20E |
20 |
0.74 |
T-1 |
DN25 |
DN25 |
|
THN-30E |
30 |
1.1 |
T-1.6 |
DN25 |
DN25 |
|
THN-40E |
40 |
1.47 |
T-1.6 |
DN25 |
DN25 |
|
THN-60E |
60 |
2.2 |
T-3 |
DN32 |
DN40 |
|
THN-80E |
80 |
2.96 |
T-3 |
DN32 |
DN40 |
|
THN-100E |
100 |
3.67 |
T-6 |
DN40 |
DN40 |
|
THN-120E |
120 |
4.4 |
T-6 |
DN40 |
DN50 |
|
THN-150E |
150 |
5.5 |
T-6 |
DN40 |
DN50 |
|
THN-200E |
200 |
7.3 |
T-10 |
DN50 |
DN50 |
|
THN-300E |
300 |
11.0 |
T-12 |
DN50 |
DN50 |
|
THN-400E |
400 |
14.7 |
T-20 |
DN65 |
DN50 |
|
THN-600E |
600 |
22.0 |
T-30 |
DN80 |
DN50 |
|
THN-800E |
800 |
29.3 |
T-30 |
DN80 |
DN65 |
|
THN-1000E |
1000 |
36.7 |
T-40 |
DN100 |
DN80 |
|
THN-1200E |
1200 |
44.0 |
T-50 |
DN100 |
DN80 |
|
THN-1500E |
1500 |
55.0 |
T-60 |
DN125 |
DN80 |
|
THN-2000E |
2000 |
73.3 |
T-80 |
DN150 |
DN80 |
|
THN-2500E |
2500 |
91.7 |
T-100 |
DN150 |
DN100 |
Zhejiang Tuohang Industrial Equipment Co., Ltd. is located in Fuyang, a beautiful city of Hangzhou. We are professional in Manufacturing air separation plants, compressed air purification equipment and gas dry equipments etc.
Our company owns advanced manufacturer equipment, testing equipment, , strict management system. We have already passed ISO 9001. As Tuohang people believe the quality is the soul of the company. And research&development group has been established, the quality is of realiable
Advanced management experience, strict quality control and internal management system consist of Tuohang Spirit...Tuohang people' S goal is getting satisfactory products and making customer satisfied.
You are welcomed to visit us and any question is appreciated.
