South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension:
3100*1150*1820mm
Alternator:
Leateck/Stamford
Controller:
Smartgen/Deep Sea
Insulation Grade:
H
Protection Grade:
IP21-23
Start System:
Electric Start
Type:
Micro-Computer Control Automatic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
Product Description
1.International Warranty Service 2. Short delivery time 3. With ISO9001 SGS & CE certification 4. Spare parts are easy to get from worldwide market with much cheaper price 5. Coupled with Stamford alternator or Chinese alternator 6. Perfect after-service network 7. Both 50Hz and 60Hz
Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL-110
110
88
100
80
6BT5.9-G2
LTG274C1
6110
230/400VAC,50Hz,0.8PF (lag),Three phase four wires
Generator set specifications
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
215(22)
Starting Battery Capacity ,A/hrhhr
80*2
Total Coolant Capacity ,L
27
Fuel Capacity (base tank),L
N/A
Engine Data
Model
6BT5.9-G2
Type
In-line 6 Cylinder,4 Cycle
Displacement ,L
5.9
Compression Ration
17.5:1
Aspiration
Turbo
Fuel System
A/AD type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
102*120
Rated Speed ,rpm
1500
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
16.4
Coolant Capacity, L
27
Alternator Data
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125 ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
Exhaust System
Exhaust air flow
16.8m3/min
Exhaust Temperature
565ºC
Max Back Pressure
10kPa
Air Intake System
Max Intake Restriction
6.35kPa
Burning Capacity
6.48m3/min
Air Flow
158m3/min
Lubricant System
Total Lubricant Capacity
16.4L
Lubricant Consumption
≤4g/kwh
Engine Oil Tank Capacity
14.2L
Oil Pressure at Rated Speed
345kPa

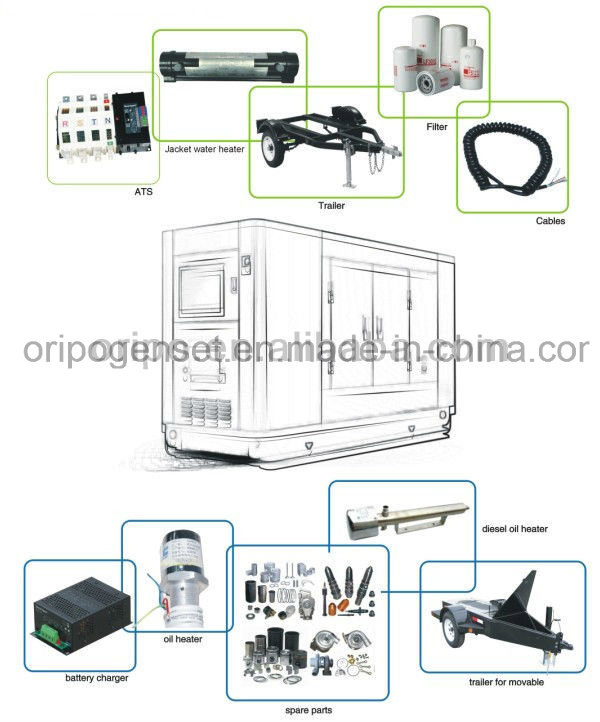

OPTIONAL ACCESSORIES/SPARE PARTS:

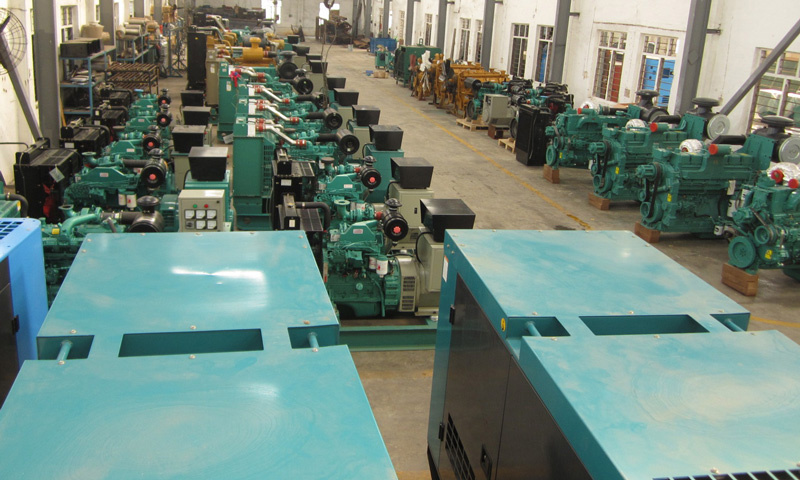

-Sound and water proof enclosure -Trailer/Movable power station -Battery charger -Jacket water heater -Oil heater -Diesel oil heater -Automatic transfer switches(ATS) & paralleling system -Extra fuel tank -Fuel water separator Location: Located in Foshan City , quite near guangzhou, welcome to our factory to check the products and the quality.
1.From Guangzhou Baiyun International airport to Oripo: a.It takes about 1 hour by car/taxi,it is about 58 kilometer; b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.
2.From Canton fair complex to Oripo: a. It takes about 30 minutes by car / taxi, it is about 32 kilometer; b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.
Our service quality assurance
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service Contact Details: FOSHAN ORIPO POWER ENGINEERING CO.,LTD Contact person:Janet Mobile:+86-18923200408 Fax:0757-28791208 Web:en.oripo.com
