North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Basic Diesel Generator
Product Description
Leading and most widely used diesel generator sets in China market.
Guaranteed for 1 year.
1- 1 Set of accessory for free( air filter, diesel filter, lubricating oil filter, vee belt, cylinder head gasket, air valve spring, wrench for air valve spring, inject nozzle)
Spare parts catalogue: 1 PC Instruction and maintenance book: 1 PC
2- Standard collocation: Electric system, alternator, steel structure base plate, fan and water tank of cooling system, flange connector, set shock absorber, air filter, diesel filter, lubricating oil filter, control panel, MCCB air conservation switch, high efficiency muffer, 12V/24 starting motor and charging motor.
3- Operation display: Voltage meter, three-phase load current and frequency display, Water temperature, oil pressure display, Fuel level, fuel temperature display.
4- Delivery time--about 15 days.

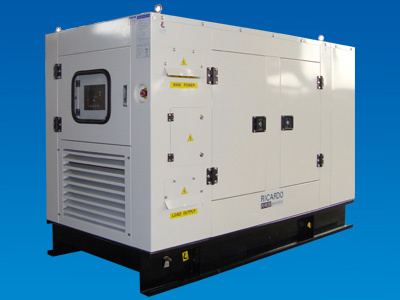

Genset model
TL---20S
Type
Silent type
Genset output power range
20KW
Rated voltage
400/230v
Rated Current
14.4A-270A
Frequency
50HZ / 60HZ
Power factor
0.8
Rated speed
1500rpm / 1800rpm
Output type
AC three phase, 4 wire
Alternator Type
brushless
Frequency
< 3%
Frequency at stable state:
< 0.5%
Frequency deviation at instantaneous state
≤ +10%
Frequency return time
≤ 3s
Voltage deviation at stable state
≤ ± 1%
Voltage deviation at instantaneous state
≤ +20%
Voltage return time
≤ 4s
Voltage modulation
≤ 0.3%
Size
1850x770x1500mm
Gross Weight
about 800 kg
Detail Specifications of Engine.
Model
K4100D
Cooling Method
Water-cooled
Rated Power
30.1KW (33KW--1800rpm)
Rated Speed
1500rpm
Governor system
Mechanical ( or electical )
Aspiration mode
Natural aspirated
Starting method
12/24V DC electric starting
Stroke
4 stroke
NO. of cylinders
4
FIP type
Inline
Displacement
3.61L
Fuel consumption
≤ 258.4 g/kw. h
BorexStroke
100x115mm
Compression Ratio
1:19
Recommended Lub oil change period
250hours
Type of lub oil filter
Spin on
Type of air filter
Dry
SIZE
1070X640X1070mm
Weight
340kg
Specifications of alternator
Brand
Shanghai qianghui
Regulator
AVR automatic voltage regulating
Excite type
pret or shunt
Connecting type
3PH star, 3PH-DELTA
Steady frequency change
0-5%
No load voltage
≥ 95%-105
Steady voltage
≤ ± 1
Insulation degree
H degree
Exclosure degree
IP23
Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.
For the generating set and automatic water pump set, we select Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.
For the generating set and automatic water pump set, we select international diesel engines such as CUMMINS, DEUTZ, 135, WEICHAI series engines to collocate MARATHON and STAMFORD and other international brand alternators. With reasonable design, advanced craft, low noise, weak librations, quick startup and creditable capability, our products have been widely used in such fields as industry, mine, bank, hospital, ship, post office and telecommunications, oil, high-rise and field construction.
For the diesel engine, the main product series is 295, 2100, 495, 4100, 4102, ZR4105 and ZR6105 series, with the low fuel consuption, the strong reliability. These engines are easy to operate, convenient to repair. These kinds of products are suitable to be used to the power set, the medium tractor, the project machinery, the air compressor and so on.
Weifang Dilate diesel engine Co., Ltd owning the domestic advanced workshop and production line, first-class assembly line, well-equipped testing platform; We also have the abundant technical teams, and have forced the international department, technical department, project department and other specific departments which make the production more specialized and excellent. Now we have solden our products to more than twenty countries, and have been set up the long term business with more than ten countries.
Weifang Dilate diesel engine Co., Ltd also provides excellent sales service and techinical support while provide the high quanlity product. If you are interested in any series of our products, please feel free to contact us. Hope we have chance to cooperate and let's open a bright future based on the mutual benefit!
