North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size (Length X Width X Height):
2260mmx1050mmx2700mm
Type:
Elevation Type
Bulb Type:
LED
Operating Voltage:
220-240V
Usage:
Rental, Construction & Project
Certification:
ISO
Power Source:
Diesel
Battery Type:
Maintenance Free
Lamp Power:
4*300 LED
IP Rating:
IP44
Product Description

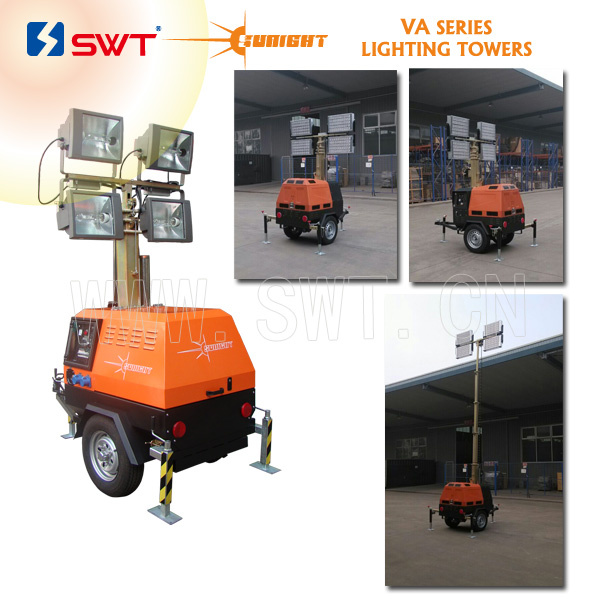

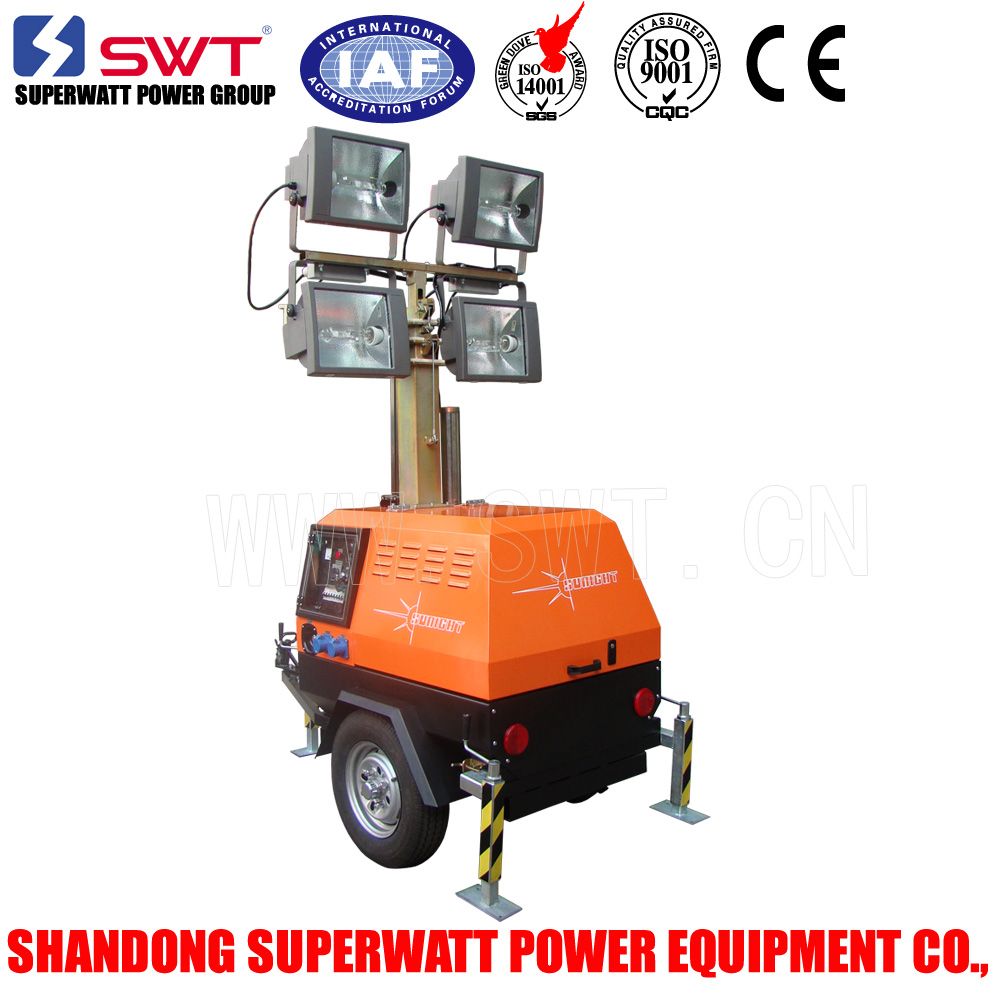

SUNIGHT VA light tower is the simple and small-sized type easy for operating & convenient for transporting with vertical telescopic mast, manually operated, 4*300W high-efficiency LED floodlights, 3 manual legs stable in 8 grade wind, Large double wall fuel tank (38L) for long operation (84H).
The VA series has a very compact design for convenient storage and transportation. An excellent choice for the rental market due to its competitive price and easy operation.
Basic Model
4VA1200
Generator set type with wattage (50/60Hz)
D2100/XD2300
D2700/XD3200
Dimensions
Length
2260mm (7'5")
Width
1050mm (3'5")
Height
2700mm (8'10")
Full extending Height (m/feet)
7m (23')
Gross weight
445kg(980 lb)
Engine
Engine model
KD225 (KOHLER)
178F (CD)
Speed(rpm)
3000/3600
Number of cylinders
1
Engine characters
4 cycles, Air-cooled diesel
Combustion System
Direct injection
Engine aspiration
Naturally aspirated
Emission level (50/60Hz)
Regular
Alternator
Standard configuration
SPARKS
Frequency (HZ)
50/60
Rating voltage ( 50/60Hz)
230 / 240-120 VAC
Alternator insulation
Class H
Alternator protection grade
IP23
Mast & Lights
Type of Lights
LED
Light's fixture
Rectagle
Luminous flux
39000 LM/light
Number & power of lights
4×300W
Number of mast sections
5
Mast extension
Manually
Mast rotation
Not available
Light tilt
Manually
Trailer
Trailer suspension & axle with brakes
Single torsion axle without brake
Tow bar
A style tow frame with supporting jack
Stabilizing legs & number
2 pcs extendable bar with manually retractable jacks
Wheel's rim size & tires
13" rim with regular tires
Tow adapter
2" ball adapter
Tail lights
Tail reflector
Max towing speed
100km/h ( 62 mph)
Additional Features
Fuel tank Type
Punch forming steel sheet
Fuel tank capacity
38 liters (10 US gallons)
Operating hours with full fuel
84 hours
Wires & electric components
Regular
Generator starting type or controler
Key starting
Generator canopy
Rotational moulding plastic trunk with steel sheet base
Power outlet sockets
Don't supply for standard configuration, just for option
Tool box with the maintenance tools
Max. against wind when fully extended
20 m/s (45 mph)
Acoustic pressure
77dB(A) at 7 meters away
Standard colour
SWT orange trunk, black or galvanized all of the steel components
Max. # of units loading in 20' container (Some components would be detached)
18
We have been an outstanding manufacturer of Diesel Generator Sets in domestic. We have gathered many years researching experience of Mobile Lighting Tower, and became a technology leader of this kind products in the world. We invested to develop Vehicle Power Station and Gas Generator Sets in recent years, to achieve good reputation with excellent quality and performance.
Our brand "SWT" was established in 1993. After continued developing for more than20 years, we have been an outstanding manufacturer of Diesel Generator Sets in domestic. We have gathered more than a decade of researching experience of Mobile Lighting Tower, and became a technology leader of this kind products in the world. We invested to develop Vehicle Power Station and Gas Generator Sets in recent years, to achieve good reputation with excellent quality and performance.

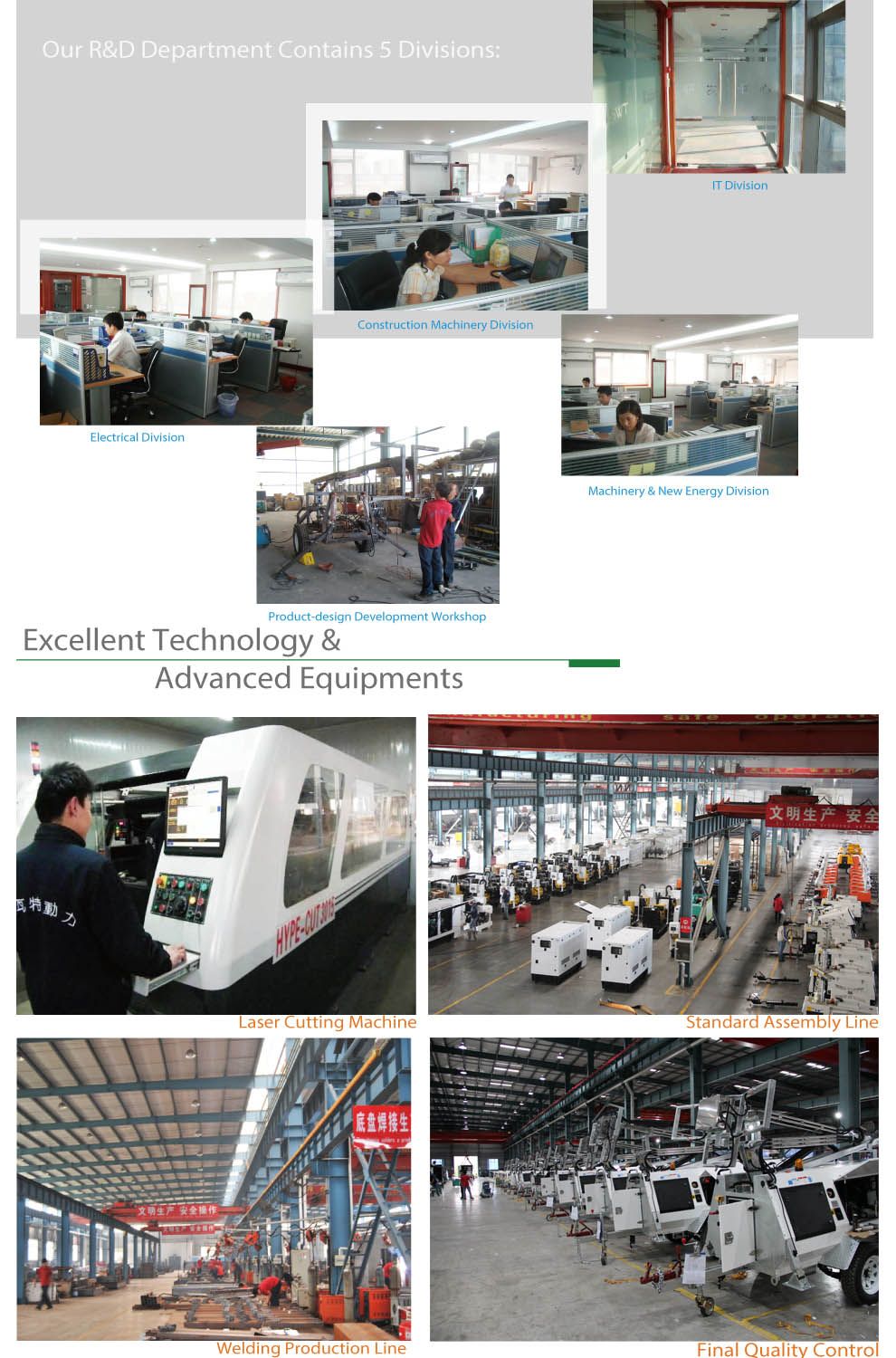

There are sheet metal shop, assembly shop and big capacity high & middle voltage testing room in our manufacturing plant. We own advanced sheet metal equipment, such as Germany CNC laser cutting machine, import CNC punching machine, CNC bending machine, CNC tube bending machine, CNC lathe, heavy CNC shearing machine and CNC plate bending machine, to guarantee that we manufacture high quality products. Especially our self-designed recycling sandblasting room is unique in the industry.
Independent processing and assembling production lines with different function, advanced and reasonable production process, strict quality management system, trained and experienced professional and technical workers, all of these are SWT's treasure, to realize the annual output 7000sets various intelligent, green power units, as a leader in the domestic.
SWT's products have been sold to more than 60 areas or countries in Southeast Asia, Australia, Middle East, Africa, America and Europe, and we have cooperated with more than 40 domestic distributors and set up perfect marketing and service network all over the country. SWT established good relationship with Vanke, China Huaneng Group, Peking Union Medical College Hospital, China Unicom, Zijin Mining Group, and many other large enterprises, Radio and television systems, health systems, banking and finance system, railway system and etc, all are good foundation for our future development.
