Color:
at Buyer's Option
Type:
Self-Starting Diesel Generator
Stroke:
Four Stroke
Output Type:
AC Single Phase
Installation Method:
Fixd/Movable
Cooling Method:
IC411
Product Description
STW SERIES single phase A.Csychronous generator is our new product whit brushless that adopt high strength cast iron. Either gasoline or diesel one can act as a moveable/fixd power.its features as follows: 1,advanced mechanical, high electrical insulation properties, superior manufacturing processes, easy installation and maintenance, compact structure and high reliability.
2,Thanks to the cylindrical steel base, more solid, more reliable and more innovative structures can be achieved.
3,Depending on the installation requirements, you can choose single bearing series or double bearing one.
MAIN PERFORMANCE INDEX
Housing mertail
cast iron
pole
2
Protection Class
IP21
Insulation Class
F
Bearing
SKF/NSK/Chinese
Frequency
50HZ
Opearing condition
Ambiment temperature
-15ºC-40ºC
Altitude
not exceed 1000m
Rated voltaged
230v(at buyer's option)
Rated frequency
50HZ(at buyer's options)
Cooling methods
IC411
Duty
S1
TECHNICAL DATA
MODEL
FRAME NO
RATED POWER
RATED VOLT
RATED CURRENT
POWER FACTOR
FREQ.
RATED SPEED
Power-Matching internal Combusion Engine
KW
KVA
V
A
COSΦ
HZ
r/min
STW-1200
100
1.2
1.2
230
5.2
1
50
3000
≥1.7
STW-1800
1.8
1.8
6.9
≥2.3
STW-2200
2.2
2.2
9.5
≥3.1
STW-2800
2.8
2.8
12
≥4
GENERATOR OVERALL AND MOUNTING DIMENSION
TYPE
Mounting Dimension
Overall Dimension
H
A
B
C
E
D
AB
h
L
STW-1200
100
160
120
70
45
95
205
198
335
STW-1800
STW-2200
STW-2800
Factory Brief:

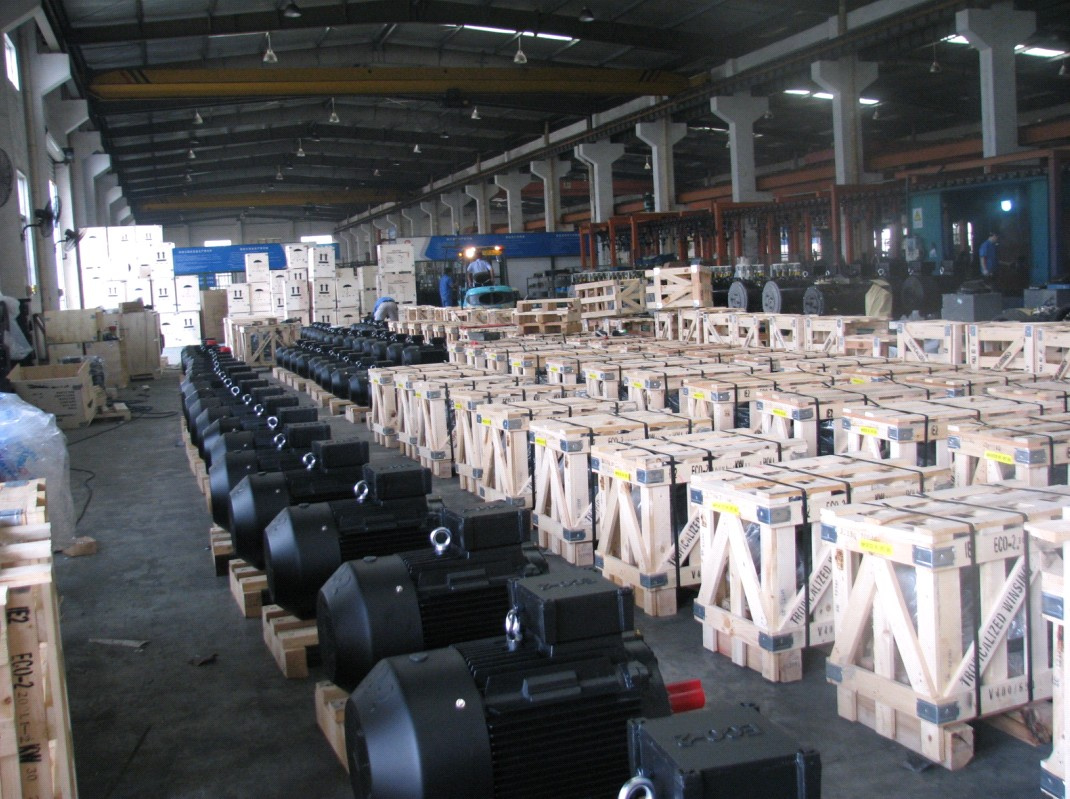

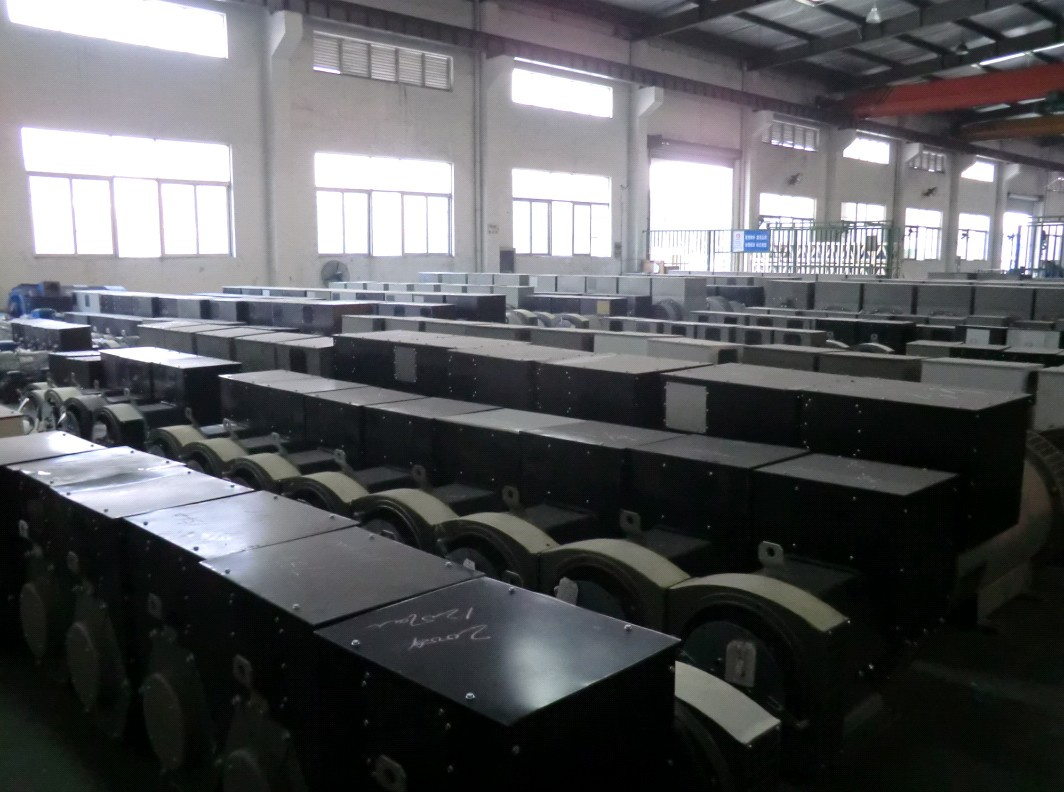

Work-Shop:
Kaigong Electric (Suzhou) Co., Ltd. professionally manufactures electric motors, alternators, generating sets and pumps, including Y/Y2/CDF/SDF series of normal motors and IE2, EFF2, EFF1 series of high efficiency motors, and the capacity is up to 350, 000 units (1, 500, 000kW) one year. For generators we manufacture TWG/TWGII series brushless generators, ST/STC alternators etc. It is a Sino-British joint venture enterprise, locating in Suzhou of China, with experiences of electrical machine manufacture for over 50 years. The Chinese shareholder is a subsidiary company of Kaijieli Group and the leading enterprise among the Group's producers in manufacturing sector.
We are top ten of the machinery industry, our workshops are distributed in Suzhou, Kunming and Fuan, which cover the areas of over 100, 000 square meters. We possesses the advanced producing and testing equipments, such as CNC vertical lathes, CNC boring machines, electrical warming equipments at medium frequency, VPI equipments, automatic spray-painting line and testing system, as well as the CAD system for design.
Our Kaijieli Brand motors received 9 national patents and certificates of "CCC", "CE", "TUV" and "GS" successively.
Our company always keeps the principle of "high quality and low cost". Its products are exported to more than 80 countries and regions including Europe, American, Asia, Australia and Africa and the turnover exceeds 80 million US Dollar. Our "Kaijieli" brand has been registered in 120 countries and regions till now. Thanks to the excellent quality, Kaijieli products are gradually recognized and used as the top-priority products at home and abroad.
We warmly welcome you to join us as the allies and partners, as Kaijieli not only belongs to us, but also to you; Not only to China, but also to the whole world.
