North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application Room Size:
2.5-5 Cubic Meter
Voltage:
220/380V
Power:
4kw
Control Type:
Outside Control
Size:
50*16*42cm
Product Description

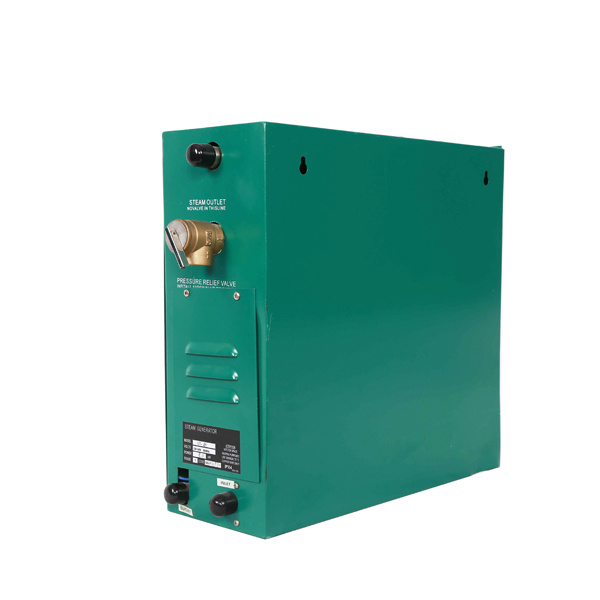

Steam powered electric steam generator
1. Our Steam powered electric steam generator advantages A: Automatic water discharge; B: Overheat securitivty device; C: 2 heating tube. Firstly 2 heating tube work together, when the tempereture over arrice 50 temperature, 1 tube stop working. That can greatly protect the geberator damage because of high temperature)
2. Quick details of steam powered electric steam generator 1) 79years factory 2) OEM 3) stainless steel water box more efficence 4) inlet/outlet diameter: 2.2mm 5) 4-18kw for choice
3. steam powered electric steam generator specificaiton and pictures
Model
Power (kw)
Voltage (V)
Current (A)
Phase(N-)
Room size
Wire (NXmm )
Control Type
HA-40
4
220/380
18.2/6.1
1/3
2.5-5
3*4/5*1.5
Control inside/ outside
HA-60
6
220/380
27.1/9.1
1/3
6-7
3*6/5*2.5
HA-80
8
220/380
34.1/11.4
1/3
9-10
3*6/5*2.5
HA-90
9
220/380
41/13.7
1/3
10-12
3*10/5*4
HA-120
12
220/380
47.7/15.9
1/3
12-15
3*10/5*4
HA-180
18
220/380
54.5/18.2
1/3
14-17
4. steam powered electric steam generator functions 1) Functions: The control works with the steam generator to maintain a perfect level of steam and temperature in the room, while using the least amount of energy, reaching a result of soft and comfortable environment.
2) Material: Super galum board, stailess steel tank, copper inlet and outlet, copper handle with zinc
3) 4.5 - 12kW power options, in-shower thermostatic control, stainless steel tank, long-life elements, automatic water feed, dual low-water protection, pressure release valve. Temperature control unit available.
4) Controllers: With the same tank, elements and steam outlet as the N-series, this generator is reliable and efficient. To operate, switch on using the in-shower pneumatic button, then, when you are hot enough, simply switch it off again, after 25 minutes, a safety timer will automatically switch the generator off. Available in four power options.
5. Factory introductions The factory is located in Baiyun district of Guangzhou, about 5 minutes to Guangzhou Airport by car. Established in 2004 and now occupying an area of about 2500 square meters, more than 50 workers and three production lines. Under the systematically management and strict quality control, we have earned good reputation among the industry. We provide clients with services as product sourcing, design and engineering, OEM manufacturing, quality control, shipment inspection.
GUANG ZHOU FENLIN SANGNA SHEBEI Co., Ltd., established in 2004, professional in producing and selling sauna equipments, swimming pool equipments, SPA equipments and fountain equipments. etc.
Striving in creating, quality and service for these years, we have possessed our own brand, in the meantime, have developed our foreign market of around one hundred countries as well as developed a sales network covers most of the eastern big cities at home.
We Are professional Factory in making FOUNTAIN, FOUNTAIN ACCESSERISE, ect. Due to the good quality, timely renew style And good reputation, our products are popular to Europe, America, Middle East and Other countries, our sincere services and respecting customers is our service attitude, Welcome to our factory in Baiyun district, Guangzhou. We supply picking-up service.
Our Advantages:
Water Fountain From Fenlin--Brief Advantage Of Our Factory
1) 10 years Professional Manufacturing Experience
2) Specialize In Design, Production, Installation And Debugging Together.
3) We Have Our Own Production Base, Producing Fountain Nozzles, LED Lamps, Control Cabinet Lamps.
4) We Have Attained TUV certification, CE, SGS Certificate
