Inner Diameter:
150 Mm
Outer Diameter:
270 Mm
Breadth:
96 Mm
Weight:
26.5 Kg
Dynamic Load:
937 N
Static Load:
1460 N
Rolling Body:
Roller Bearings
The Number Of Rows:
Double
Outer Dimension:
Large (',200-430mm)
Load Direction:
Radial Bearing
Material:
Bearing Steel
Separated:
Unseparated
Product Description

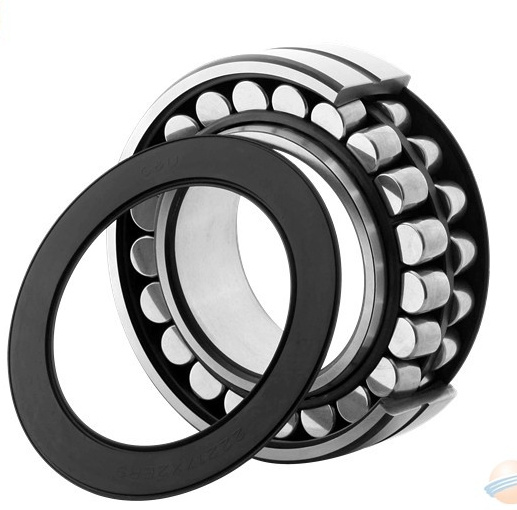

Spherical roller bearings
There are spherical rollers between spherical raceway outer ring and double groove inner ring. According to the different internal structure, self-aligning roller bearing can be divided into R, RH, RHA and SR four types. Outer ring raceway arc center and bearing center are consistent, with self-aligning performance. Can bear radial load and two-way axial load, especially large radial load capacity, in particular, it can apply to withstand heavy load and impact load. Cone bearing can apply to the shaft handling by using fasteners or withdrawal. Cone hole has the following two tapers: 1: 30 (auxiliary code: K30)...Apply to 240, 241 series 1: 12 (auxiliary code: K)...Apply to other series Oil hole, oil tank can be opened on the both outer and inner ring, while positioning pin hole can only be opened on the outer ring.
Main use: Papermaking machinery, speed reducer, railway vehicle axle, rolling mill gear box, roller mill, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-aligning bearings.
Bearing designations
Boundary dimensions(mm)
Basic load rating(KN)
Limiting speed(R/MIN)
Weight (KG)
New standard
Old standard
d
D
B
Dynamic Cr
Static Cor
Lubrication
Grease
Oil
22230CA/W33
22230CAK/W33
53530K
153530K
150
270
73
508
875
950
1300
18.5
22234CA/W33
22234CAK
53534K
153534
170
310
86
720
1300
850
1100
29
22238CA/W33
22238CAK/W33
53538K
153538K
190
340
92
818
1510
750
950
35.5
22244/W33
22244K
3544K
113544
220
400
108
1170
2220
630
800
61.5
22252CA/W33
22252CAK
53552K
150552
260
480
130
2300
3300
850
1000
110
22260/W33
22260K/W33
3560K
113560K
300
540
140
1840
3450
500
630
145
22332CA/W33
2233CAK
53632K
153632
160
340
114
1040
1770
950
1300
50
22338CA/W33
22338CAK/W33
53638K
153638K
190
400
132
1390
2530
850
1100
80
22348K/W33
22348CAK/W33
113648
153648K
240
500
155
1730
3250
670
850
155
22372
22372CA
3672
53672
360
750
224
4260
9000
400
500
466.1
22360
22380CA
3680
53680
400
820
243
4530
9290
240
320
644
23030CA
23030CAK
3053130
3153130
150
225
56
438
750
1700
2200
8
23034CAK/W33
23034CA/W33
3153134
3023134K
170
260
67
608
1010
1600
2000
13
23036
23036CA
3003136
3053136
180
280
74
710
1260
1400
1800
17
23038
23038CA
3003138
3003138
190
290
75
745
1340
1300
1700
18
23040
23040/W33
3003140
3003140K
200
310
82
880
1530
1200
1600
230
23044
23044CA
3003144
3053144
220
340
90
1050
1660
1100
1500
30.5
23048
23048CA
3003148
3053148
240
360
92
1130
2160
1000
1400
33.5
23056
23056CA
3003156
3053156
280
420
106
1520
2580
850
1100
52.5
23060
23060CA
3003160
3053160
300
460
118
1830
3450
800
1000
71.5
23064
23064CA
3003164
3053164
320
480
121
1960
3800
800
1000
78
23072
23072CA
3003172
3053172
360
540
134
2390
4700
360
450
115
23080
23080CA
3003180
3053180
400
600
148
2660
5110
300
380
148
23088
23088CA
3003188
3053188
440
650
157
2170
5740
260
340
186
23092
23092CA
3003182
3053192
460
680
163
2460
6670
220
300
223
230/500
230/500CA
30031/500
30531/500
500
720
167
2700
7180
190
260
262
230/560
230/560CA
30031/560
30531/560
560
820
195
3490
9950
160
200
361.5
230/600
230/300CA
30031/600
30531/600
600
870
200
3760
10400
130
170
417
230/630
230/630CA
30031/630
30531/630
630
920
212
4170
11500
120
160
513
230/1180
230/1180CA
30031/1180
30031/1180
1180
1660
355
14600
19100
80
100
2460
23224
23224CA
3003224
3003224
120
215
76
602
940
1500
1900
16.2
23228/W33
23228CA/W33
3003228K
3003228K
140
250
88
799
1250
1200
1600
18.6
23230
23230CA
3003230
3003230
150
270
96
937
1460
1100
1500
26.5
23236
23236CA
3003236
3003236
180
320
112
1280
2170
950
1300
36.5
23238
23238CA
3003238
3003238
190
340
120
1450
2490
850
1100
47.6
23240
23240CA
3003240
3003240
200
360
128
1610
2790
850
1100
57.2
23248
23248CA
3003248
3003248
240
440
160
2490
4490
670
850
110
23252CA/W33
23252CAK/W33
3003252K
3003252K
260
480
174
2780
4700
630
800
141
23944/W33
23944CA/W33
3053944K
3053944K
220
300
60
546
1080
1500
1900
13
