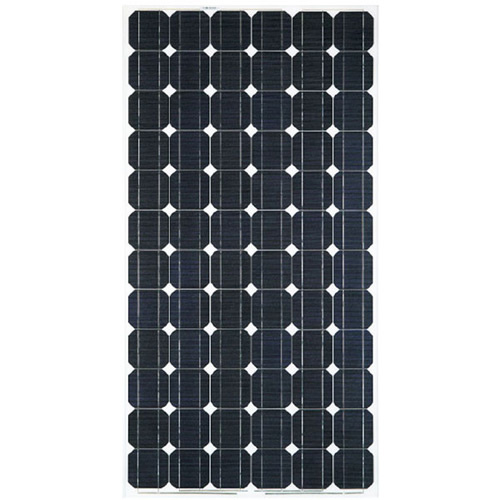

| Prod Model: |
GP/M/36/90W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Our solar modules have these characteristics, such as high-stability, high-reliability and high-efficiency, exquisite workmanship and clear appearance.
|
Parameters |
85W |
90W |
95W |
|
Peak power Pm (W) |
85± 5% |
90± 5% |
95± 5% |
|
Open circuit voltage Voc (V) |
21.96 |
22.57 |
23.18 |
|
Max. power voltage Vmp (V) |
18.0 |
18.5 |
19.0 |
|
Max. power current Imp (A) |
4.72 |
4.86 |
5.0 |
|
Short circuit current Isc (A) |
5.10 |
5.25 |
5.40 |
|
Dimensions (L*W*T) |
1200*553*35 |
|
Weigh (kg) |
7.5 |
|
Max. over-current (A) |
10 |
|
Max. system voltage (V) |
1000V DC |
|
Application Class |
Class A |
|
Mono crystalline silicon solar cell |
125*125*0.19mm |
|
No. of cells and connections |
36 series |
|
No. of bypass diodes |
3 |
|
Bypass diode rating (A) |
15 |
|
Bypass diode max. junction temperature (º C) |
200 |
|
Bypass diode thermal resistance (º C/W) |
3.0 |
|
STC |
Irradiance: 1000W/m 2, Cell temperature: 25º C, AM: 1.5 |
We guaranteed products at a reasonable price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
