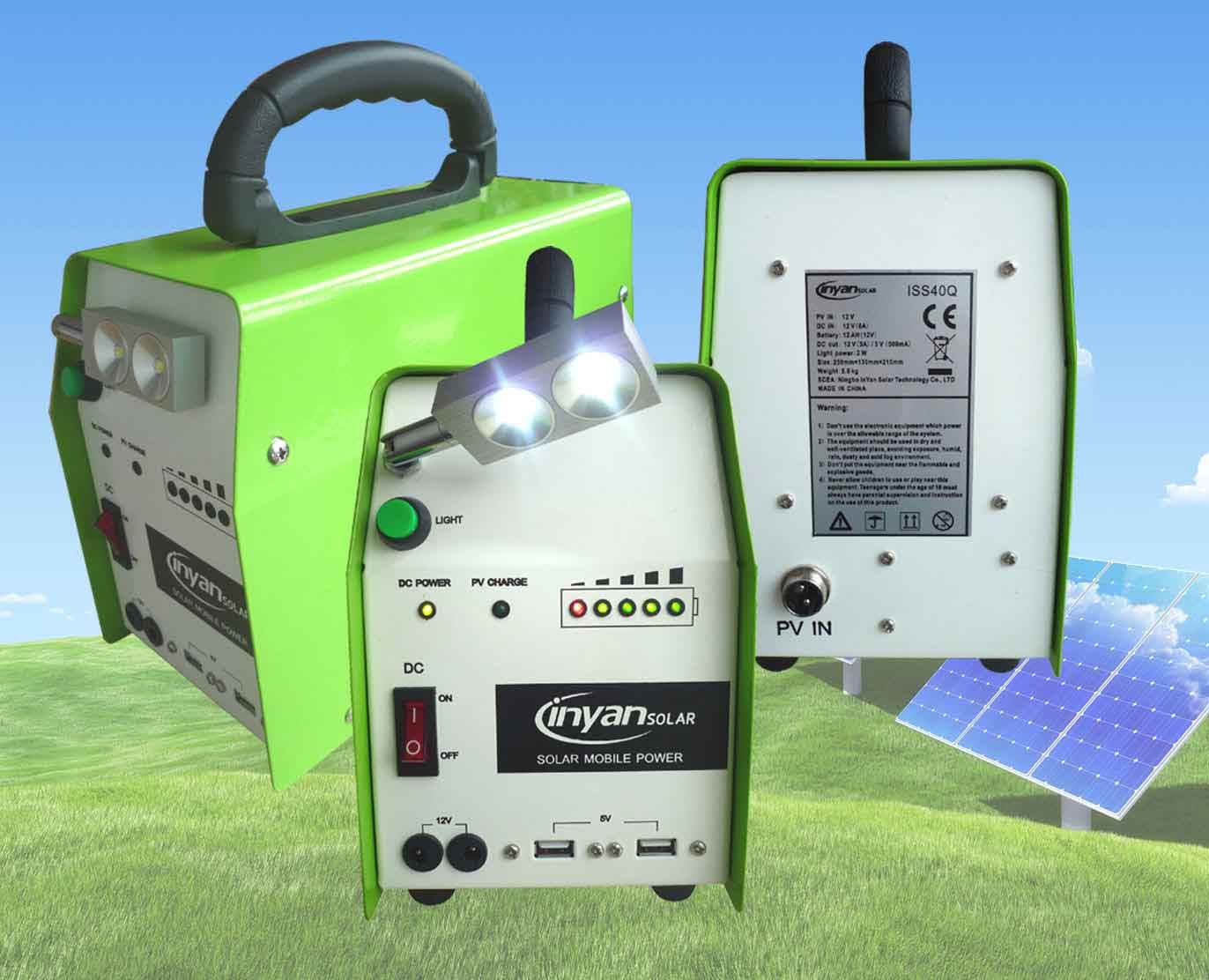

Portable PV power system is one system which is special designed to meet customers' demand of electricity when they go to outside. It is featured with non pollution, compact configuration, small in size, low noise, easy to install and convenient maintenance due to modular design.
Main customer: Travel enthusiasts; Organizers of team-traveling actions;
1. Built-in charge charge controller and battery
2. Small in size, light in weight and long in continuous power supply
3. Large handle design & free and relaxed in movement
4. Up to 4 outdputs to satisfied the demand of travel, camp and disaster relief.
5. Metal shell to prevent shock and fell
6. Two DC12V outputs and two 5V USB outputs
7. 2W high-lever LED configuration for lighting at anytime
Model |
ISS10Q |
ISS20Q |
ISS20Q/A |
ISS40Q |
System Specification |
Rated Output Power |
10W |
20W |
20W |
40W |
Solar Panel Power |
18V 10W |
18V 20W |
18V 20W |
18V 40W |
Solar Panel Charging Time |
12 hours effective sunlight |
5 hours
effective sunlight |
9 hours
effective sunlight |
4.5 hours
effective sunlight |
AC Output |
No |
DC Output |
12V terminal 2pcs (3AH) / 5V USB terminals 2 pcs (500mA) |
Overload Protection |
Yes |
Yes |
Yes |
Yes |
Over Voltage Protection |
Yes |
Yes |
Yes |
Yes |
Overheat Protection |
Yes |
Yes |
Yes |
Yes |
Short-circuit Protection |
Yes |
Yes |
Yes |
Yes |
BatteryPower Indicator |
Yes |
Yes |
Yes |
Yes |
LED Light (Adjustable) |
2W |
2W |
2W |
2W |
Accessories |
12V exterminal light connecting line ( 4M ) |
Certificate |
CE & RoHS |
Mechanical Data: |
Dimensions of System Box(mm) |
L250*W130*H215 |
L250*W130*H215 |
L250*W130*H215 |
L250*W130*H215 |
Net Weight of System Box(kg) |
4.4 |
4.4 |
5.6 |
5.6 |
Appearance Color |
White + Green |
White + Green |
White + Green |
White + Green |
Dimensions of Solar Panel (mm) |
L300*W280*H20 |
L530*W290*H30 |
L530*W290*H30 |
L540*W525*H30 |
Net Weight of Solar Panel (kg) |
1.2 |
2.5 |
2.5 |
3.9 |
Dimensions of Battery (mm) |
L150*W65*H95 |
L150*W65*H95 (T |
L150*W98*H98(T |
L150*W98*H98 |
Net Weight of Battery (kg) |
2.5 |
2.5 |
3.5 |
3.5 |
Ningbo Inyan Solar Technology Co., Ltd. is a professional manufactory specialized in portable PV power system, uninterrupted (off-gird) PV power system, on-grid PV inverter, off-grid PV inverter, distributed on-grid micro inverter.
Products have obtained CE, TUV, VDE, UL, AS and other international authoritative certifications.
Our products are sold all over the world. We have established sound marketing service network in Europe, America, Australia, the Middle East and Africa, a warm and dedicated professional sales and technical service team are Champions of the Earth interested in low-carbon life, providing clean energy and photovoltaic systems comprehensive solutions.
