Prod Model: |
SML05 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inrush Current: |
5A |
Rated Voltage: |
12/24V |
Packing Unit: |
PCS |
Warranty: |
2 Years |
System: |
Off-Grid system |
Product Description

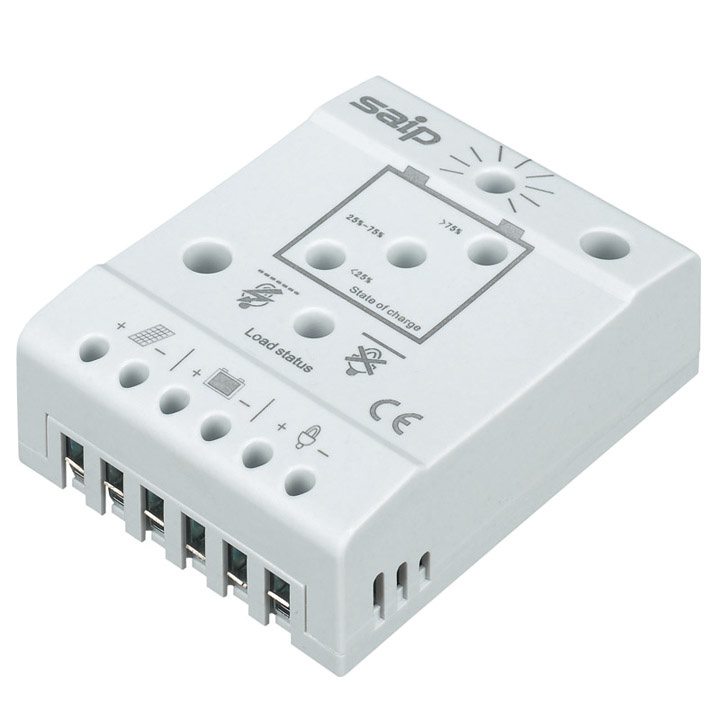

Solar Intelligent Controller Regulators (SML05)
1. Battery State-of-Charge display with 3 LEDs
2. Acoustic load disconnect pre-warning
3. PWM-regulation (series type) Boost
4. Equalize and Float charging, also for VRLA
5. Automatic 12/24 Volt detection
6. Integrated temperature compensation
7. Large terminals (up to 16mm2 wire size)
8. SOC and voltage controlled LVD
9. Fully electronically protected
The SML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost-equalization- float) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function.
The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
SML25 |
Nominalvoltage: |
12/24V automatic recognition |
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
Boost voltage |
14.5V/29.0V |
Equalization voltage |
14.8V/29.6V |
Equal ization voltage |
13.7/27.4V |
Deep discharge protection |
11.4-11.9V/22.8-23.8V control led by statc of charge 11.0/22.0V control led by voltage |
Load reconnect voltag |
12.8/25.6V |
Temperature compensation |
-4mV/cel l*K |
Self consumption |
<4mA |
Max. wire size |
16mm ²(AWG#6) |
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
Weight |
220g |
Temperature range |
-20to+50°C |
Type of protection |
IP22 |
