Small Water Turbine for Hydro Power Plant / Mini Hydro Turbine

Name: Small Water Turbine for Hydro Power Plant / Mini Hydro Turbine
Brand: aboutgenerator.com
SKU: 688436842
Availability: InStock
Rating: 4.3 (30 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Fuchun Industry Development Co., Ltd. Shenzhen

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

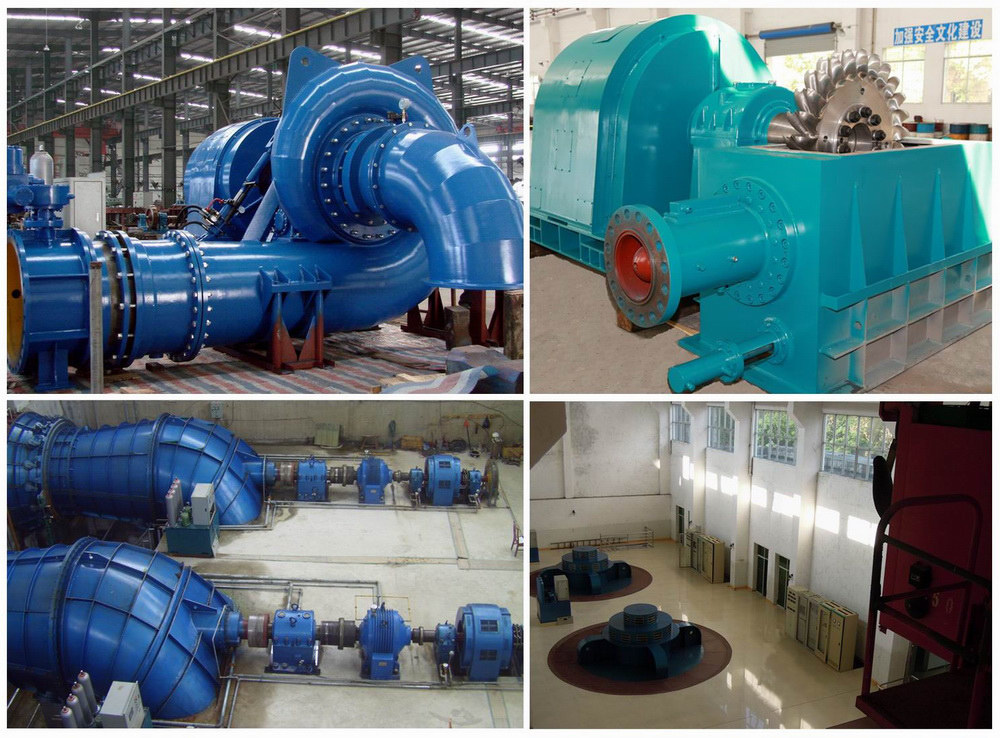

Turbine Type:	Francis / Pelton / Kaplan / Tubular / Turgo
Shaft Type:	Horizontal / Vertical
Material:	Stainless Steel

Product Description

small water turbine for hydro power plant / mini hydro turbine

Quick Detail:
Output Power:100Kw to 50Mw
Rate Head: 2m-1200m
Type: Francis, Pelton, Turgo, Kaplan, Tubular

Place of Origin: China (Mainland)

Rated Head: 2~1200m

Rated power: 50KW~50MW

Frequency: 50HZ or 60HZ

Voltage: 380V,400V,440V,3.3KV,6.3KV,6.6KV,10.5KV,ect.

Material: stainless steel

Description:

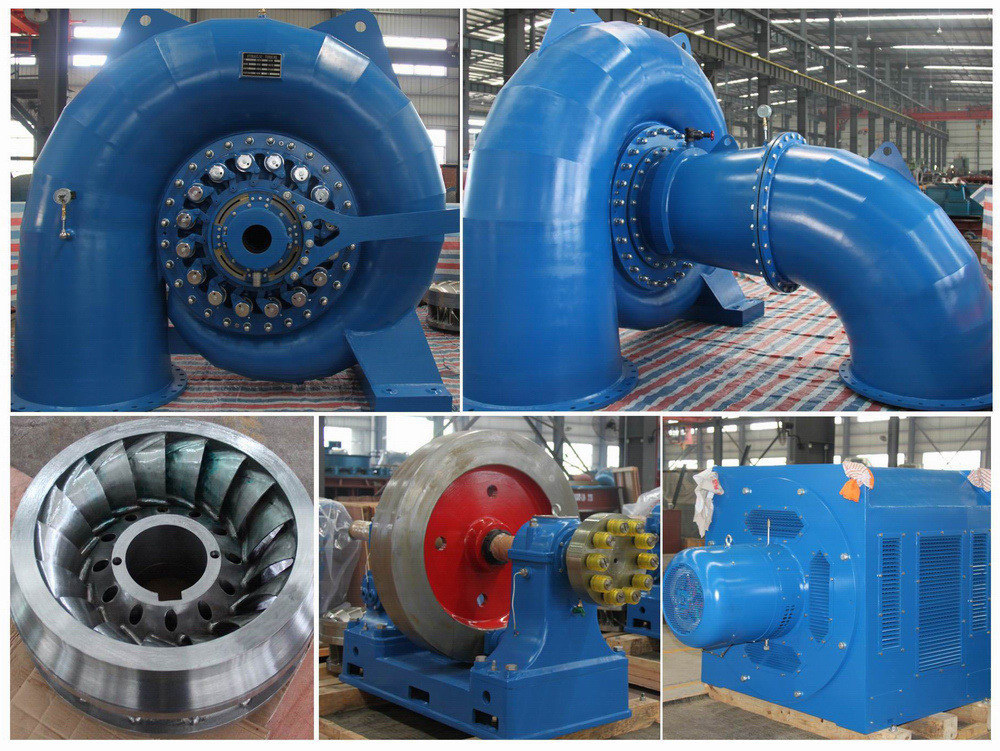

1.Francis
The Francis turbine are mostly suitable for hydro power station with medium or high head. The francis turbine we supply are compact in structure,reasonable in design,convenient in operation and maintenance and excellent in efficency. They are both vertical and horizontal shaft arrangement and can be vastly selected by the hydraulic power station.

2.Pelton
Pelton turbine also called a free-jet turbine or Pelton wheel, a type of impulse turbine, named after L. A. Pelton who invented it in 1880. Water passes through nozzles and strikes spoon-shaped buckets or cups arranged on the periphery of a runner, which causes the runner to rotate, producing mechanical energy. The runner is fixed on a shaft, and the rotational motion of the turbine is transmitted by the shaft to a generator.
The impulse type turbines made by Fuchun are ranging from 80 to 1,000m in water head,200kW to 20MW in capacity and 0.55 to 2.3 in runner diameter. Theirs shaft arrangements are either vertical or horizontal and they may have single nozzle, twin or multi-nozzles.

3.Kaplan

Kaplan turbine also known as axial flow Turbine is developed in 1913 by the Austrian professor Kaplan.Its invention allowed efficient power production in low-head applications that was not possible with Francis turbines.The feature of Kaplan turbine is the water flow passes through the runner axially.

Kaplan turbines are widely used throughout the world for electrical power production. They cover the lowest head hydro sites and are especially suited for high flow conditions.

4.Tubular
The tubular turbines are the best selection for exploitation of tidal power and hydraulic power with extremely low heads and extremely large flow rates. They have large discharge,high specific and high efficiency, and need less excavation.They have been classified into Bulb, Pit, Siphon and S" types in the light of their structural types.

Our service
Fuchun Industry Development Co., ltd Shenzhe is an experienced manufacture and engineering Company in small scale hydro power equipment ( 50Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services.
We provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.
1.Water Turbine Generator Unit Design & SUPPLY
2.Hydropower equipment supply
3.Feasibility study of hydropower project
4.Manufacture
5.Installation & Supervision
6.Commissioning and Training service
7. Hydro power plant rehabilitant
8. Hydro power plant spares supply
9.Services

Reference List of Some Export Projects
No.	Country and Power Station Exported to	Technical Parameters	Type	Qty	Date of contract
1	HPP2 Guatemala	Rated head:305m Rated flow:0.385m³/s Frequency:60Hz Outgoing line voltage:480V	CJA475-W-80/2×6.5 SFW1000-8/1180	1	2013.06
2	Pakistan	Type:HL855a Runner diameter:1750mm	27Mw spare runners	1	2013.06
3	UK	Rated head:73.8m Rated flow:0.1325m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-55/1×7	1	2013.03
4	turkey	Rated head:203m Rated flow:0.312m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-80/1×8.5 SFW500-8/990	1	2013.05
5	Sri Lanka	Rated head:88m Rated flow:1.41m³/s Frequency:50Hz Outgoing line voltage:400V	HLA550-WJ-62 SFW1000-6/1180	1	2013.05
6	Congo	Rated head:210m Rated flow:0.423m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-80/1×9.5 SFW700-8/1180	1	2013.05
7	Ecuador	Rated head:925m Rated flow:0.26m³/s Frequency:60Hz Outgoing line voltage:4.16KV	CJC601-W-100/1×5 SFW1980-6/1430	2	2012.12
8	Philippines	Rated head:4m Rated flow:10m³/s Frequency:60Hz Outgoing line voltage:440V	ZD-LH-160 SF320-36/2150	1	2012.12
9	Guatemala	Rated head:128m Rated flow:0.6+0.3m³/s Frequency:60Hz Outgoing line voltage:440V	CJA475-W-80/2×9 SFW614-12/1180 CJA475-W-80/2×6.5 SFW302-12/990	2	2012.11
10	UK	Rated head:48.51m Rated flow:0.351m³/s Frequency:50Hz Outgoing line voltage:400V	XJA-W-55B/1x8.5	1	2012.11
11	UK	Rated head:47.48m Rated flow:0.38m³/s Frequency:50Hz Outgoing line voltage:400V	HL110-WJ-42	1	2012.11
12	UK	Rated head:25.44m Rated flow:0.332m³/s Frequency:50Hz Outgoing line voltage:400V	HLD54-WJ-50	1	2012.11
13	UK	Rated head:35.19m Rated flow:0.3m³/s Frequency:50Hz Outgoing line voltage:400V	HLD54-WJ-50	1	2012.11
14	UK	Rated head:37.82m Rated flow:0.291m³/s Frequency:50Hz Outgoing line voltage:400V	HLD54-WJ-50	1	2012.11
15	HPP1 Guatemala	Rated head:60m Rated flow:1.24m³/s Frequency:60Hz Outgoing line voltage:440V	HLA575c-WJ-56 SFW600-8/990	2	2012.8
16	UK	Rated head:58.1m Rated flow:0.169m³/s Frequency:50Hz Outgoing line voltage:400V	XJA-W-40/1×9 SFW100-8/590	1	2012.04
17	Ecuador	Rated head:38m Rated flow:1.64m³/s Frequency:60Hz Outgoing line voltage:440V	HL220-WJ-50 SFW470-8/990	1	2012.04
18	Italy	Rated head:43m Rated flow:0.59m³/s Frequency:50Hz Outgoing line voltage:400V	HL110-WJ-42 HLD54-WJ-40	2	2012.03
19	Pakistan	Type:HL855a Runner diameter:1750mm	27Mw spare runners	3	2011.11
20	ITALY	Rated head:134m Rated flow:0.25m³/s Frequency:50Hz Outgoing line voltage:400V	CJA475-W-80/2×6.5 SFW250-10/850	2	2011.06
21	Italy	Rated head:228m Rated flow:0.4m³/s Frequency:50Hz Outgoing line voltage:400V	CJA475-W-85/1×9.5 SFW715-8/1180	3	2011.05
22	UK	Rated head:61.8m Rated flow:0.221m³/s Frequency:50Hz Outgoing line voltage:400V	XJA-W-42/1×10 SFW100-8/590	1	2011.03
23	HPP1 Albania	Rated head:379.7m Rated flow:0.685m³/s Frequency:50Hz Outgoing line voltage:10.5KV	CJA475-W-105/2×7.5 SFW2150-8/1730	1	2010.12
24	HPP2 Albania	Rated head:461.6m Rated flow:0.786m³/s Frequency:50Hz Outgoing line voltage:10.5KV	CJA475-W-115/2×8 SFW3000-8/1730	1	2010.12
25	Italy	Rated head:29m Rated flow:3.2m³/s Frequency:50Hz Outgoing line voltage:400V	HLD41-WJ-42 HLD74-WJ-60	2	2010.12
26	Afghanistan	Rated head:36m Rated flow:1.67m³/s Frequency:50Hz Outgoing line voltage:400V	HL295-LJZ-50 SF500--6/850	5	2010.12
27	Pakistan	Rated head:206m Rated flow:0.89m³/s Frequency:50Hz Outgoing line voltage:6.6kV	CJA475-W-100/2×10 SFW1500-10/1430	2	2010.08
28	HPP1 Vietnam	Rated head:385m Rated flow:11.24m³/s Frequency:50Hz Outgoing line voltage:13.8kV	HL69-LJ-205 SF37500-10/3600	2	2010.02
29	Mozambique	Rated head:206.8m Rated flow:0.358m³/s Frequency:50Hz Outgoing line voltage:400V	CJA237-W-80/1×9 SFW570-8/990	1	2010.04
30	Pakistan	Rated head:47.5m Rated flow:2.62m³/s Frequency:50Hz Outgoing line voltage:6.6kV	HLA696-WJ-68 SFW1000-8/1180	3	2010.03
31	Italy	Rated head:35m Rated flow:4.25m³/s Frequency:50Hz	HLA696-WJ-82 SFW800-12/1430 HLJF2504-WJ-56 SFW400-8/990	3	2010.01
32	Italy	Rated head:265m Rated flow:0.734m³/s Frequency:50Hz Outgoing line voltage:6.3kV	CJA475-W-110/2×8.5 SFW1600-10/1730	2	2009.07
33	Georgia	Rated head:289m Rated flow:1.775m³/s Nozzle No.:2 Bucket No.: 20 Runner Outer Diameter: 1600mm RUNNER DIAMETER: 1300mm	4000KW Pelton runner change	3	2009.06
34	Vietnam	Rated head:86.2m Rated flow:22.5m³/s Frequency:50Hz Outgoing line voltage:10.5kV	HLA883-LJ-155 SF17000-12/3250	2	2009.01

Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.

Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.

Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.

In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.

Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
