Prod Model: |
OH200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
AC Voltage Requirement: |
220/110 V |
Max Gas Output: |
200L/H |
Dimensions - L*W*H: |
620*280*360mm |
Gross Weight: |
33 Kg |
Is Customized: |
Yes |
Delivery Time: |
15-20 Working Days After 30% Deposit If None Stock |

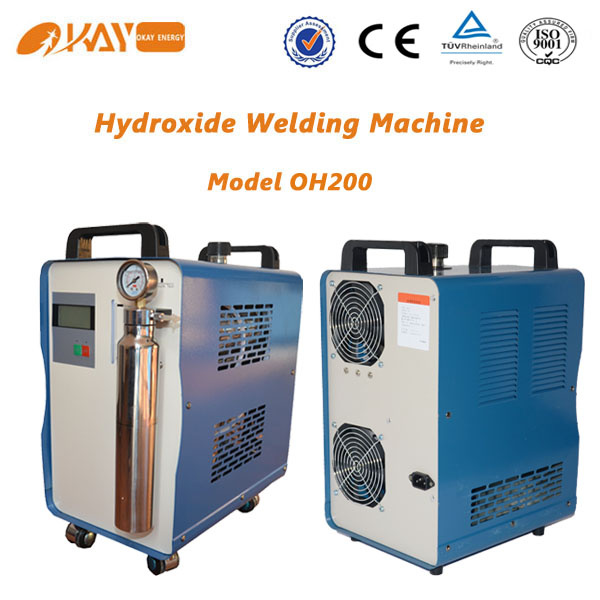

Product Description
1. What is oxy-hydrogen generator:
It consumes water and electricity, electrolyze water into H2 and O2, we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel. It can be used for welding, heating, flame polishing, glass processing and jewelry processing.
2. Why we used oxy-hydrogen generator
1) Maxumum safety
2) Environmentally Friendly without any pollution.
3) The cost of electricity and water reduces more than 40% compared with acetylene flame.
4) Low Heat Dispersal
5) Excellent welding and cutting quality.
6) Portable, flexible and movable.
3. Applications:
1)Welding: Copper, , Gold, Silver, Iron, and Tin
2)Heating: Glass and any metal
3)Flame polishing: Acrylic, Plexiglass
4. Features of Okay Energy Oxy-hydrogen Generators compared with other companies:
1) Portable with small size
2) Electrolytic Cell adopts precise mould to formed, prevent from explosion and leakage
3) Built-in flame temperature adjusting device
4) Built-in micro computer control system, be stable to produce the gas
5) Efficient electrolytic power supply based on patented technology to ensure gas production with high efficiency and fast speed.
6) Flashback arrestor with multilayer and multi grade to ensure safety and reliability.
7) Digital Human-Computer Interaction interface, be convenient to operate.
8) Precise flame gun and kinds of precise nozzle sold free with machine to meet different process demand.
5. Standard configuration
Torch and nozzle: 1 set
Soft pipe: 2m
Flame arrester: 1 unit
Model Number |
OH200 |
AC Voltage Requirement (V) |
220/110 |
Phase |
single |
DC Voltage & Current (A) |
5V 60A |
Max Gas Output |
200L/h |
Max. Working Pressure (kg/cm 2 ) |
1.3 |
Max. Water Consumption (L/h) |
0.11 |
Water Feed |
manual |
Max. Flame Modifier Consumption (L/h) |
0.1 |
Flame Modifier Feed |
manual |
Dimensions - L*W*H (mm) |
620*280*360 |
Gross Weight (kg) |
33 |
Ventilation Space Requirement (mm) |
200 in each direction |
