Gas Compressor Pressure:
13.8mpa(2000psi)
Oxygen Concentratioy:
90%~96%
Function:
Improve Blood Circulation
Certification:
ISO13485
Group:
Adult
LCD Display:
With LCD Display
Kind:
Medical Gas
Theory:
Psa
Product Description

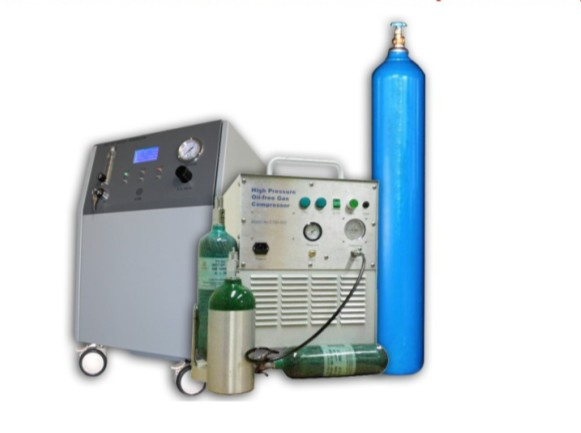

The oxygen filling system consists of a high pressure oil-free compressor and a PSA oxygen concentrator. Through the compressor, the oxygen generated by the concentrator will be filled into different size of oxygen cylinders. By using this oxygen filling equipment, you can generate and store oxygen whenever and wherever you like. Application This oxygen filling system can used for medical, homecare, industrial and other applications where delivery of oxygen cylinders is not convenient. It is especially suitable for EMS oxygen supply for life rescue in disaster areas as well as health care in underground or plateau areas with low oxygen concentration. Features 1. Absolutely dry, clean and oil-free. 2. High compression ratio. The service pressure is up to 138bar (2000psi/13.8Mpa) 3. Efficient filling. It takes about 6 hours to fill a M265 10-liter oxygen cylinder using our oxygen filling system. 4. Small size and light weight. Easy and safe to operate. 5. Simple, reliable and easy maintenance. 6. High flexibility. This oxygen filling equiment can be used separately or expanded into a larger system through parallel connection to meet the demand for large amount of oxygen consumption. 7. Energy-saving. Our oxygen filling device has low power consumption. 8. Cost-effective. Parameters of Oxygen Concentrator of the Oxygen Filling System
Model
JAY-10
JAY-20
Rated power (VA)
550W
1100W
Operation voltage (V/Hz)
AC230V (± 10%); 50Hz (±1Hz)
Oxygen flow (L/min)
0-10
0- 20
Oxygen concentration
93% (± 3% )
Outlet pressure (Mpa)
0.04-0.07
Alarm
Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional)
Noise level (dB)
≤ 55
≤ 55
LCD display
Accumulating timing; present timing; timing;
Large LCD display (optional)
Pressure indication (accuracy: 0.001MPa); Accumulated working time (range: 0-10000hours); Present working time (accuracy:1 minute); Preset time (accuracy: 1 minute) Optional: temperature indication (accuracy: 0.1); Oxygen concentration indicationMaintenance reminding
When oxygen concentration is 85% or above, the green lamp is on; when oxygen concentration isbelow 85%, the red lamp is on, indicating low concentration
Fuse
F7A/250V
High Pressure Oil-Free Compressor Specification
10L
20L
Electrical requirement
C150-500
C150-800
Power consumption
500W on average
1000W on average
Inlet pressure
6-20psi (0.04-0.01Mpa)
6-20 psi (0.04-0.01Mpa)
Max. discharge pressure
2000psi (13.8Mpa)
2000psi (13.8Mpa)
Flow rate
5-10LPM
15-20LPM
Machine dimension (W×D×H)
38cm×62cm×63cm
38cm×62cm×63cm
Net weight
52.5kg
64kg
New High Pressure Oil-Free Compressor Specification
Operating temperature
5ºC-35ºC
Operating humidity range
15-95%RH (No condensation)
Operating altitude
0-2000m
Storage temperature range
-40ºC -+70ºC
Storage humidity range
10%-95%RH (No condensation)
Working voltage
115V±10% /60Hz (230V±10%/50Hz)
Power
700W on average
Classification
CategoryII Model B
Inlet airflow
5-10LPM
Inlet pressure
7-15psi
Filling pressure
0psi-2000 (±200psi)
Dimension (L×W×H)
510mm×510mm×800mm
Weight
About 60kg
Filling Time for Various Types of Cylinders with Oxygen Filling System
Cylinder model
Cylinder capacity
Oxygen storage
Air flow
Input air pressure
Output air pressure
Cylinder filling time
L
L
LPM
psi
Mpa
psi
Mpa
M004
0.7
98
10/20
15/20
0.1/0.14
2000
13.8
12L: 5mins
M006
1.0
140
10/20
15/20
0.1/0.14
2000
13.8
16L: 7mins
M009
1.7
238
10/20
15/20
0.1/0.14
2000
13.8
25L: 12mins
M265
40
6800
10/20
15/20
0.1/0.14
2000
13.8
<12L: 6hours
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
