| Prod Model: |
CDC32KW/40KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator: |
40kVA Power Generator |
| Generaotor Engine: |
Diesel Generator |
| Generator Alterntor: |
Brushles with AVR |
| Generator Contorller System: |
Automatic LED Screen Auto Start, Auto Transfer |
| Generator Optional: |
ATS/Amf |
| Generator Canopy: |
Silent/Super Silent /Open Frame |
| Generator Alternator For Option: |
Stamford; Marathon;Leroy Somer |
| Generator Cooling Method: |
Water Cooling |
| Frequnecy: |
50Hz |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |

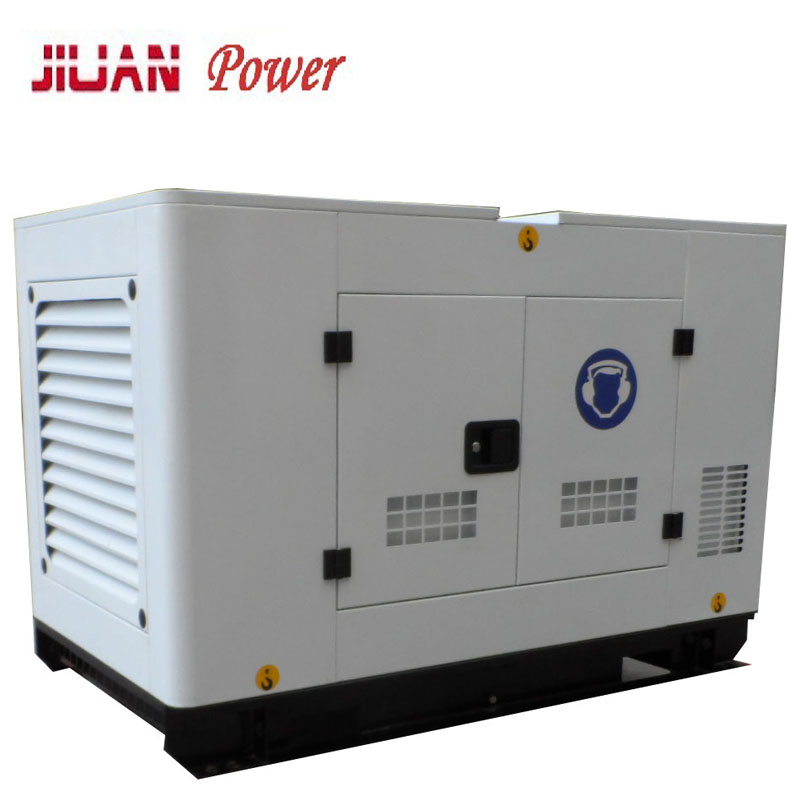

Product Description
. Professional generator OEM factor in guangzhou
. Stock available
. Cummins generator 40kVA
Frequnecy: 50Hz
Voltage: 220V/380V
GS, SONCUP
Insulation Grade: H
Protection Grade: IP23
G. W: 1400KGS
Overall Size: 2900X1230X1700 MM
20FT: 4 PCS
OPTIONAL
ATS(auto transfer switch)
Auto Battery Charger
AMF (auto mains failure)
New canopy
100kVA Cummins generator self start generator
CUMMINS OEM Factory in City GUANGZHOU
Cummins Generator (yangdong diesel generator) power range 10-1500kVA
Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
10kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA, 600kVA, Available
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
|
Diesel Generator Set 40 KVA |
Generator
Specifications |
Generator Model |
CD-C32kw/40KVA |
|
Generator Prime Power |
32kw/40KVA |
|
Generator Standby Power |
34KW/42.5KVA |
|
Generator Engine Model |
DCEC Cummins 4BTA3.9 -G2 4cycle |
|
Generator Alternator |
Stamford;Marathn;Leroy Somer;Faraday;Stamford copy |
|
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
|
Controller |
Smartgen or Deepsea |
|
Dimensions (L*W*H) |
2300*1100*1650(s)mm 2600*1100*1650(super silent)
|
|
20FT/40HQFT Container |
4PCS/10PCS |
|
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
|
Generator MOQ |
1PCS |
|
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
|
Payment |
T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you.
|
|
MODEL |
CD-C32KW/40KVA |
|
Powered by Cummins Engine |
|
Prime Power (50HZ) |
32KW/40KVA |
|
Standby Power (50HZ) |
34kw/42.5KVA |
|
Power Factor |
0.8 (Lagging) |
|
Phase Wires |
3-phases 4-Wires |
|
Start Model |
Electric |
|
Protection |
Low oil-pressure, High water temperature,
Over-speed, Over-current |
|
Engine Model |
DCEC Cummins 4BT3.9-G2 4 Cycle |
|
Cylinders |
4 |
|
Cylinder Arrangement |
L |
|
Bore x Stroke(mm) |
102X 120 |
|
Compression Ratio |
16.5:1 |
|
Speed |
1500rpm |
|
Cooling Method |
Water – cooled |
|
Starting Method |
24V DC electrical start |
|
Full Load Diesel Consumption (L/H) |
9 |
|
Engine Displacement (L) |
3.9 |
|
Inspiration (L) |
Natural |
|
Lube Volume (L) |
9.5 |
|
Coolant Volume (L) |
20 |
|
Noise (Db) |
≤ 80 |
|
Alternator Model |
Newage Stamford PI144J or Leadtech LTG224BA |
|
Alternator Power |
32KW/40KVA Brushles with AVR |
|
Voltage |
380/220V,400/230V,415/240V,220/127V |
|
Protection |
IP23 |
|
Voltage Regulation |
±4% |
|
Insulation Class |
H |
|
Voltage Control |
AVR |
|
Net Weigh (KGS) |
950 |
|
Dimensions (L x W x H) mm |
2300*1000*1400(S)
2600*1100*1650(Super Silent) |
|
Controller |
Smartgen 6110 or Deepsea 7320 |
|
Standard |
Muffler * 2PCS |
|
|
Battery 80A * 2 PCS |
|
Optional |
ATS (auto transfer switch) |
|
|
AMF(auto mains failure) |
|
|
Trailer |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
