Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Output Type:
AC Three Phase
Product Description
ADP-7P
DIESEL GENERATOR SET
50Hz/1500 rpm
Standby power: 10kVA/8KW
Prime power: 9kVA/7KW
Engine: PERKINS, 403D-11G
Charge alternator: 12V
Governor: Electrical
Generator: STAMFORD, PI044E
Single bearing alternator IP 23
Insulation class H/H
Radiator 50 degree max with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
12V battery and cable
Industrial muffler
User's manual
GEN-Set
Dimension(L×W×H)
Weight
OpenType
1410mm×715mm×1080mm
397Kg

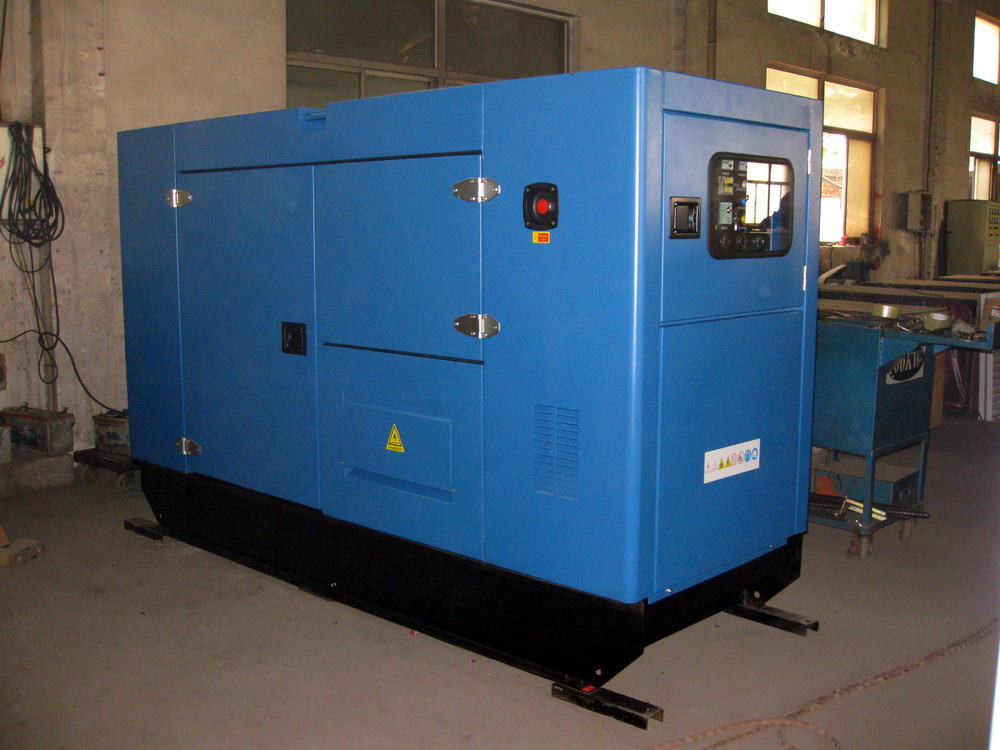

SilentType
1815mm×741mm×1324mm
647Kg
GeneratorRatings
Voltage
Hz
Phase
Powerfactor
StandbyAMP
StandbyRating
(KVA/KW)
PrimeRating
(KVA/KW)
400/230
50
3
0.8
14.5
10/8
9/7
Engine Data
Manufacturer/Model
PERKINS 403D-11G 4-cycle
Cylinder/Arrangement
3/ L
Displacement
1.13L
BoreandStroke
77mm×81mm
Compressionratio
23:1
RatedRPM
1500RPM
Max.stand bypowerat rated RPM
9.3KW
Frequencyregulation,steadystate
±0.75%
Governor:type
Electrical
Exhaust System
Exhaustgasflow
1.66m³/min
Exhaust temperature
368 degree
Maxbackpressure
10.2kPA
Fuel System
Fuelconsumption100%(ofthePrimePower) 6.8L/h
Oil system
Totaloil capacityw/filters 4.9L
Airintake
Engineairflow 0.7m3/min
Coolant System
Radiator&enginecapacity
5.2L
Maxwatertemperature
112 degree
Thermostat
75-87degree
GeneratorData
Manufacturer/Type
STAMFORD/PI044E
Numberofphasepower
3
Factor(CosPhi)
0.8
Pole:number
4
Bearing:number
1
Coupling
Direct
Excitertype
BrushlessSHUNT
lnsulation: class, temperature rise
H/H
protection
IP23
