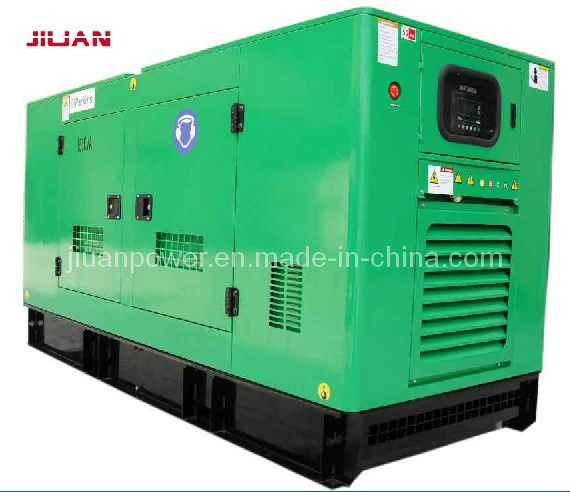

Silent China Engine 10kVA Diesel Generator

Name: Silent China Engine 10kVA Diesel Generator
Brand: aboutgenerator.com
SKU: 647519945
Availability: InStock
Rating: 4.9 (71 reviews)

Price:	US $ 2200-2500/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Guangzhou Jiuan Mechanical & Electrical Co., Ltd.

Showroom Product Company Profile

Prod Model:	CDY8KW/10KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
10kVA Diesel Generator:	Super Silent Type
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Self-Starting Diesel Generator
Output Type:	AC Three Phase

Product Description

10KVA Diesel Generator super silent 50HZ/60HZ 3/1-phase 380/220V
Engine Perkins China Yangdong Kubota Alternator brushless with AVR
Controller Digital Smartgen, ATS (auto transfer syttem) AMF (auto mains failure)

JIUAN Diesel Generator Set Advantage:

50hz@1500rpm or 60HZ@1800rpm all are available
AVR delivers non fluctuating power
Panel type digital control panel
12 Volt / 24 Volt electric starter ensures easy starting
Low oil pressure shut down system
Low fuel cut out protection
Low water cut out engine protection
Enclosed structure ensures quieter operation
Alternator (Dynamo) excitation mode brushless self excitation
Three-phase output meets differing requirements
Four Cylinder, four stroke, water cooled diesel engine
8 hours running @ full load on a single tank of fuel
Dual access doors for easy maintenance
Optional automatic or manual transfer switches available
ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
Noise Level (65-70dBA @ 7m)
All ratings are at sea level

After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611

Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA

* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

Terms of Payment:
1. T/T
2. Western Union
3. Cash
8kva 10kva 12kva 15kva 20kva 25kva 30kva 50kva 60kva 100kva 150kva 200kva 250kva 300kva 500kva some models have stock

Generator Set Model	CDQ-8kw/10kva
Generator Set Power	8kw/10kva
Generator Powered by Quangchai Engine
Diesel Engine Model	QC385G
Engine Characters	Water-cooled, in line, 4-cycle, direct injection, 1500rpm
Bore x Stroke (mm)	85x90
Rated Output	11kw/13.75kva
Fuel Consumption (g/kw.hr)	262
Lube Consumption (g/kw.hr)	2.72
Compression Ratio	18
Starting	Electric (12V)
ALTERNATOR MODEL	Stamford copy 164B
Rated Power	8kw/10kva
Voltage (V)	220/380 240
Current (A)	12.1
Frequency (Hz)	50
Power Factor (cos)	0.8
Brush/Brushless	Brushless
Dimensions (LxWxH) mm	S: 17009601060
Gross Weight (KGS)	600
20FT	12 PCS

Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 1500kVA

2. Perkins (UK) 8kVA-1000kVA

3. Deutz (Germany) 20kVA - 150kVA

4. ISUZU (Japanese) 20kVA - 40kVA

5. Kubota (Japanese) 7kVA-50kVA

6. Lovol (China) 20kVA - 150kVA

7. Yangdong (China) 8kVA - 40kVA

8. Weichai (China) 8kVA - 150kVA

9. Shanghai Engine

10. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)

2. Super Silent type (65-70 dB(A) at 7 meters )

3. Open type

4. Trailer type (mobile)

5. Container Type

6. Parallel System

* Alternator for Choice

1. Stamford

2. Leroy Somer

3. Marathon

* Controller

1. Smartgen

2. Deepsea (UK Brand and imported)
