North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:T Jiangsu China:
Brand Name:T Lingyu
Output Type:T AC Three Phase:
Speed:T 1500/1800/3000/3600rpm
Frequency:T 50/60Hz:
Rated Power:T 150kVA/120kw
Rated Voltage:T 110~570V:
Rated Current:T AMPS
Payment Terms:T T/T L/C Credit:
Fan:T Aluminum Fan
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Six Stroke
Cooling Method:
Water Cooling
Output Type:
AC Single Phase
Product Description
Packaging & Delivery
Packaging Detail:
plastic film & wooden bearers
Delivery Detail:
Open type within 15 days, silent type within 25 days

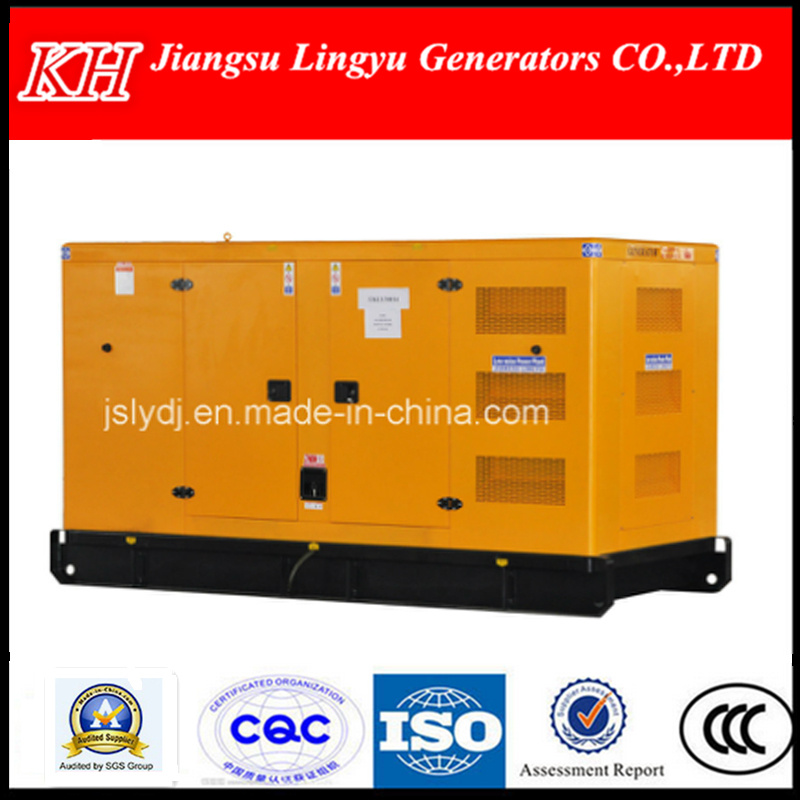

2015 diesel generator silent type powered by Cummins 6BTAA5.9G2
Output Ratings
Gensets
Model
Prime
Standby
kW
kVA
kW
kVA
TP138CS
100
125
110
138
Voltage
380V-415V
220V-240V
190V-208V
Amps
174-190
301-328
347-380
Ratings and Performance Data
Engine Brand
Cummins
Engine Model
6BTAA5.9G2
Alternator Brand
Stamford
Alternator Model
UCI274E
Control System
DSE6020 / DSE7320
Standard Noise Level@7m
(Soundproof Sets)
72 db
Circuit Breaker Type
3 Pole MCCB
Frequency & Phase
50Hz & 3PH
Engine Speed: RPM
1500
Fuel Tank Capacity: L
Open
300
Soundproof
Fuel Consumption (l/hr)
110% Load
34
100% Load
30
75% Load
23
50% Load
16
Lubricant
15W40-CF4 Upgrade
Total Lubricant Capacity (L)
16
Features
Standard open type is good to working in engine room with ventilation system.
The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.
Standard soundproof type(IP21) will be working perfectly in the open air
All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
50ºCradiator
IP54 (soundproof sets), IP56 (control system)
Base fuel tank for at least 8 hours running
For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.

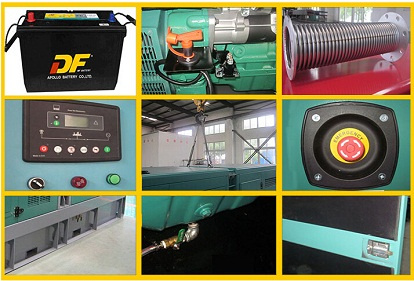

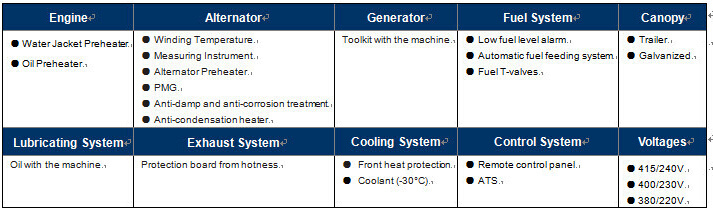

Optional The Details of Our Diesel Generator
FAQ:
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1)Package:Plastic Package.
A.2)Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3)Delivery: 25 days after we get the down payment.
A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
Q2: Any advantages about your company?
Answers: TP Brand Diesel Generators
---- Middle-high Positioning;
---- 25days Lead-time;
---- Designed by CAE and CAF Software;
---- Got the ISO and CE certificate;
---- High quality with the best price can help you get more benefit and beat your competitors;
---- Cummins, Detuz etc. famous engine brands optional;
----- Open, Soundproof Canopy, Container, Trailer etc. Type for your choose.
Q3: Any catalogue for other brands and power?
YES, WE HAVE!
To know more details, please feel free to contact
us by the following way:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
