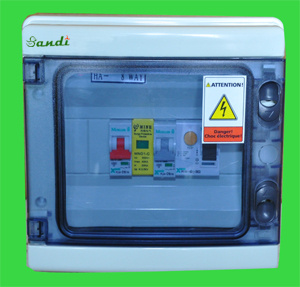

Product Description
Applicable for outdoor PV systems
8/16 PV string inputs with maximum string current at 15A
Wide DC voltage input range with maximum open-circuit voltage up to 1000V
With PV dedicated DC fuse with maximum voltage not less than 1000V
With PV dedicated high voltage lightning proof and surge protection device
Both +VE & -VE poles equipped with a 4-pole circuit breaker with the allowable
DC voltage not less than 1000V
Monitoring feature optional for each string of PV array
Waterproof terminals
Type Designation
PVB -4
PVB-8
PVB-12
PVB-16
DC Input Voltage Range
0~1000
0~1000
0~1000
0~1000
Number of Inputs
4
8
12
16
Max. DC Current for Each String
15A
15A
15A
15A
Output Terminal Type
PG21
PG21
PG21
PG21
Relative Humidity
0~99%
0~99%
0~99%
0~99%
DC Circuit Breaker
yes
yes
yes
yes
SPD
yes
yes
yes
yes
Consumption: (standby) operation / night
0.5-1W/0.5W
0.5-1W/0.5W
0.5-1W/0.5W
0.5-1W/0.5W
Installation: indoors/outdoors (IP65 electronics)
Yes / yes
Yes / yes
Yes / yes
Yes / yes
Shell type
ABS Engineering plastics
ABS Engineering plastics
ABS Engineering plastics
ABS Engineering plastics
Weight
10Kg
18Kg
22Kg
25Kg
Optional Components*
Current Monitor for Each String
Option
Option
Option
Option
LCD Display
Option
Option
Option
Option
Data supervisory control
Option
Option
Option
Option
Communication
RS485
RS485
RS485
RS485
