| Prod Model: |
JBO200-99 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Source: |
Gas |
Product Description

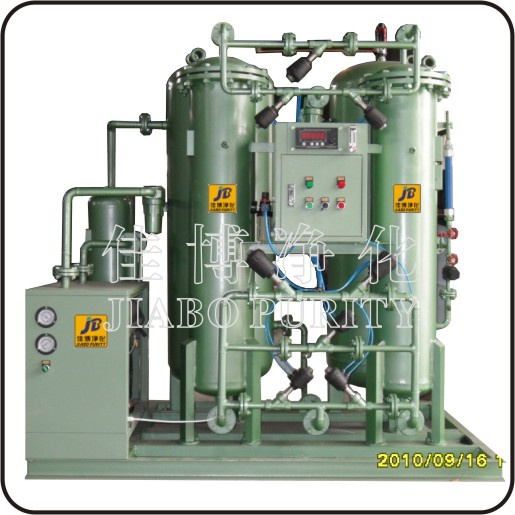

The structure of oxgen generator-Hangzhou Fuyang Jiabo Purification Engineering Co., Ltd.
1 Air Compressed System
Air Compressed System can compress the air to desired pressure of 7 bar or more
2 Air Purification System
Air Purification System used to remove dust, water and oil from compressed air. It's mainly composed of three sets of filters, freezing drier and effective oil removal.
3 Air Tank System
The Air Tank Systems can avoid the gas transmission of O2/N2 to separation system at too rapid flow velocity, So it can improve purification of air and expand the working life of carbon molecular sieve. Air Tank System is composed of air tank, safety valve, closing valves, ball valves, and pressure gauges ect.
4 O2/N2 Separation System
The O2/N2 Separation System utilizes two towers which are filled with zeolite molecular sieve. Compressed air enters the bottom of the "online" tower and flows up through the zeolite molecular sieve, N2, CO2 and H2O gases are preferentially adsorbed by the zeolite molecular sieve, allowing Oxygen to pass through. After a pre-set time the on-line tower automatically switches to the regenerative mode, venting contaminants from the the zeolite molecular sieve. When one tower produces O2, another tower releases the N2, CO2 and H2O at the same time. Two towers alternate adsorption and regeneration to output O2 continuously.
5 Oxygen Buffer System
The main role of oxygen gas buffer system is to balance the pressure and purity of oxygen gas which separated from O2/N2 separation system to ensure continuous supply of oxygen gas. Oxygen gas buffer system is composed of buffer tank, flowmeters, dust filters, pressure regulating valve, throttle, and safety valve etc.
6. Oxygen Compressed System
The Oxygen Compressed System can compress the Oxygen to desired pressure of 150bar or more.
7 Electrical Control System
Electrical Control System is to control start-up & shutdown operation, the status light, sound and light alarm fault instructions, purity display, driving pneumatic valve by setting procedures etc. Electrical Control System is composed of the process controller CPU, triple gas source, electromagnetic valves, lights etc
Oxygen generator applications
Paper and Pulp industries
Glass industries
Metallurgical industries
Chemical industries
Water and Wastewater treatment
Fish farming
1)high purity
2)exellent energy-saving
3)smoothly running, long-life
4)automatic operating
Hangzhou Fuyang Jiabo purification Engineering Co. Ltd, located in the hometown of Sun Quan - Fuyang City, which is close to 320 National Road, Hangzhou, Ningbo, which is connecting Shanghai Hangzhou high-speed, the traffic is very convenient.
The company is a private high-tech joint-stock enterprise, covers an area of about 6000 square meters, mainly engaged in compressed air purification equipment (freeze dryer, the adsorption type dryer), air separation equipment (PSA nitrogen generator, PSA Oxgen generator), hydrogen production equipment and secondary purification gas separation equipment design, development, manufacturing and sales. After years of practice, the company has a better trend of developing and is full of energy, positive enterprising staff.
The company production of air purification equipment, main products are: Freeze drier (dryer), adsorption type drier (dryer), precision filter, air cooler, gas separation equipment production of the leading products: Nitrogen, oxygen, hydrogen and secondary purified gas separation equipment. Auxiliary products have: The oil-water separator, high efficient oil remover, a dust filter, condenser, oil collecting box etc...
Since 2003, the company has been made for products and provided services to USA Sullair, Ingersoll Rand, Atlas well-known brands such as air compressor, praised by the majority of users, the products are also exported to North Korea, Kazakhstan, Philippines, Iran, Saudi Arabia, Russia and other countries.
