| Prod Model: |
SNM-P200-240W |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| 156*156mm Solar Cell: |
Polycrystalline Solar Cell |
| 6*10 Series: |
Dimensions: 1940*992*50 Mm |
Product Description
SNM-P200 200Wp SNM-P205 205Wp
SNM-P210 210Wp SNM-P215 215Wp
SNM-P220 220Wp SNM-P225 225Wp
SNM-P230230Wp SNM-P235 235Wp
SNM-P240 240Wp

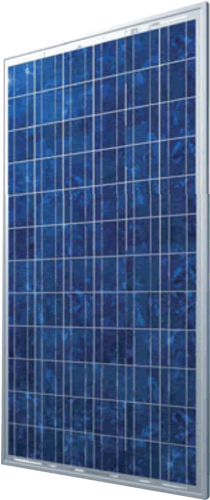

200-240watt photovoltaic module
POLY -CRY STALLINE SOLAR PANEL
EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability
MATERIALS
Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions
Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use
BENEFITS
Manufactured in an ISO 9001: 2000 certified plan
High efficiency, high safety, high reliability
Output power tolerance of +/-3% 25-year limited warranty on power output, 5-yea limited warranty on materials and workmanship
NOTE
This publication summarizes product warranty and specifications, whichare subject to change without notice. Additional information may be found on our web site.
SPECIFICATIONS
Model type SNM-P240 SNM-P235 SNM-P230 SNM-P225 SNM-P220 SNM-P215 SNM-P210 SNM-P205 SNM-P200
Peak power(Pmax) 240W 235W 230W 225W 220W 215W 210W 205W 200W
Cell type PolyCrystalline Silicon, 156mm x 156mm
Number of
Cells 60 cells in series
Weight 19.3 kg (42.61 lbs)
Dimensions 1640× 992× 50 mm(64.57× 39.1× 1.97 inch)
Maximum power
Voltage (Vmp) 29.40V 29.40V 29.40V 29.00V 29.00V 29.00V 28.75V 28.75V 28.75V
Maximum power
Current (Imp) 8.16A 7.99A 7.82A 7.75A 7.58A 7.41A 7.30A 7.13A 6.95A
Open circuit
Voltage (Voc) 36.50V 36.50V 36.50V 36.30V 36.30V 36.00V 36.00V 36.00V 36.00V
Short circuit
Current (Isc) 8.50A 8.30A 8.30A 8.10A 8.10A 8.10A 7.99A 7.80A 7.71A
Note: The specifications are obtained under the Standard Test Conditions (STCs): 1000 W/m2 solar irradiance, 1.5 Air Mass, and cell temperature of 25
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
