| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | T/T,Paypal,Money Gram,Western Union |
| Prod Model: | TCW1KW-TCW50KW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use Way: | Wind on Grid System |
| Rated Wind Turbine Power: | 300W-50kw |
| Rated Solar Power: | 300W-50kw |
| Rated Battery Voltage: | 48/96/192/384/492V |
| Wind Turbine Maximum Input Current: | 40-100A |
| Wind Turbine Maximum Input Power: | 600W-100kw |
| Unload Voltage: | 56/112/224/448V |
| Unload Current: | 25-100A |
| Control Mode: | PWM |
| Display: | LCD |
| Rotating Shaft: | Horizontal |
| Number Of Blade: | Three Blade |
| Stress Way Of Blade: | Resistance |

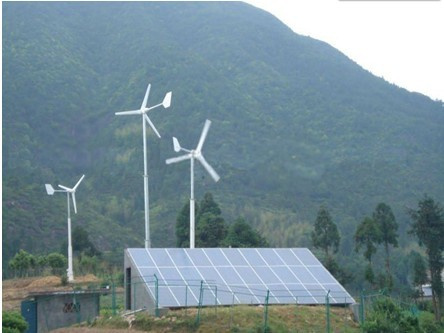

| TANFON 2KW hybrid power system :400w solar +1000w wind | |||
| System Basic Information |
Solar panel power:400W+Wind turbine power:1000W Suitable for daily power consumption:3.2-4.8KWH Allowable Max Loads power:2.4kw |
||
|
Solar panel |
Cell type: mono( polycrystalline, optional ) Max power :200w Vmp:36.8V Imp :8.3A Size : 1498*998*40mm 25 years power output guarantee Connect way:2 pcs panels in series as a string |
QTY 2pc |
|
|
Wind turbine |
Power:1000w Advantage: light weight, small volume Starting wind speed:2.5m/s Rated wind speed:12.5m/s Security wind speed:45m/s Rated speed:650r/m 3years warranty,20year use life |
QTY 1pc |
Notes: 1.pictures shown are for reference; 2.power consumption data is based on areas with average wind speed of 4.5m/s and average daily peak power sunshine of 4hrs. 3.the battery capacity is designed for 2 days backup in non-sunshine and windless weather 4.solar panel racks and cables are not included Remark: 1)for wind and solar have 5 years warranty; 2)system other parts have 2 years warranty; 3)ship the free parts for service |
|
hybrid controller |
Input 400W solar power+1000W wind power DC 24V input ;MPPT intelligent control Protection Function:Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection Battery-reverse connection protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake. |
QTY 1pc |
|
|
pure sine wave Inverter |
Rate output Power:2000W pure sine wave DC:24v ; AC:110v or 220v With AC charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc. |
QTY 1pc |
|
|
Battery |
12V/100AH Solar power lead-acid battery, full sealed Deep cycle free maintenance type, special used for solar or wind power storage Service life:5-6 years ,warranty :2 year Connect way:2 pcs panels in series as a string,3 strings in parallel |
QTY 6pc |
|
