| Prod Model: |
SML |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Battery State-of-Charge display with 3 LEDs
Acoustic load disconnect pre-warning
PWM-regulation (series type) Boost
Equalize and Float charging, also for VRLA
Automatic 12/24 Volt detection
Integrated temperature compensation
Large terminals (up to 16mm2 wire size)
SOC and voltage controlled LVD
Fully electronically protected

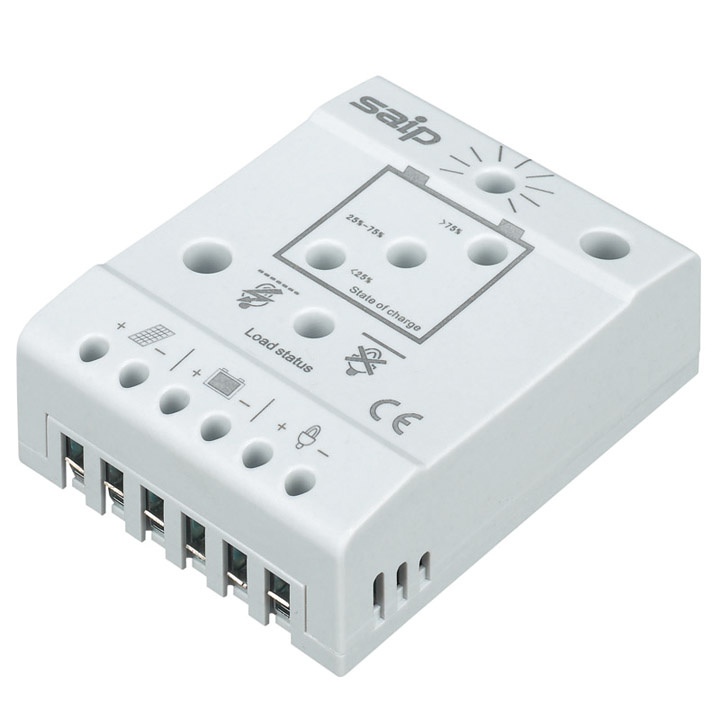

The SML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost-equalization- float) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function.
The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.
|
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
|
Max. module current |
5A |
8A |
10A |
15A |
20A |
|
Max. load current |
5A |
8A |
10A |
15A |
20A |
|
System voltage |
12V/24V |
|
Self power consumption |
<4mA |
|
Dimensions(W×H×D) |
80*100*32mm |
|
Type of protection |
IP22 |
