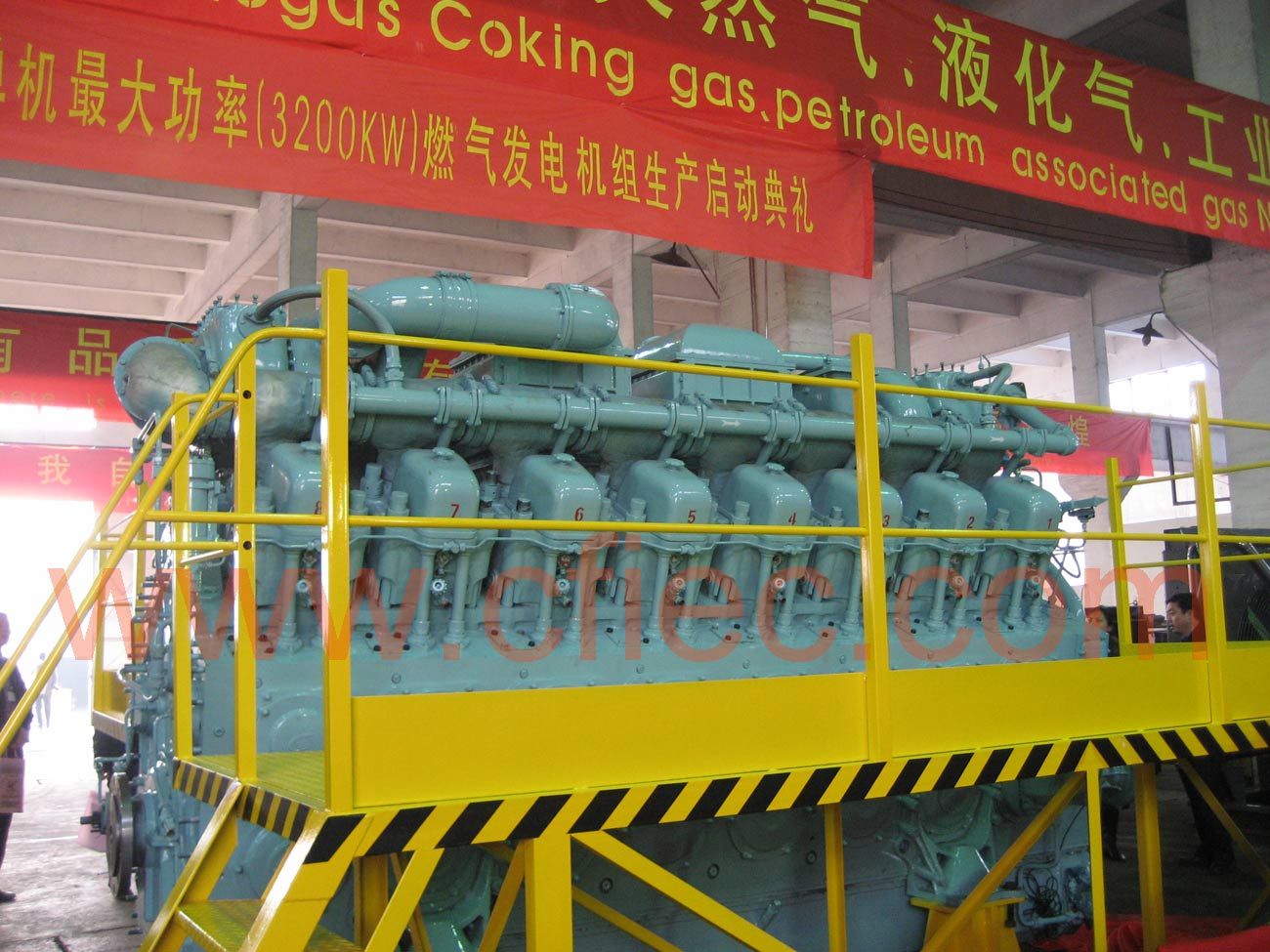

Natural Gas Generator, 900kw-2300kw, Series V
Price: |
Negotiable |
Min Order: |
1 |
Natural Gas Generate Electricity Application Areas
Tube natural gas, oil field concomitance gas, liquid natural gas and so on
Natural gas gen-sets, which are mainstream AC supply for backup power
Station in international use, are most widely used in gas gen-sets.
We provide complete design and production no matter for primary plan of power
System or long time maintenance and extended services to reach the best
Solution for our customers' power systems and meet reliable, efficient, stable
Performing and easy operating requirements.
set | gen-set model | Unit | FNGF900 |
prime rating | KW | 893 |
standby power | KW | 982 |
ENGINE | engine | | JINAN |
engine model | | 12V190ZL-T |
bore*stock | mm | 190×210 |
cylinder | | 12 |
rated speed | r/min | 1500 |
12-hour power | KW | 935 |
heat consumption | MJ/kWh | 12 |
inlet | | Turbocharged Intercooled |
natural gas | m 3 /h | 287 |
air flux | m 3 /h | 3489 |
coolant heat | kW | 759.1 |
coolant flux | kg/s | 30.1 |
fan-air flux | m 3 /h | 52.3 |
consumption | m 3 /h | 11178 |
start method | | Electrical Starting |
GENERATOR | alternator | | STAMFORD |
| | HCI634K |
rated power | KW | 908 |
frequency | HZ | 50/60 |
rated voltage | V | 400/230 |
rated current | A | 1638 |
power factor | cos | 0.8 |
excitation | | Brushless |
V-regulator | | Automatic |
phase/connector | | 3Phase 4Wire ,Y-connection |
SET | net weight | kg | 12000 |
dimension | mm | 6190×2110×2800 |
gen-set | gen-set model | Unit | FNGF1200 |
prime rating | KW | 1243 |
standby power | KW | 1367 |
ENGINE | engine | | ZIYANG or DALIAN |
engine model | | 12V240ZJD-T |
bore*stock | mm | 240×275 |
cylinder | | 12 |
rated speed | r/min | 1000 |
12-hour power | KW | 1306 |
heat consumption | MJ/kWh | 12 |
inlet | | Turbocharged Intercooled |
natural gas | m 3 /h | 400 |
air flux | m 3 /h | 4857 |
coolant heat | kW | 1056.6 |
coolant flux | kg/s | 41.9 |
fan-air flux | m 3 /h | 72.8 |
consumption | m 3 /h | 15560 |
start method | | Electrical Starting |
GENERATOR | alternator | | YONGJI |
MODEL | | TFW12003 |
rated power | KW | 1200 |
frequency | HZ | 50/60 |
rated voltage | V | 400/230 |
rated current | A | 2165 |
power factor | cos | 0.8 |
excitation | | Brushless |
V-regulator | | Automatic |
phase/connector | | 3Phase 4Wire ,Y-connection |
SET | net weight | kg | 32300 |
dimension | mm | 6710×1950×3000 |
Gen set | Gen-set model | Unit | FNGF1700 |
prime rating | KW | 1754 |
standby power | KW | 1929 |
ENGINE | engine | | ZIYANG or DALIAN |
engine model | | 12V280ZJD-T |
bore*stock | mm | 280×285 |
cylinder | | 12 |
rated speed | r/min | 1000 |
12-hour power | KW | 1850 |
heat consumption | MJ/kWh | 12 |
inlet | | Turbocharged Intercooled |
natural gas | m 3 /h | 565 |
air flux | m 3 /h | 6853 |
coolant heat | kW | 1490.9 |
coolant flux | kg/s | 59.1 |
fan-air flux | m 3 /h | 102.8 |
consumption | m 3 /h | 21956 |
start method | | Electrical Starting |
GENERATOR | alternator | | YONGJI |
model | | TFW18003 |
rated power | KW | 1800 |
frequency | HZ | 50/60 |
rated voltage | V | 400/230 |
rated current | A | 3248 |
power factor | cos | 0.8 |
excitation | | Brushless |
V-regulator | | Automatic |
phase/connector | | 3Phase 4Wire ,Y-connection |
SET | net weight | kg | 34300 |
dimension | mm | 6710×1950×3000 |
gen-set | gen-set model | Unit | FNGF2300 |
prime rating | KW | 2339 |
standby power | KW | 2573 |
ENGINE | engine | | ZIYANG or DALIAN |
engine model | | 16V280ZJD-T |
Bore *stock | mm | 280×285 |
cylinder | | 16 |
rated speed | r/min | 1000 |
12-hour power | KW | 2457 |
heat consumption | MJ/kWh | 12 |
inlet | | Turbocharged Intercooled |
natural gas | m 3 /h | 753 |
air flux | m 3 /h | 9139 |
coolant heat | kW | 1988.2 |
coolant flux | kg/s | 78.8 |
fan-air flux | m 3 /h | 137.1 |
consumption | m 3 /h | 29279 |
start method | | Electrical Starting |
GENERATOR | alternator | | YONGJI |
model | | TFW23003 |
rated power | KW | 2300 |
frequency | HZ | 50/60 |
rated voltage | V | 400/230 |
rated current | A | 4150 |
power factor | cos | 0.8 |
excitation | | Brushless |
V-regulator | | Automatic |
phase/connector | | 3Phase 4Wire , Y-connection |
SET | net weight | kg | 40100 |
dimension | mm | 7500×1950×3000 |
Our business office is located in Qingdao which is one of the biggest sea ports in China. We are an international wholesale and retail B2B and B2C company with Internet help. We can do system intergration work for overseas customers. Our company is composed by hard working and professional trade clerk, experienced quality team, and the best engineers in china who are experienced and professional. Most of our stuff know good English. We do sourcing work, attend exhibit shows, visit manufacturing factories, evaluate products, production equipment, and process, visit manufacturing factories to know what products and factories are good and what are most suitable for a specific need requirement, and then recommend products with good quality and performance to overseas customers.
We are formal registered company, and have all the necessary qualification right for international trade. We passed the German SGS Auditing. Pls go to our website to download the Auditing Report from SGS. We can quickly calculate CIF or CFR price. Sample order and small order in all of our products is also welcome. We welcome all people to do business with us and we will give you professional and high quality service. E. g., we can take video or series of pictures of how to assemble a knock down machine and how to maintenance and repair a machine. Sometimes, we can help you to solve issues with Internet live video.
We do business in the following product fields:
1. Earth moving machinery: wheel loaders, excavators, bulldozers.
2. Road building machines: rollers, graders, pavers, asphalt distributors, asphalt tanks, chipping spreaders.
3. General industrial machines: truck cranes, mounting truck cranes, crawler cranes.
4. Construction machinery: drilling rigs, concrete mixer trucks, concrete pumps, concrete mixers, concrete batch plants, tower cranes.
5. Agricultural Machinery: Tractors, grass equipment, combine harvesters, tools attached to tractor, farm tools.
6. Power machinery: diesel engines, other types of generator, air compressors.
7. Special vehicles: semi trailers, dwelling trailers, water trucks, fuel trucks, aerial working trucks, garbage trucks, fire engines.
8. Pipeline products: ductile cast iron pipes and fittings, fire fighting grooved fittings, valves, stainless steel fittings for pipeline.
9. Woodworking machines: thicknesser, planer, milling machine, band saw, saw, Slot mortising machine, belt sander, Finger joint assembler, spindle machine, etc.
10. Manufacturing consultation: from fabricating of sheet metal part, cast iron part, machined part, aluminum alloy extrusion part, molded plastic part, to standard part choosing, painting and plating process, assembly, test, inspection, packaging, to the control of production, stocking, and shipping.
We use good factories as our OEM manufacturer, and put our brand Fortune on the product.
We accept to use our customer's brand trademark and medal on our products. We can print buyer's name in the operating manual. For big order, we have lower price.
Any 2D and 3D drawings and models of the part and assembly are acceptable.
