| Prod Model: |
SUN36M15W49X29 |
Product Description

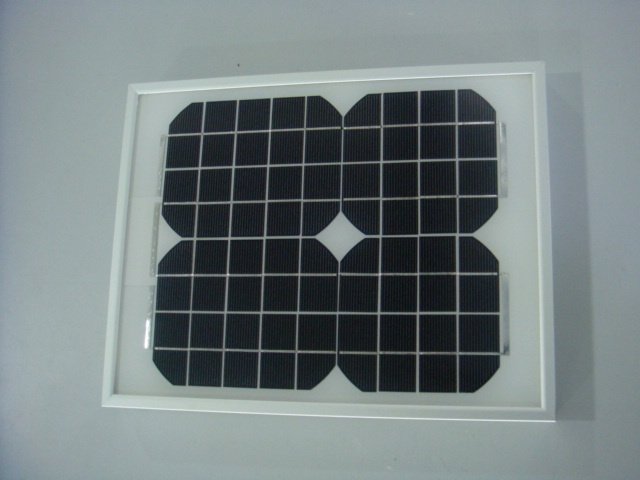

Model: SUN36M15W49x29
Material: Monocrystalline Silicon
Pm: 15 watts
Vmp: 17.5 volts
Imp: 0.86 ampere
Voc: 21.5 volts
Isc: 0.97 ampere
Standard Testing Condition: 1000W/m2AM 1.5 25 deg. C
Voc Temperature Coefficient: -0.4%/deg. C
Isc Temperature Coefficient: 0.1%/deg. C
Working Temperature: -40~80 deg. C
Efficiency of Solar Cell: 15%~17%
Efficiency of Solar Panel: 10%~15%
Dimension: 287*487*25 mm
Weight: 1.9 kg
CTN Dim: 549*358*342 mm
CTN Volumn: 0.067 cu. M.
CTN Wt: 20 kg
PCS/CTN: 10 PCS
Insulation: >=100MOhm
PCS/20FCL
PCS/40FCL
Voltage Stand off: AC2000V, DC3000V
Wind Bearing: 60m/s(200kg/sq. M)
Impact Resistance: Hail Impact Test
Encapsulated WITH: Tempered Glass
CONVERSIONEFFICIENCY: 13.5%
LIFE TIME: More than 25 years
Quality Guarantee: 2 years
SUN-SAT is a high tech corporaton and specialized in R&D and utilization of solar resource. With advanced equipments, continuously improving production process and strict QC system, SUN-SAT's many professional technicians can design and produce various types of mono and polycrystalline silicon modules with pretty high quality. Besides, the core material produced by SUN-SAT can be used in other forms of production, special application and projects.
Our leading products are 2U, 3U, 4U (32W-125W), 5U (32W-123W), 6U (100W-150W), 8U (150W-200W), Mini 2U, Mini 3U, spiral lamp, mini spiral, tube (5W-100W), spherical lamp, candle lamp, pole lamp, T5 straight tube fluorescent lamp, energy-saving down lamp, energy-saving spot light, PAR38 reflector lamp, energy-saving cup lighting (TC, TR11), and detachable energy-saving lamp (GU10), etc.
Since the foundation of SUN-SAT, it endeavors in R&D and promotion of solar modules and solar energy system. SUN-SAT has explored a wide market with good feedback, not only in the whole domestic market, but also in European and American markets. Under the guidances of "Science and technology create fortune" and "Products serve the markets", SUN-SAT focus on constant innovation and provide the clients with safe, mature and advanced products. SUN-SAT's solar system can achieve the whole day electricity supply and can be the power for small electrical applications. Now SUN-SAT is offering solar panels to many domestic lawn lamp factories and gets good social recognition and economic benefits. As the utilization and development of solar products, solar energy, the inconsumable green energy, will benefit everyone and help us create a bright future.
