Product Name:
Mini Electric Steam Generator
Working Pressure:
101psig
Input Power:
3-60kw
Steam Capacity:
4-85kg/H
Main Power Voltage:
3phase/380V/50Hz (Made to Order)
Thermal Effieiency:
98%
Saturated Steam Temperature:
171°c
Condition:
New
Port Of Loading:
Shanghai, China
Lead Time:
7days/Set
Function:
Steam Boilers
Fuel:
Electric Heating
Installation:
Packaged Boiler
Media:
Steam
Water Circulation:
Forced Circulation
Drum Placement:
Vertical Boiler
Pressure:
Low Pressure
Manufacturing Level:
B
Structure:
Tubular
Burning Style:
None
Usage:
Laduny, Hospital, School, etc...
Product Description
Mini Electric Steam Generator (LDR0.05-0.7)
I. Product Introduction: "FUTURE" Mini electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
1. Small Input Power(3-60KW) with higher output(4-85Kg/h). 2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler. 3. Mini Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes. 4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS, etc...
II. Details of Mini Electric Steam Generator:

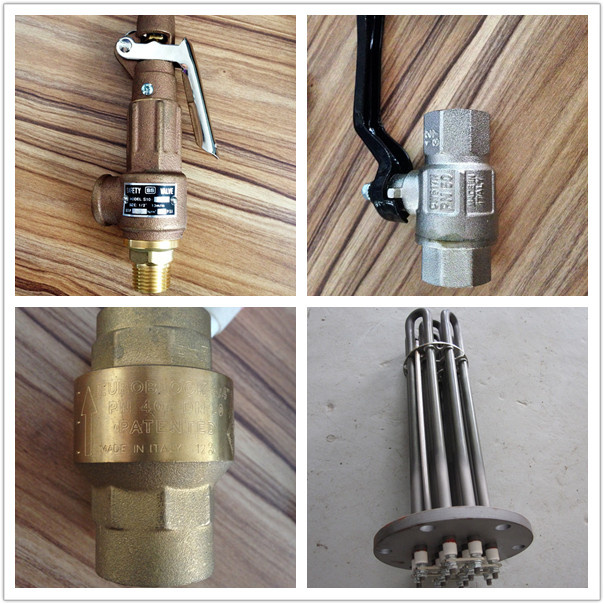

1) High Quality Components & Parts:
2) Customer Using Site:

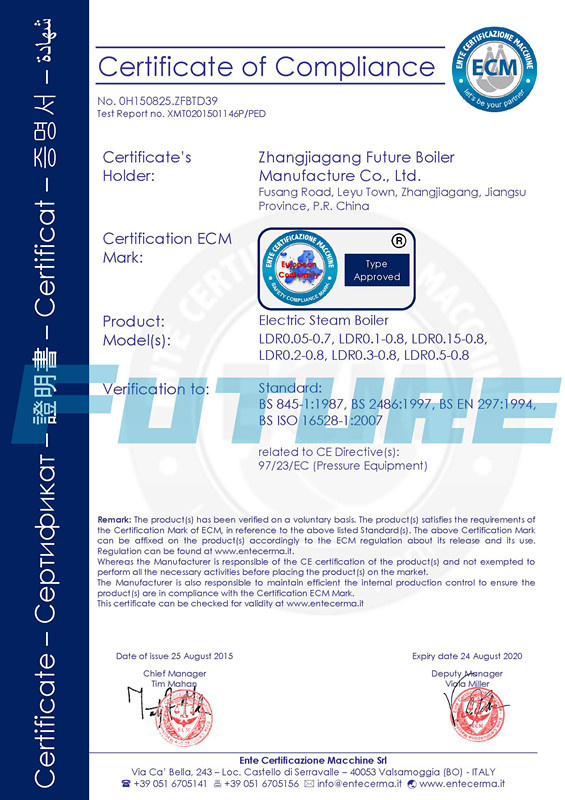

3) CE Certificate:
III. Technical Data:
Model
LDR0.004 -0.7
LDR0.009 -0.7
LDR0.013 -0.7
LDR0.017 -0.7
LDR0.025 -0.7
LDR0.035 -0.7
LDR0.05 -0.7
LDR0.065 -0.7
LDR0.085-0.7
Item
Unit
Rated Steam Capacity
Kg/h
4
9
13
17
25
35
50
65
85
Rated Working Pressure
MPa
0.7
Saturated Steam Temperature
° C
171
Input Power
KW
3
6
9
12
18
24
36
48
60
Input Current
A
6
9
14
18
27
41
55
73.8
92
Voltage
V
220 / 380 (Available for adjustment )
Water Inlet
DN
15
15
15
15
15
15
15
15
15
Steam Outlet
DN
15
15
15
15
15
15
15
15
25
Blowdown Valve
DN
15
15
15
15
15
15
15
15
25
Safety Valve
DN
15
15
15
15
15
15
15
15
25
Dimension
mm
680× 520× 850
750× 550× 920
850× 600× 1000
920× 700× 1200
960× 730× 1390
Weight
kg
50
75
79
85
92
118
132
160
210
