| Prod Model: |
H1.25-H3.8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power (W): |
500 |
| Maximum Output Power (W): |
1000 |
| Battery Bank Voltage (VDC): |
24 |
| Start-up Wind Speed (M/S): |
3 |
| Rated Wind Speed (M/S): |
7 |
| Survival Wind Speed (M/S): |
50 |
| Generator Efficiency: |
>0.78 |
| Wind Energy Utilize Ratio: |
0.48 |
| Certificate: |
CE, BV, ISO |
| Blade Diameter(M): |
2.5 |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
Product Description

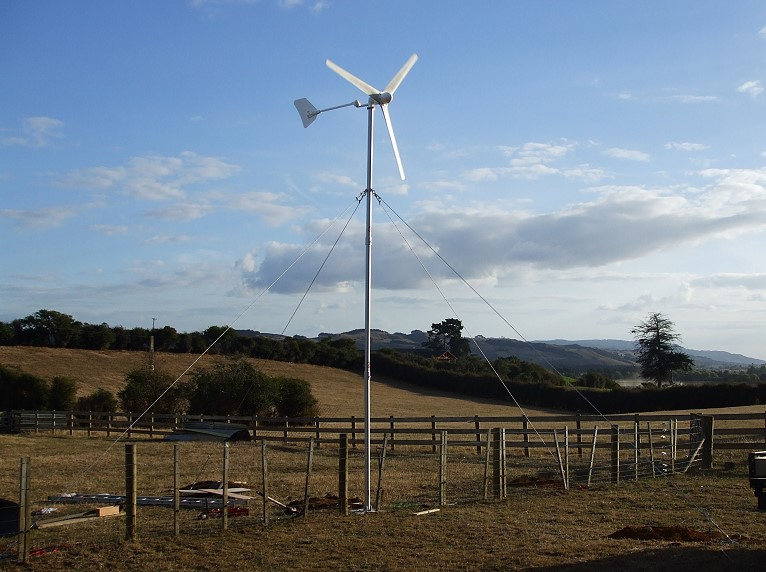

Mini Wind Turbine Generator 24VDC
1. FEATURE& MATERIAL
A) SCF Supercritical generator
Hummer's wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
B) SKF bearings
Hummer 500W Micro Wind Turbine adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.
C) Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
D) Braking protection
Hummer Micro Wind Turbine(500W-2000W) adopts the double braking protection system, which are the yawing mechanism and the electromagnetic braking system to regulate the rotation of the wind turbine. It is safe and convenient to shut down the whole system both manually and automatically. For 3KW-20KW wind turbine, customer can order the hydraulic braking system as well as a third protection. It is easy and convenient to shut down the whole system both manually and automatically. And over 20KW(>20KW), the hydraulic braking system is the standard equipped.
2. APPLICATION AREA:
Housing, office, farm and factory;
Telecommunications Station;
TV Transfer Station;
Monitoring Station (military, hydrology, observatory)
Water-pumping Station and so on.
3. We have more different models for the Wind turbines, and the diameter is from 1.25m to 19.2m, if you are interested in, just contact me.
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
