| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
Product Description

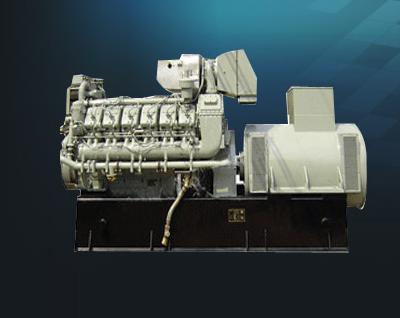

1\Mannheim Marine diesel generating sets overview
Mannheim series diesel generating sets have good power, economy, stability, reliability maneuverability lower operational and maintenance costs such as characteristic, by years perfect after-sale service system has been deeply user eye gaze.
2\Mannheim Marine diesel generating sets characteristics
1. Economic: MWM series diesel generating sets is the current world oil consumption is one of the lowest unit.
2. High reliability, long life.
3. Start-up performance is good: The unit may be in a - 10 Celsius business environment directly without any auxiliary measures launched.
4. Low work performance is good: J using "HALLO discretion load optimization vortexing" technology 150KW Mannheim Marine diesel generating sets, this controllable eddy current technology simple construction, reliable, practical and effective.
5. Easy maintenance: Simple structure and reliable, greatly reducing the maintenance workload.
6. Discharge low: Meet for carbon monoxide emissions IMO organization request.
3\Mannheim Marine diesel generating sets main component
Engine parts: Diesel filter, air filter, oil filter, from charging system,
Generators parts: Air switch, turbine control panel,
Steel base,
Damping pad, Part accessories: Muffler, 24V battery, the battery connecting cables, spare parts box, etc.
4\Mannheim Marine diesel generator maintenance matters
Normally, diesel oil filter for every four hours replacing time; Air filter for replacement time per 1, 000 hours; Oil filter first replacement for 50 hours, later time intervals of 250 hours replacement.
|
Unit Type |
Rated Power |
Speed / Frequency |
Rated voltage |
Diesel Model |
Unit Size |
Unit Weight |
|
KW |
RPM/HZ |
V |
L×W×H(mm) |
Kg |
|
CCFJ100 |
100 |
1500/50 |
400/230 |
TD234V6 |
2160× 1122× 1847 |
2740 |
|
CCFJ120 |
120 |
1500/50 |
400/230 |
TBD234V6 |
2300× 1122× 1847 |
2800 |
|
CCFJ150 |
150 |
1500/50 |
400/230 |
TBD234V6 |
2300× 1122× 1847 |
2800 |
|
CCFJ200 |
200 |
1500/50 |
400/230 |
TBD234V8 |
2500× 1122× 1847 |
3200 |
|
CCFJ250 |
250 |
1500/50 |
400/230 |
TBD234V8 |
2774× 1122× 1847 |
3200 |
|
CCFJ300 |
300 |
1500/50 |
400/230 |
TBD234V12 |
3674× 1268× 1847 |
4500 |
|
CCFJ320 |
320 |
1500/50 |
400/230 |
TBD234V12 |
3674× 1268× 1847 |
4500 |
|
CCFJ350 |
350 |
1500/50 |
400/230 |
TBD234V12 |
3674× 1268× 1847 |
4500 |
|
CCFJ400 |
400 |
1500/50 |
400/230 |
TBD604BL6 |
3450× 1350× 2130 |
5430 |
|
CCFJ450 |
450 |
1500/50 |
400/230 |
TBD604BL6 |
3480× 1350× 2130 |
5430 |
|
CCFJ500 |
500 |
1500/50 |
400/230 |
TBD620V8 |
4200× 1695× 2273 |
7200 |
|
CCFJ750 |
750 |
1500/50 |
400/230 |
TBD620V8 |
4200× 1695× 2280 |
7200 |
