| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | AC400-485KVA-RL |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: | AC400V/200V |
| Frequency: | 400Hz |
| Apprent Power: | 485kVA |
| Resistive Load: | 410kw |
| Inductive Load: | 260kvar |
| Insulation Grade: | F Class |
Made In China Dummy AC Load Bank
1.Product Introduction
Made In China Dummy AC Load Bank
It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,thermal
module,control part etc.It can accurately detect Marine generator output power and load capacity,and assist shipyard
in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic test, speed characteristic test,overload
protection test,reverse power and reverse current protection test,and parallel operation test etc.

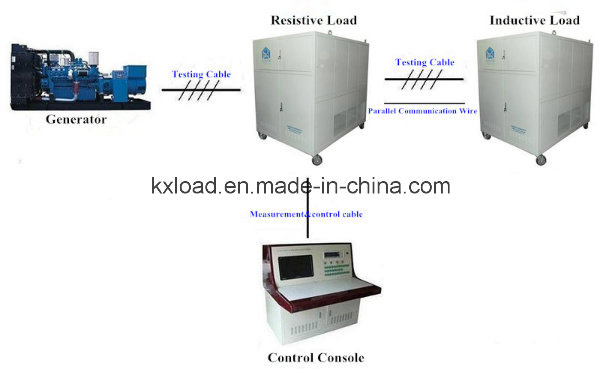

2.AC400-485KVA Made In China Dummy AC Load Bank System Chart
3.AC400-485KVA Made In China Dummy AC Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4.AC400-485KVA Made In China Dummy AC Load Bank Technical Specifications
Technical parameter | |
AC400-485KVA-RL | |
Rated voltage /Frequency | Three-phase four-wire 400V,400Hz;Three-phase three-wire 200V,400Hz |
Rated Capacity | 485KVA |
Load Distribution | 2 load Resistive load:410kW,Inductive load:260Kvar |
Stepping Value | Resistive load: 1KW Inductive load: 1Kvar |
Resistor divider file | AC 400V:1,2,2,5,10,20,20,50,100,200KW 10 steps; AC 200V:0.75,1.5,1.5,3.7,7.5,15.1,15.1,37.8,75.6,151.3KW 10 steps. |
Reactance file | AC 400V:1,2,2,5,10,20,20,50,50,100Kvar 10 steps; AC 200V:0.75,1.5,1.5,3.7,7.5,15.1,15.1,37.8,37.8,75.6Kvar 10 steps. |
Power factor | 0.75-1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC single phase connection 220V/50Hz |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Dimension |
1600 mm×2400mm×2000mm |
| Weight | Resistive load:600Kg+Inductive load:1500Kg |
Operating Environment Parameter | |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand | |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |
5.AC400-485KVA Made In China Dummy AC Load Bank Product Display

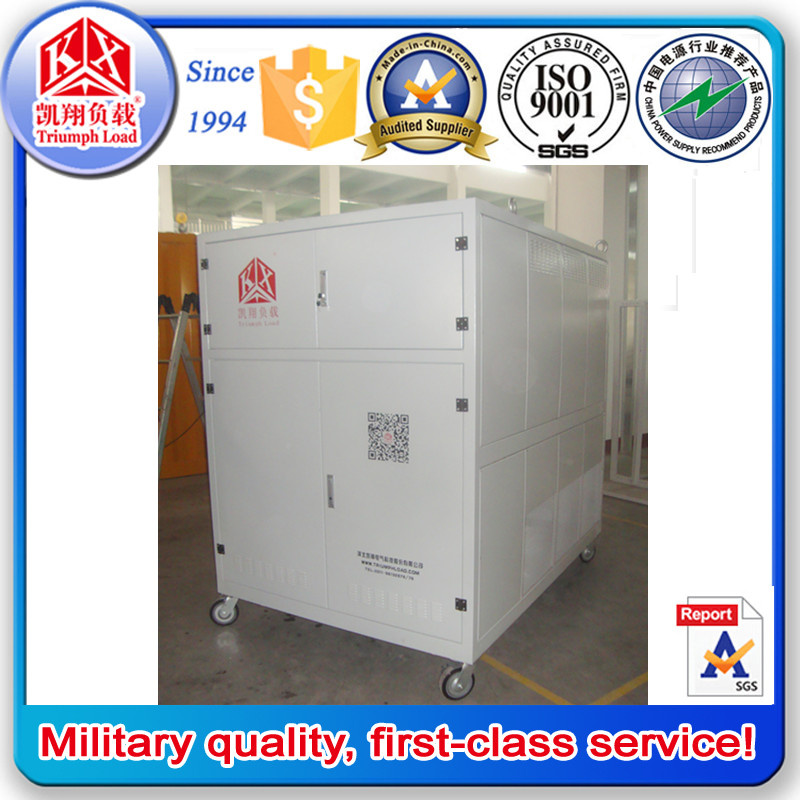

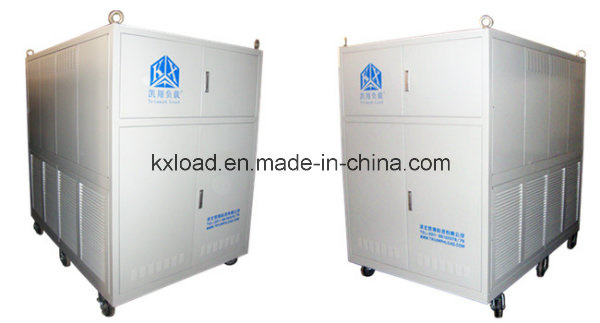

Overall Apperance

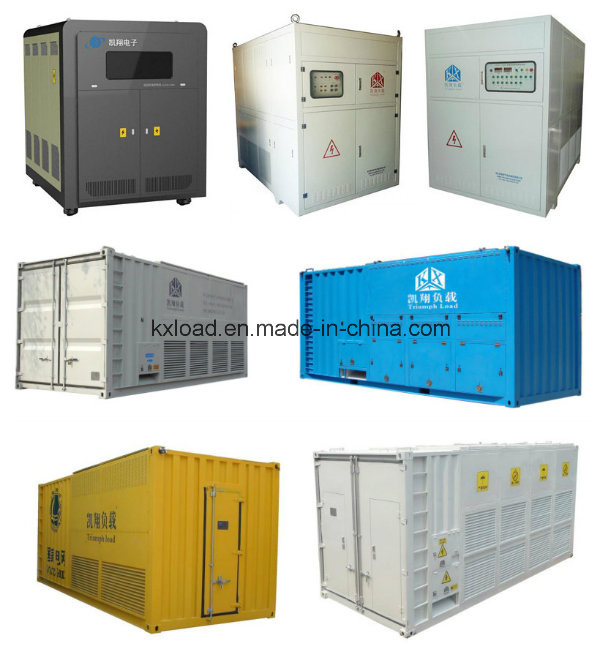

More AC Load banks
