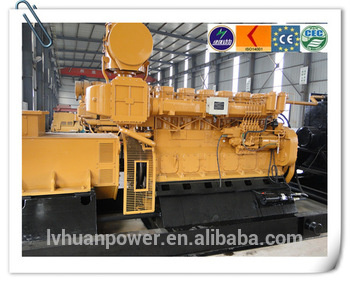

Lvhuan High Efficiency Medium Power 300kw Biomass Gas Generator Set China 6190 Engine

Lvhuan high efficiency medium power 300KW Biomass Gas Generator Set China 6190 engine

1. We have a sales staff can speak in Russian, If you from  Russia, Kazakhstan , Ukraine, Belarus,
Uzbekistan, and other countries,you can visit our website: www.lvhuanpower.ru.

2. Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.
With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.

3. Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.

4. Main composition of biomass gas:
After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%),CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3.
Efficiency of gasification:1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.

5. Requirements for biomass gas:
Within 1m from pressure regulating value of gas intake;
Gas temperature<40ºC
The ratio of CH4 in natural gas >70%;
Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Tar content≤20mg/ Nm3;
Moisture content ≤40g/Nm3;
Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3
Heat value≥4.2MJ/Nm3

tion is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system:EGS gas controller of American WOODWARD Company.
scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.

6.

Parameters of Biomass Generator Set:
Model Number (Engine Type)	LHBMG300
Brand Name	LVHUAN
Prime Power/Standby Power	240KW/300KW
Rated Speed	1000/1200RPM
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤9.8mj/kw.h
Lubricant consumption	≤1.6g/kw.h
Engine Capacity	32 L
Cylinder Number	6
Cylinder Bore	190mm
Stroke	210mm
Starting System	DC 24V electric motor
Cooling method	water cooler
Lubricant method	Passive and flying lubricant
Isolation class	H
Protection	IP23
Alternator	Siemens
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001:2008, CE
Warranty	1 year or 1000 running hours which arrives first
Type	Open
Control system	Automatic alarm system
Size	5300x1970x2170mm(without canopy)
Weight	8200kg

(Single set power supply range: 10 - 600 kw, ≥2 sets parallel together to form large power, Eg. 500kw*3 sets = 1500KW)


7. Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression  ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system:EGS gas controller of American WOODWARD Company.
scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.
