| Prod Model: |
LDR Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Movable Electric Steam Generator |
| Main Power Source: |
3p/220-600V/50-60Hz |
| Input Power: |
3-24kw |
| Steam Capacity: |
4-35kg/H |
| Lead Time: |
5-10days/Set |
| Port Of Loading: |
Shanghai,China |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Installation: |
Packaged Boiler |
| Media: |
Steam |
| Water Circulation: |
Mixed Circulation |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
B |
| Structure: |
Tubular |
| Burning Style: |
Electric Heating |
| Usage: |
Garment, Sock, Grovles, etc... |
Product Description

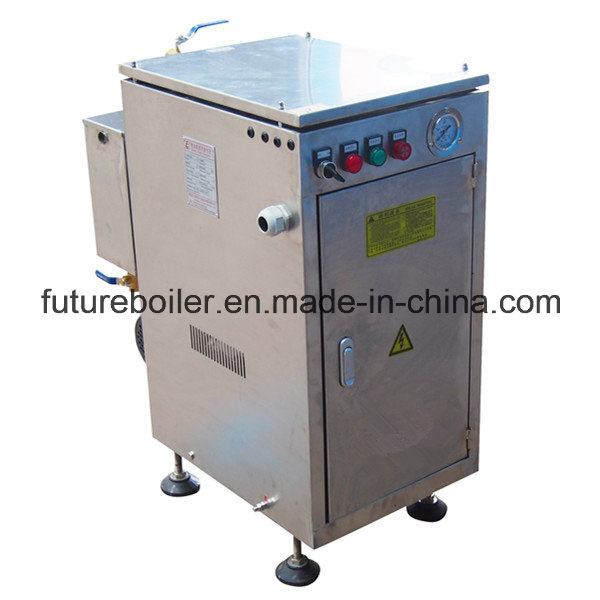

LDR Movable Electric Steam Generator:
I. Description:
1. Run by electric and water.
Clean easy, convenient and eco-friendly
2. Small size and light weight.
Saving space and easy moving, no need to prepare a "Boiler Room"
3. Easy operated
Qucik assembly, Automatic one, connect the water inlet with faucet
Applications:
For heating liquid, food(fruit, sea foods, beverage) processing, high-temperature sterilization, pharmaceutical, etc.
Providing steam for steam iron and laundry, reaction kettle, jacket kettle, concrete curing, etc.
II. Technical Parameters:
Model |
LDR0.004-0.7 |
LDR0.009-0.7 |
LDR0.013-0.7 |
LDR0.017-0.7 |
LDR0.025-0.7 |
LDR0.035-0.7 |
Item |
Unit |
Rated Steam Capacity |
Kg/h |
4 |
9 |
13 |
17 |
25 |
35 |
Rated Working Pressure |
Bar / Psig |
7 / 101 |
Saturated Steam Temperature |
° C |
171 |
Input Power |
KW |
3 |
6 |
9 |
12 |
18 |
24 |
Input Current |
A |
6 |
9 |
14 |
18 |
27 |
41 |
Voltage |
V |
220 / 380 (Available for adjustment ) |
Water Inlet |
DN |
15 |
15 |
15 |
15 |
15 |
15 |
Steam Outlet |
DN |
15 |
15 |
15 |
15 |
15 |
15 |
Blowdown Valve |
DN |
15 |
15 |
15 |
15 |
15 |
15 |
Safety Valve |
DN |
15 |
15 |
15 |
15 |
15 |
15 |
Dimension |
mm |
680× 520× 850 |
750× 550× 920 |
850× 600× 1000 |
Weight |
kg |
50 |
75 |
79 |
85 |
92 |
118 |
