| Prod Model: |
ZH3500DG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension (Mm): |
640*480*540 |
| N/G Weight: |
48/50 |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Single Phase |
Product Description
Key start 178F single phase 3kw Open type Diesel Generator
3.0kW generator is powered by a reliable, long-lasting German-engineered Hatz diesel engine that features pressure lubrication, low pressure shutdown and air preheater for easy cold weather starting down to -25deg;
Full Runs up to 13 hours on a single tank. Delivers 120V or 240V power for versatility.
GFCI protected outlets for extra safety.
| Generator | Rated frequency (Hz): | 50 | 60 |
| Rated rotation speed (rpm): | 3000 | 3600 |
| Continues A.C output (kw): | 2.8 | 3 |
| Continues A.C max output (kw): | 3 | 3.5 |
| Rated voltage (V): | 230 | 120 |
| DC output: | 12V 8A |
| Excitation system: | Centrifugal weight system |
| Fuel type: | Diesel |
| Fuel tank capacity(L): | 12.5 |
| Fuel consumption(g/kw.h): | 280 |
| Continues running hour on full tank(h): | 12 |
| Noise level dB (A)/7m (zero load-full load): | 76 |
| Engine | Type: | 296cc/6.0Hp |
| Displacement [cc]: | 296 |
| Rated rotation speed (rpm): | 3600 |
| Starting system: | recoil starter or electric starter |

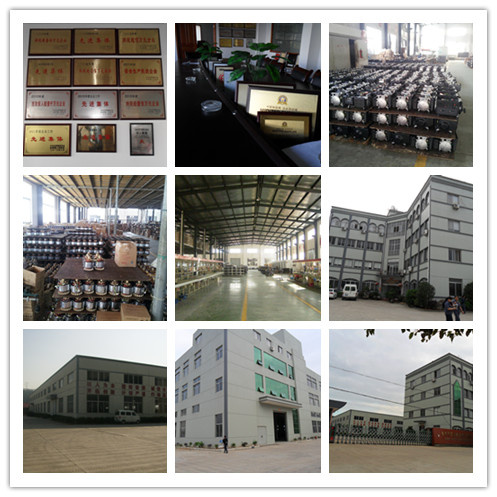

Taizhou Genour Power Machinery Co., Ltd was established in 2003, is the leading manufacturer, exporter of quality products in the engine, generator and water pump business. Employing over 300 staff, and high intermediate technical personnel accounts for above 20%. Taizhou Genour has its Head Office in Fenxi Industrial area, Duqiao Town, Taizhou city, Zhejiang. Factory building area covers about 20, 000 square meters. It is capable to produce 200, 000 sets a year.
Manufacturing includes, gasoline engine, gasoline generator, gasoline water pumps, gasoline concrete vibrator, gasoline generator with welding, diesel engine, diesel generator, diesel water pump, pressure washer and so on. Our sales network covers Europe, East Europe, South America, Southeast Asia, Africa and Middle East area etc., our products are exported to more than 65 countries.
We pay much more attention to the quality of products, and has been certified by ISO9000 and ISO 14000. Each step of manufacture is carried out with strict adherence to the standards of these certifications. While many products have gotten CE, EMC, NOISE, GS, SONCAP and EPA certifications to constantly bring our customers reliable and high-quality products. You can count on us for quick and economical after-sale service solutions due to our well-trained worldwide dealer network. It is always our goal to develop our brand recognition based on exceptional customer service, and to be a contributing member to our employees and the communities in which we do business, both economically and socially!
We are looking forward to going hand in hand with you and co-create resplendence.
