North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
EPA,Carb,CE,CSA,GS:
Certificate
Output Type:
AC Single Phase
Product Description

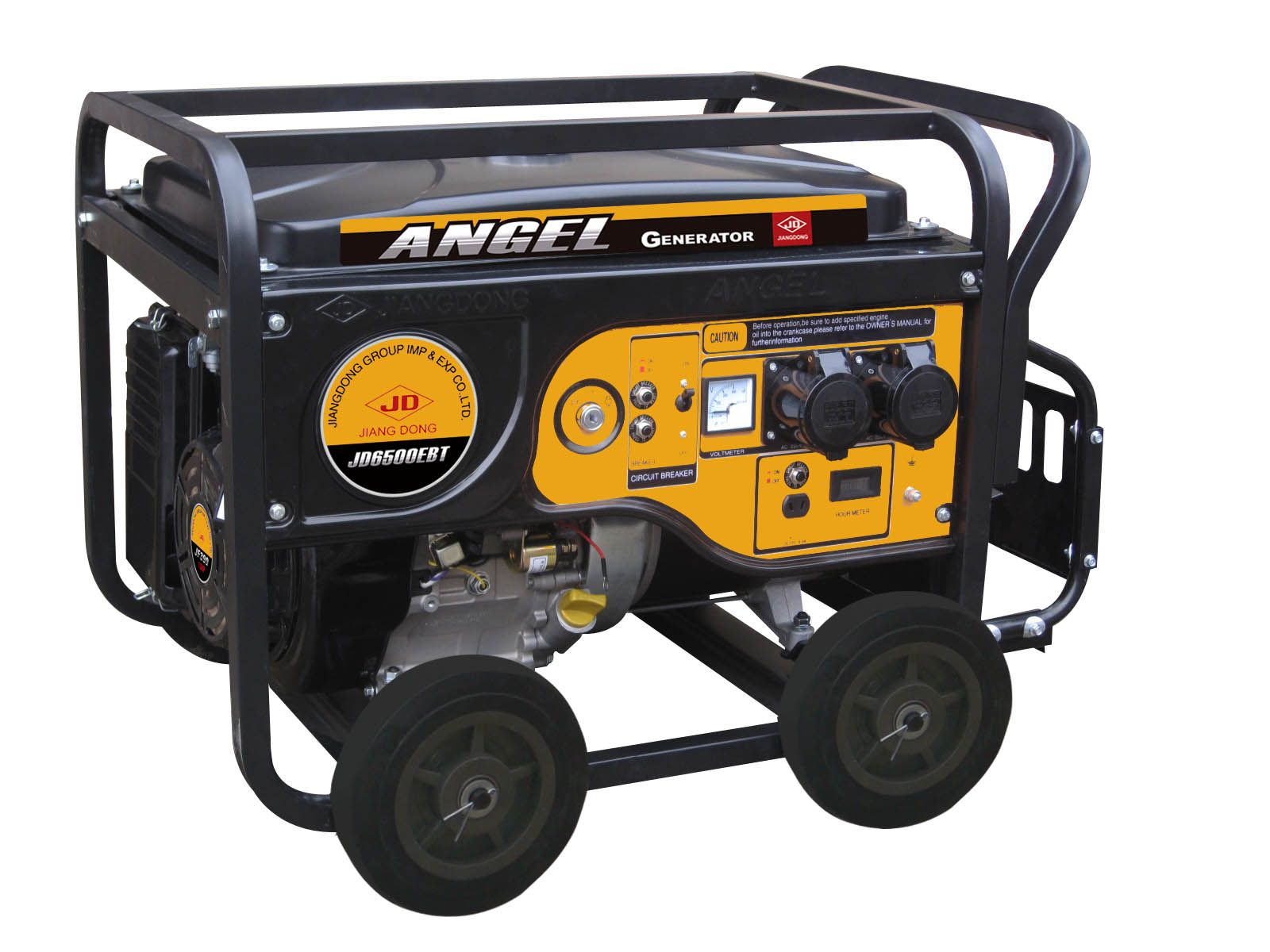

1.JD BRAND GENERATOR 2.GASOLINE GENERATOR WITH EPA,CARB CERTIFICATE FOR AMERICAN MARKET 3.100% COPPER LINE ALTERNATOR 4.12 MONTHS LONG TIME WARRANTY 5.COLOR CARTON PACKAGE
Specification
GENERATOR
Model
JD2000
JD2500
JD3000
Type
Brush Single-Phase
Voltage Regulate
AVR
Frequency Hz
50/60
Rated AC Voltage (V)
110V/120V/220V/230V/240V
Rated AC Output (KVA)
1.5/1.8
2.0/2.2
2.5/3.0
Peak AC Output (KVA)
1.7/2.0
2.2/2.5
2.8/3.5
Power Factor COSφ
1.0
ENGINE
Model
JF168
JF168
JF200
Type
OHV Forced Air-cooled 4-stroke
Bore x Stroke (mm/inch)
68×45/2.68×1.77
68×45/2.68×1.77
68×54/2.68×2.13
Displacement (ml)
163
163
196
Max. output (HP/rpm)
5.5/3600
5.5/3600
6.5/3600
Fuel
Unleaded Gasoline
Fuel Tank Capacity (L/gal)
15/4
Continuous Operating Hours h
13
13
11
Oil
SF or Higher Grade
Oil Capacity (L/gal)
0.6/0.16
Ignition system
T.C.I.
Starting System
Recoil and hand-operated /Electric start
Operating Noise Level (7m) dB(A)
67
STANDARD FEATURES
Fuel gauge
0
0
0
Engine Switch
0
0
0
Voltmeter
0
0
0
AC Circuit Breaker
0
0
0
AC Socket
0
0
0
OPTIONAL
FEATURES
Pilot Light
+
+
+
Wheel & handle
+
+
+
Hours meter
+
+
+
DC Output
+
+
+
DC Circuit Breaker
+
+
+
PACKAGE DIMENSIONS
Dimensions L×W×H (mm/inch)
600×450×470/23.6×17.7×18.5
Gross Weight (kg/lbs)
41/90.2
42/92.4
52/144.4
Net Weight (kg/lbs)
39/85.8
40/88
48/105.6
20/40FT unit
240/475
Yancheng Fujiheng Power Machinery Company Limited is a company specializing in the production and sale of gasoline engines, diesel engines, Kerosene machines, other engines, power generating units, water pump units, garden machinery, agricultural machinery, and small road construction machinery. Our company is located in the hometown of red-crowned crane, Sheyang, around the beautiful and richly endowed Yellow Sea, near the big coastal channel and high-speed way. The transportation is very convenient.
Our company has a number of advanced automated assembly lines and various auxiliary equipment, with an annual output of 50000 sets of engines.
We have a friendly, open, and rigorous company culture and adopt scientific management norms. With talents gathering, Fujiheng has a team of outstanding technical personnel and a development team. They are engaged in product development, promotion and maintenance. Understanding the meaning, of "the customers are the center", we will "serve" throughout the company operation and management in each detail. We believe we will win our clients' trust and support.
Our company adheres to the business philosophy of "innovative ideas, the pursuit of excellence, rapid improvement, sustainable management", and takes "quality is the first; Customer satisfaction is our honor" as our eternal quality policy. We care for the environment and social returns. We also care for employees and regards social responsibility as our responsibility. With "Good faith, responsible, innovative, team" as Fujiheng constant pursuit and objectives, our company is willing to work with the vast number of friends to join hands in creating a better tomorrow!
With strong technical force, high-quality but low-priced products, and first-class marketing and after-sales service, our products are your best choice!
1.JD BRAND GENERATOR
