Silent Diesel Generator:
Isuzu Engine Generator
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

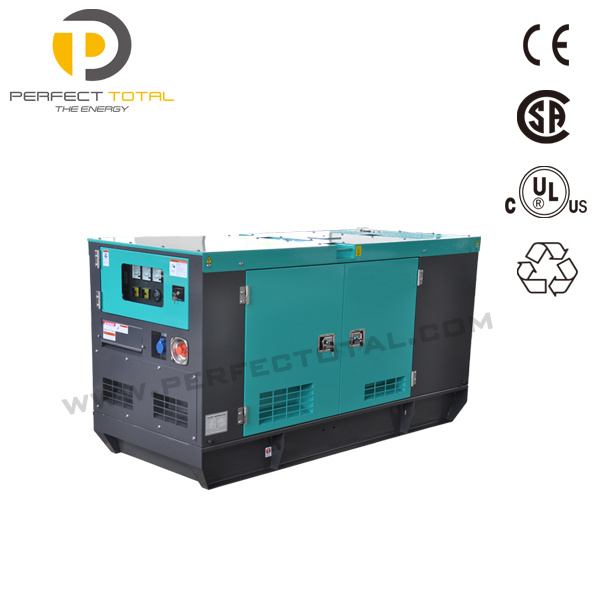

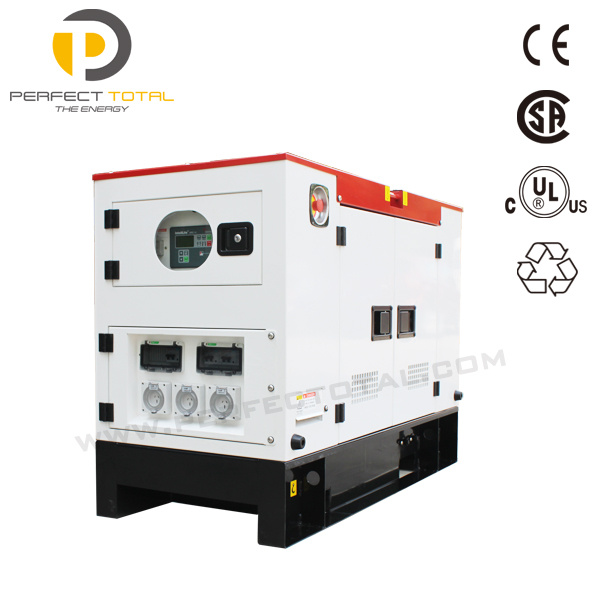

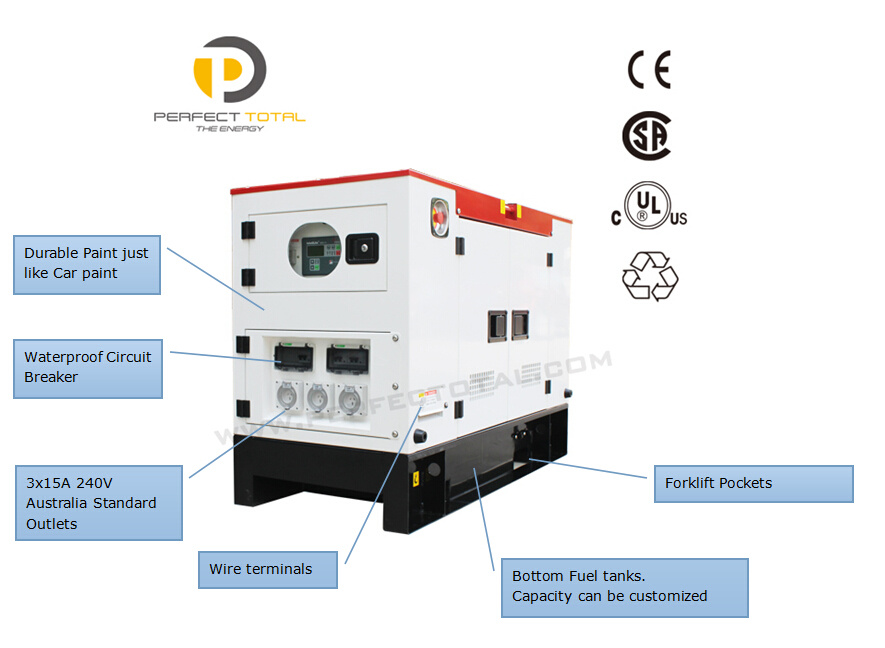

isuzu silent Diesel Generator with CE Approved
Quick Details
Place of Origin:Zhejiang, China (Mainland)
Brand Name:PERFECT TOTAL
Model Number:25ESX-PT
Output Type:AC Three Phase
Speed:1500RPM
Frequency:50Hz, 50Hz or 60Hz
Rated Power:25Kva
Rated Voltage:240/415V
Rated Current:35A
Product Name:25Kva Super Silent Diesel Generator Set With Isuzu Engine
Engine brand:ISUZU Brand 4JB1
Alternator Brand:Stamford/ Leory Somer/ MECC
Noisy Level:55DB
Fuel tank Capacity:105 liters
Bottom Forklift:Yes
ATS:YES
Steel:Galvanized then powder coating
Controller:DEEPSEA
enset Model Soundproof diesel generator set
25ESX-PT
SET
Rated power(Kw/kva) Prime power
20KW/25KVA
Frequency(Hz)
50
Phase
3
Voltage(V)
240/415
Current(A)
34.8
Fuel capacity(L)
82
Fuel consumption(L/Hour)
100% Prime power
4.4
Dimension (mm)
L
1880
W
800
H
1080
Weight(kg)
770
Noice level for silent type (Db/7m)
56
ENGINE
Model
4JB1, ISUZU Brand
Prime power(kw/kva)
24/30
Cylinders
4
Bore×stroke(mm)
93×102
Intake Method
Natural intake
Displacement(L)
2.771
Speed governing
Mechanical governor
Cooling starting method
Water cooling
ALTERNATOR
Model
DG184F
Rated power(kw/kva)
22/27.5
Insulation class
H
Alternator enclosure
IP23
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.
HANGZHOU PERFECT TOTAL MACHINERY Co., Ltd. Built at 2014 Year and we have 14 years experience of doing Diesel Generator, Light Tower. We are Specialized in production and sales of diesel generators, super-silent generator, REEFER CONTAINER generator, mobile light tower, plant oil generator, message signs, construction machine, and the development of new products. We have much experience in manufacture and have strong technical strength. All products are of good quality and we are able to offer the efficient service, therefore the products are popular in our clients and enjoy and excellent reputation. We have big market in Dubai, Australia, Canada, USA, Malaysia, ...etc market. Offering OCEA power system equipment and high-quality service to over 200contries. We can do Generator power ranges from 5kVA to2200kVA. According to the functions, we offer common type (standard), automation, trailers, Van, low noise, and other series. We can design and manufacture the special specification and models in accordance with the customers' requirements. We would like to invite reliable partner join us!
