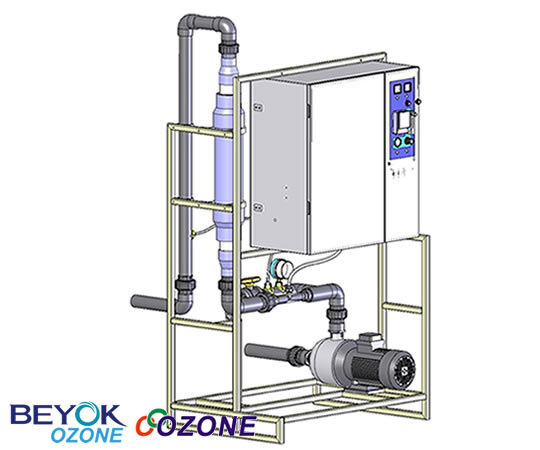

Item: Industrial Ozone Water System
Model: GQW-80
The industrial Ozone Water System (GQW-80)series are designed for industrial applications. Providing an ozone output range from 8 to 80 grams per hour, these industrial ozone systems deliver tremendous value, performance and output capability in the most demanding conditions.
1 to 100% variable ozone output control with user-friendly controls and diagnostic panels that can be adjusted to meet optimal requirements. These panels monitor and regulate oxygen flow, oxygen pressure and ozone output from generators that feature ceramic-dielectric corona discharge reaction chambers.
Industrial Ozone Water System (GQW-80)Specifications:
Industrial Ozone Water System (GQW-80) Ozone Output (± 10%): 80 g/hr @ 40 SCFH with oxygen
Industrial Ozone Water System (GQW-80) Water Flow Rate: 280 GPM (16m3/h)
Industrial Ozone Water System (GQW-80) Power requirement: 220V/50Hz-120V/60Hz available
Industrial Ozone Water System (GQW-80) Power consumption: MAX 5000 Watts
Industrial Ozone Water System (GQW-80) Control: 1~100% variable ozone output
Industrial Ozone Water System (GQW-80) Environmental Conditions: Up to 85% Humidity, 40~100 deg F
Industrial Ozone Water System (GQW-80) Cooling Water: 6 SCFH, 50º F - 90º F, 10-30 PSI
Industrial Ozone Water System (GQW-80) Cooling Water Connection: 1/4-inch FPT connections
Industrial Ozone Water System (GQW-80) Supply Water Temp.: 40~90 deg F
Industrial Ozone Water System (GQW-80) Supply Water Press.: 10 PSI(min)
Industrial Ozone Water System (GQW-80) Supply Water Flow: 280 GPM(min)
Industrial Ozone Water System (GQW-80) Water Connection: 1/2-inch FPT connections
Industrial Ozone Water System (GQW-80) Chassis: Stainless Steel Chassis
Industrial Ozone Water System (GQW-80) Dimension (LxWxH): 43.3-in x 29.9-in x 81.3-in (1, 100x760x2, 066 mm)
Industrial Ozone Water System (GQW-80) Net Weight: -lb (kg)
Industrial Ozone Water System (GQW-80) Features:
Turn Key Ozone Generation System(built-in water pump)
Ozone injector and mixing tubing including
Oxygen concentrator optional
Manual 1-100% ozone output control
Very compact system
Easy installation and simple operation
Dependable, reliable, low-maintenance operation
One year warranty
Industrial Ozone Water System (GQW-80) Benefits:
Energy savings
Water savings
Operational efficiency
Complete disinfection
Effluent quality
Industrial Ozone Water System (GQW-80) Application: Cooling tower, Waste water, Commercial swimming pools, Bottling plants, Small community portable water systems, Aquatic life support, Food safety applications, Winery applications, Aquariums
If you are interested in our Industrial Ozone Water System (GQW-80), please feel free to contact with us.
CINH Group Co., limited is a group limited company, has been engaged in the research and development of ozone generators and tools and low voltage electrical for more than fifteen years. With our years of experience of designing and manufacture products, we have been a well-known group company in this industry in China. We have our own professional research institute and several industrial parks and branch companies in different cities in China, the products have obtained VDE, RoHS, CE, cb, UL and GS and kema certificates.
We can design and manufature products according to the customers' special demand. Our products have been exported to many countries, and the amount of products exported to other countries continues to grow, "BEYOK" and "CINH" brand will go to worldwide.
Providing you the customer with high quality, professional products and satisfying service is always our belief. Our technology and experience in ozone industry make it to be reality.
If you need more information please contact us at any time. We will be very glad to hear from you soon.
