| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oxygen Flow: |
10/15/20 L/Min |
| Oxygen Concentration: |
More Than 90% |
| Outlet Pressure: |
0.04-0.35mpa |
| Certificate: |
CE & ISO |
| Supply Ability: |
1000 Sets/Month |
| Gas Source: |
Psa |
Product Description
Longfian Scitech Co. Ltd is a professional manufacturer specializing in producing medical serial & industry serial oxygen concentrator.

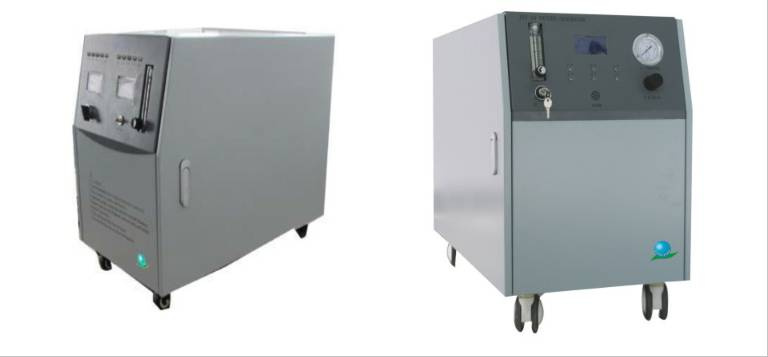

Industrial Oxygen Concentrator
Features:
1. Manually remove the alarm
2. Emergency stop button
3. Audio and visual alarm for high&low pressure
4. Full digital control system
5. Low purity alarm function
6. Flow rate can be 5LPM, 8LPM, 10LPM, 15LPM, 20LPM, Outlet Pressure can be 0.04-0.07Mpa, 0.04-0.14Mpa, 0.04-0.35Mpa
Technical Specifications:
1. Oxygen flow(L/min): 10/15/20
2. Oxygen outlet pressure(Mpa): 0.04-0.35Mpa
3. Oxygen concentration: ≥ 90%
4. Sound level: ≤ 60dB
5. Power: AC220V± 10%, 50/60± 1Hz; AC110V± 10%, 50/60± 1Hz
6. Power Consumption: ≤ 1500W
7. Alarm: Power failure alarm, High&Low pressure alarm
8. Net weight: 85Kgs
9. Size(cm): 530 x 600 x 700 mm
|
Model |
JAY-10 |
JAY-15 |
JAY-20 |
|
Rated power(VA) |
550/600/850 |
850/1000 |
850/1800 |
|
Operation voltage(V/Hz) |
AC220V± 22V 50Hz± 1Hz |
AC220V± 22V 50Hz± 1Hz |
AC220V± 22V 50Hz± 1Hz |
|
Oxygen Flow(L/min) |
0~10 |
0~15 |
0~20 |
|
Oxygen concentration(V/V) |
93%± 3% |
93%± 3% |
93%± 3% |
|
Outlet pressure (MPa) |
0.14-0.4 |
0.14-0.4 |
0.14-0.4 |
|
Alarm |
power failure;
High& low pressure |
power failure;
High& low pressure |
power failure;
High& low pressure |
|
Sound level (dB) |
≤ 55 |
≤ 55 |
≤ 60 |
|
Electrical category |
ClassIType B |
ClassIType B |
ClassIType B |
|
Product category |
ClassII Type a |
ClassII Type a |
ClassII Type a |
|
Dehumidifier way |
Automatic Dehumidifier |
Refrigerated air Dryer |
Refrigerated air Dryer |
|
Net weight (Kg) |
65 |
85 |
85 |
|
Dimension (mm) |
900*400*660 |
800*580*660 |
800*580*660 |
|
Low purity alarm |
When oxygen purity is 84%, the blue lamp is on, when oxygen purity is below 84% , red lamp is on, indicating low purity. (Accuracy± 2%) |
When oxygen purity is 84%, the blue lamp is on, when oxygen purity is below 84% , red lamp is on, indicating low purity. (Accuracy± 2%) |
When oxygen purity is 84%, the blue lamp is on, when oxygen purity is below 84% , red lamp is on, indicating low purity. (Accuracy± 2%) |
|
Relief valve pressure |
0.5MPa |
0.5MPa |
0.5MPa |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
