| Prod Model: |
SL-36280P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Manufacturer
HZSOLAR
Model

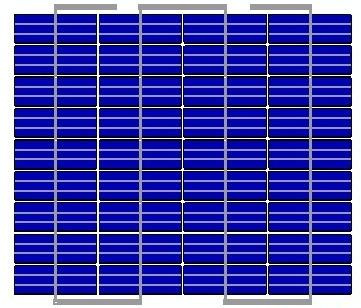

SL-36280P
Maximum power at STC (Pmax)
280W
Tolerance
± 3%
Efficiency of cell
16.0%
Type of cell
Poly-crystalline
Cell size (mm)
156*156
No. Of Cells
72(6*12)
Size of solar module
1955*985*50 mm
Frame
Anodized aluminum
Weight
27kg
Optimum operating voltage (Vmp)
36 V
Optimum operating Current ( Imp)
7.78A
Short circuit Current (Isc)
9.10A
Open circuit Voltage (Voc)
43.2V
Coefficient of Volt per 0C
-0.38%
Coefficient of Current per 0C
0.10%
Coefficient of Power per 0C
-0.47%
Standard Test Conditions (STC)
AM1.5, 250C, 1000W/M2
Operating Temperature
_ 40C0 ~ +85C0
Surface Maximum Load Capacity
60m/s(200kg/sq. M)
Allowable Hail Load
225g steel ball fall down from 1m height
Warranty
Free maintenance: 5 years
Pmax is not less than 90% in 10 years
Pmax is not less than 80% in 20 years
Packing
2PCS /carton
1. High quality low price
2., experienced manufacture
3. Certificates complete(CE. ISO. RoHS)
4. Fast&on time delivery
5. L/C&TTpayment
6. Packaging details Double corrugated cartons loaded on wooden pallets, suitable for export
Hangzhou Solar Photoelectricity Co., Ltd. is a manufactory engaged in the research, production and marketing of solar modules and solar photovoltaic systems. It was established in 2005 in Fuyang, Hangzhou, Zhejiang Province, China. Our previous name was Canon Factory in Fuyang. In April 2009, our name was changed to Hangzhou Solar Photoelectricity Co., Ltd.
We can produce a wide range of solar panels, with size from several millimeters to 1, 900 millimeters and electrical property from 10 to 280 watts. As to the packing methods, there are glass laminated solar panels, PET laminated solar panels and epoxy solar panels. Our yearly production capacity is 15, 000, 000 watts of solar panels.
To provide customers with quality products is always our goal. Our company is equipped with a variety of quality testing equipment. Paying attention to every detail and each product, we have passed the certifications of ISO9001, CE and RoHS.
"On products with the same quality, we have lower price; On products with the same price, we have better quality" is our business philosophy. Our company will be your right choice. We welcome new and old friends to contact us at anytime.
