| Markets: |
North America,Western Europe |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
Product Description
Zhejiang huaying wind power generator Co., Ltd, a member of tongkun group--China's leading industrial conglomerate, is a high tech startup company specialized in the research, production and marketing of small and middle sized wind turbine system. Located 120km away from Shanghai, the company enjoys excellent traffic convenience.
|

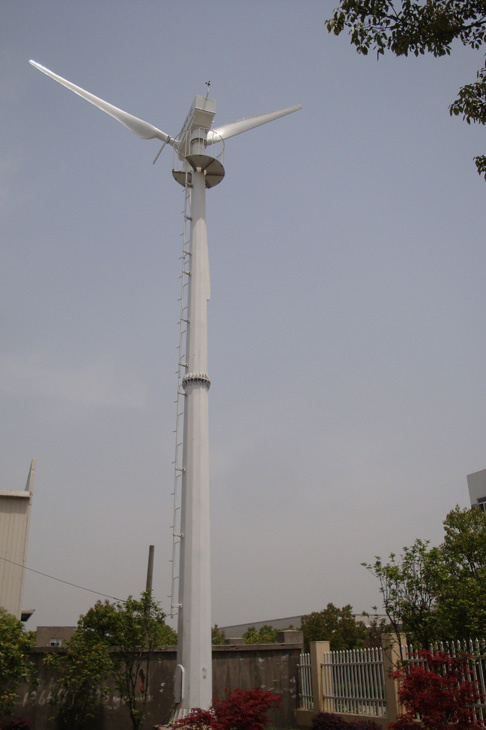

HY_30kW TECHNICAL PARAMETER |
|
Rated power(KW) |
30 |
|
Material of the blades Fiberglass-Reinforced Plastics |
|
Rated wind speed(m/s) |
12 |
|
Speed regulation method |
Passive pitch |
|
Startup wind speed(m/s) |
3 |
|
Generator style |
3-phase AC PM |
|
Working wind speed(m/s) |
4~25 |
|
Tower height (m) |
15 |
|
Survived wind speed(m/s) |
50 |
|
Stop method |
Positive pitch |
|
Rated rotate speed (r/min) |
120 |
|
Main machine weight(kg) |
1770 |
|
Rotor Diameter(m) |
11 |
|
Lattice tower weight(kg) |
3200 |
|
Working voltage(V) |
DC540V/AC380V |
|
Freestanding tower weight (kg) |
4170 |
Zhejiang huaying wind power generator Co., Ltd, a member of tongkun group--China's leading industrial conglomerate, is a high tech startup company specialized in the research, production and marketing of small and middle sized wind turbine system. Located 120km away from Shanghai, the company enjoys excellent traffic convenience.
Guided by the principle of "advanced technology, exquisite product and competent manufacturing", the company will further enhance the reliability and performance of wind turbine based on the brand new mechanical blade pitch technology so as to let the huaying wind turbine run all over the world and make contribution to the green planet builds.
