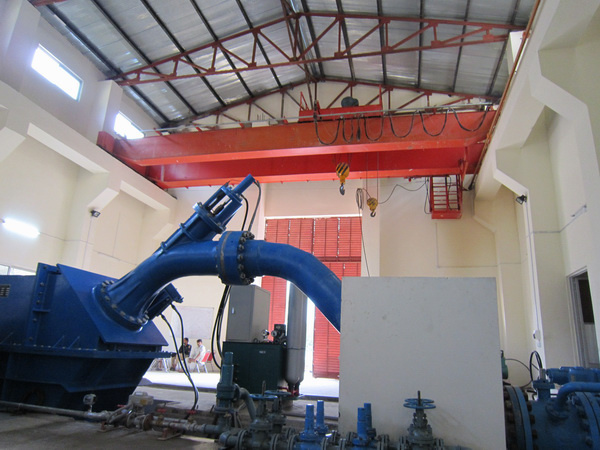

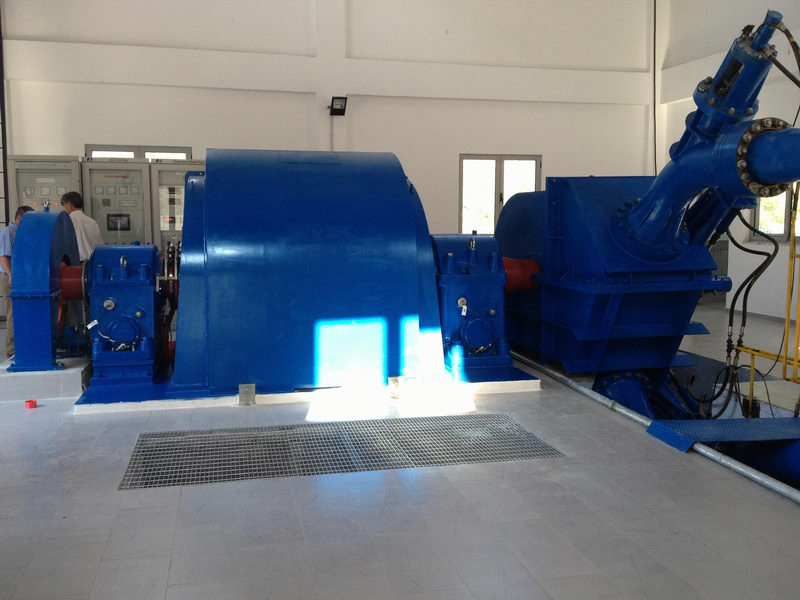

Horizontal Double Nozzle Pelton Turbine are one type of impulse turbine which are the best election for high head and small discharge hydraulic power resources. The impulse type turbines made by Fuchun are ranging from 80 to 1,000m in water head,200kW to 20MW in capacity and 0.55 to 2.3 in runner diameter. Theirs shaft arrangements are either vertical or horizontal and they may have single nozzle, twin or multi-nozzles.They have compact structure, small size, high efficiency and need fewer investments.They have been divided into Turgo and Pelton type.
Pelton turbine also called a free-jet turbine or Pelton wheel, a type of impulse turbine, named after L. A. Pelton who invented it in 1880. Water passes through nozzles and strikes spoon-shaped buckets or cups arranged on the periphery of a runner, which causes the runner to rotate, producing mechanical energy. The runner is fixed on a shaft, and the rotational motion of the turbine is transmitted by the shaft to a generator.
Hydro turbine
Generator
Speed
Type of
Type
Design
Design
Power
Rated
Type
Rated
Rated
governor
Vaive
Head(m)
Flow
(kW)
Speed
Power
Voltage
(m³/s)
(r/min)
(kW)
(v)
CJA237-W55/1×5.5
123
0.105
111
750
SFW100-8/590
100
400
Manual/
Z941H25 DN250
CJA237-W55/1×5.5
166
0.124
178
1000
SFW160-6/590
160
400
electrical
Z941H25 DN250
CJA237-W55/1×5.5
192
0.134
222
1000
SFW200-6/740
200
400
Z941H40 DN250
CJA237-W55/1×5.5
224
0.145
278
1000
SFW250-6/740
250
400
Z941H40 DN250
CJA237-W55/1×6
110
0.117
111
750
SFW100-8/590
100
400
Z941H16 DN250
CJA237-W55/1×6
172
0.166
222
1000
SFW200-6/740
200
400
Z941H25 DN250
CJA237-W55/1×6
200
0.161
278
1000
SFW250-6/740
250
400
Z941H40 DN250
CJA237-W55/1×6
235
0.177
356
1000
SFW320-6/850
320
400
Z941H40 DN250
CJA237-W55/1×7
103
0.156
139
750
SFW125-8/590
125
400
Z941H16 DN250
CJA237-W55/1×7
122
0.169
178
750
SFW160-8/740
160
400
Z941H25 DN250
CJA237-W55/1×7
163
0.198
278
1000
SFW250-6/740
250
400
Z941H25 DN250
CJA237-W55/1×7
190
0.216
356
1000
SFW320-6/850
320
400
Z941H40 DN250
CJA237-W55/1×7
222
0.231
440
1000
SFW400-6/990
400
400
Z941H40 DN250
CJA237-W70/1×5.5
142
0.115
139
750
SFW125-8/590
125
400
Z941H25 DN250
CJA237-W70/1×5.5
263
0.158
356
1000
SFW320-6/850
320
400
Z941H40 DN250
CJA237-W70/1×5.5
302
0.167
440
1000
SFW400-6/990
400
400
Z941H40 DN250
CJA237-W70/1×5.5
352
0.182
550
1000
SFW500-6/990
500
400
Z941H64 DN250
CJA237-W70/1×7
141
0.23
278
750
SFW250-8/850
250
400
Z941H25 DN250
CJA237-W70/1×7
257
0.25
550
1000
SFW500-6/990
500
400
Z941H40 DN250
CJA237-W70/1×7
296
0.268
685
1000
SFW630-6/990
630
400
Z941H40 DN250
CJA237-W70/1×7
340
0.294
860
1000
SFW800-6/1180
800
400
Z941H64 DN250
CJA237-W70/1×7.5
311
0.319
860
1000
SFW800-6/1180
800
400
Z941H64 DN300
CJA237-W70/1×7.5
360
0.378
1075
1000
SFW1000-6/1180
1000
6300
Z941H64 DN300
CJA237-W70/1×9
158
0.327
440
750
SFW400-8/990
400
400
Z941H25 DN300
CJA237-W70/1×9
183
0.352
550
750
SFW500-8/990
500
400
Z941H25 DN300
CJA237-W80/1×5.5
405
0.195
685
1000
SFW630-6/990
630
400
Z941H64 DN250
CJA237-W80/1×7
391
0.315
1075
1000
SFW1000-6/1180
1000
6300
CWT/1
Z941H64 DN250
CJA237-W80/1×7
447
0.346
1344
1000
SFW1250-6/1180
1250
6300
CWT/1
Z941H64 DN250
CJA237-W80/1×9
209
0.38
685
750
SFW630-8/1180
630
400
CWT/1
Z941H40 DN350
CJA237-W80/1×9
244
0.411
860
750
SFW800-8/1180
800
400
CWT/1
Z941H40 DN350
CJA237-W90/1×5.5
468
0.211
860
1000
SFW800-6/1180
800
400
CWT/1
Z941H64 DN250
CJA237-W90/1×5.5
540
0.23
1075
1000
SFW1000-6/1180
1000
6300
CWT/1
Z941H100 DN250
