Rated Power:
100000W
Maximum Output Power:
100000W
Battery Bank Voltage:
480VDC
Start-up Wind Speed:
3m/S
Rated Wind Speed:
11m/S
Working Wind Speed:
3m/S - 25m/S
Survival Wind Speed:
60m/S
Generator Efficiency:
>0.93
Certificate:
CE, BV, ISO
Tower:
Freestanding Tower or Hydraulic Tower
Number Of Blade:
Three Blade
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Phase:
Three Phase
Product Description
Company strong strength:
1) Advanced Technology-Won gold award of 37th Eureka World Invention Exposition in Brussels; 2)Quality--NSK bearings, Siemens PLC module 3) Certification--CE, BV, ISO; 4)Hight Service--Long time warranty with Unique Service department.
Currently our company supply:
1) Wind-solar hybrid led light system; 2) Off grid/on grid wind power generating system 3) Wind-solar hybrid power generating system; 4) Wind-solar-diesel hybrid power generating system;
If you have any questions or concerns, please do not hesitate to contact with us either by email or by phone.

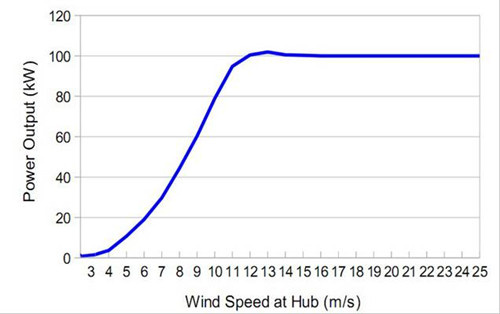

CURVE:
Model No.
H20.8-100KW
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
20.8m
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
100 kW @ 11m/s
Battery Bank Voltage
480 Vdc
System Output Voltage
380 Vac three phase
Cut-in Wind Speed
3m/s
Rated rotating rate
60 r/min
Working Wind Speed
3-25 m/s
Survival Wind Speed
60 m/s
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
4000 kg
Generator Efficiency
>0.93
Energy monitoring & User control
Siemens PLC controller with touch screen
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Auto Yawing & Hydraulic Braking & Pitch control
Shutting Down Method
Manual & Automatic electromagnetism Braking
Warranty
2 years for generator
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
