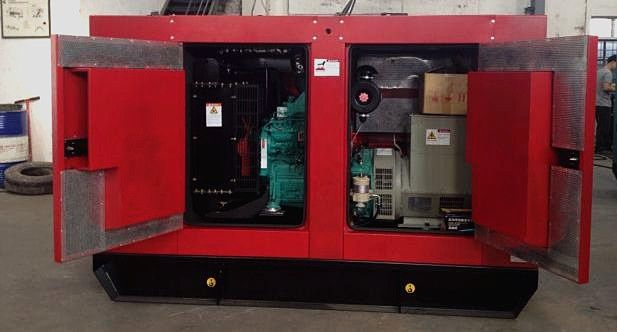

High Function Silent Diesel Generator
Price: |
US $ 50000-150000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
High function silent diesel generator:Product Description:Product Features:
1. With Brand New Cummins Engine.
2. 100% Copper Alternator Generator.
3. Good Quality and Rapid Service.
4. Lasted 8 Hours Running Fuel Tank.
5. Fuel Less Generator.
6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.
Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
KVA | KW | KVA | KW |
OCL-1650 | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | LTG454A1 | 6110 |
220/380V, AC, 50Hz, 0.8PF (lag), Three phase four wire Generator set specificationsGovernor Class | ISO8528 G3 |
Potential Drop | 1% |
Steady Voltage Regulation | 1% |
Frequency Drop | Synchronous(0%) |
Steady-state Frequency | 0.25% |
R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
Fuel Consumption Rate ,g/kw.h(L/hr) | 205 (293.67) |
Starting Battery Capacity ,A/hrhhr | 200*4 |
Total Coolant Capacity ,L | 330 |
Fuel Capacity (base tank),L | N/A |
Engine DataModel | KTA50-GS8 |
Type | "V" Type 16 Cylinder,4 Cycle |
Displacement ,L | 50.3 |
Compression Ration | 14.9:1 |
Aspiration | Turbo, Water / Air Cooling |
Fuel System | PT type Fuel Pump,EFC Electronic Governor |
Bore*Stroke(mm) | 159*159 |
Rated Speed ,rpm | 1500 |
Governor Type | Electronic |
Starting Voltage | 24V ,Negative ground |
Battery Charging System | 24V 35A |
Lubricant Capacity ,L | 204 |
Coolant Capacity, L | 330 |
Alternator DataProtection Class | IP21 |
Insulation Class | Class H |
Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
Excitation Type | Brushless & Self-excited |
Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
Telephone Interference(TIF) | <50 |
Telephone Interference(THF) | <2% |
Exhaust SystemExhaust air flow | 4350 L/S |
Exhaust Temperature | 510ºC |
Max Back Pressure | 10kPa |
Air Intake SystemMax Intake Restriction | 6.35 kPa |
Burning Capacity | 1655 L/S |
Air Flow | 36000 L/S |
Lubricant System Total Lubricant Capacity | 204L |
Lubricant Consumption | ≤4g/kwh |
Engine Oil Tank Capacity | 178L |
Oil Pressure at Rated Speed | 345-483 kPa |
Cooling SystemTotal Coolant Capacity | 330L |
Thermostat | 82-93ºC |
Max Water Temperature | 104ºC |
Company profile:
Prod Model: |
ODL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Green,Yellow,Blue,Ect |
Brand: |
Oripo |
Control System: |
Intelligent Control |
Rated Frequency: |
50Hz/60Hz |
Rated Voltage: |
230/440V |
Rated Current: |
10A/2000A |
Rated Speed: |
1500rmp/1800rmp |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Excitation Mode: |
Brushless Self-Excited |
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
