| Prod Model: |
NES72-6-280P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

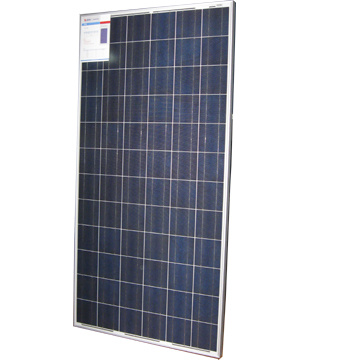

Solar Panel |
| Certificte: |
CE, Iec, TUV |
| Application: |
DC 24v System |
| Size: |
1956*992*50mm |
| Weight: |
27kgs |
Product Description
Solar Panel with TUV
Solar cell efficiency 16.5%
Size: 1956*992*50mm
CE, IEC, TUV certificate
Limited warranty 25 yrs
Features
1, High module conversion efficiency, through superior manufacturing technology
2, Guaranteed ± 3% power output tolerance ensures high reliability
3, Entire module certified to withstand High Wind-Pressure, Snow-Load, and extreme Temperature Changes
4, Rigorous quality control meeting the highest internatinal standards: ISO 9001: 2008 and ISO 14001: 2004
5, Certification and standards: IEC 61215, IEC 61730, conformity to CE
Solar Panel Applications
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications
Solar Panel Quality and Warranty
1. Peak power of single module in guaranteed in +3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power.
3. Rigorous quality control meets the highest international standard.
4. 5 years limited warranty on material and workmanship.
5. 10 years and 25 years limited warranty for minimum power output.
Company Profile
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods.
|
Description of Specification |
Units |
Model |
|
NES72-6-280M |
|
General Data |
|
Nominal Power |
W |
280W |
|
Application |
|
DC 24V System |
|
Surface Maximum Load Capacity |
kg/m 2 |
200 |
|
Storage & Operating Temperature |
Deg C |
-40 to +80 |
|
Standard Test Conditions |
|
1000W/M² , 1.5AM, 25 |
|
Dimensions(L*W*H) |
mm |
1956*992*50 |
|
Weight |
kg |
27 |
|
Solar Cell |
|
Cell Type |
|
Mono |
|
Wafer Diameter |
mm 2 |
156*156 |
|
Number of Cells |
|
72(6*12) |
|
Maximum Power |
W |
280 |
|
Watt Tolerance |
% |
+/-3 |
|
Voltage & Ampereage |
|
Maximum System Voltage |
Volts |
1000 |
|
Maximum Operating Voltage(Vmp) |
Volts |
36.7 |
|
Maximum Operating Current(Imp) |
Amps |
7.66 |
|
Open Circuit Voltage(Voc) |
Volts |
44.35 |
|
Short Circuit Current(Isc) |
Amps |
8.2 |
|
Operational Temperatures |
|
Temp Coefficent of Isc(TK Isc) |
% per deg. C |
+0.045 |
|
Temp Coefficent of Voc(TK Voc) |
% per deg. C |
-0.33 |
|
Temp Coefficent of Pmax(TK Pmax) |
% per deg. C |
-0.45 |
|
Normal Op. Cell Temp (NOCT) |
deg. C |
45± 2 |
|
Materials & Accessories Data (All Certified by CE and TUV) |
|
Cable |
Connerctors |
|
IP65 |
|
Length |
M |
0.9 |
|
Wire Diameter |
mm 2 |
4 |
|
Frame |
|
Aluminum Anodzed |
|
Glass |
Thickness |
mm |
3.2 |
|
Low lron, High Transmisson, Toughness |
|
YES |
|
EVA resin |
mm |
0.5 |
|
Backsheet(TPT) |
mm |
0.3 |
Warranty
(Output) |
10 years |
% |
90 |
|
20 - 25 years |
% |
80 |
|
Whole Panel |
Years |
5 |
