| Prod Model: |
H8.0-10KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Output: |
10kw |
| Generator Type: |
Permanent Magnet Generator |
| Blade Diameter: |
8m |
| Blade Material: |
Fiber Glass |
| Working Wind Speed: |
3m/S to 25m/S |
| Survival Wind Speed: |
50m/S |
| Over Wind Speed Control: |
Yawing, Hydraulic Braking |
| Tower: |
Guyed Tower, Freestanding Tower, Hydraulic Tower |
| Battery: |
AGM or Gel |
| Inverter: |
Pure Sine Wave |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
| Phase: |
Three Phase |
Product Description

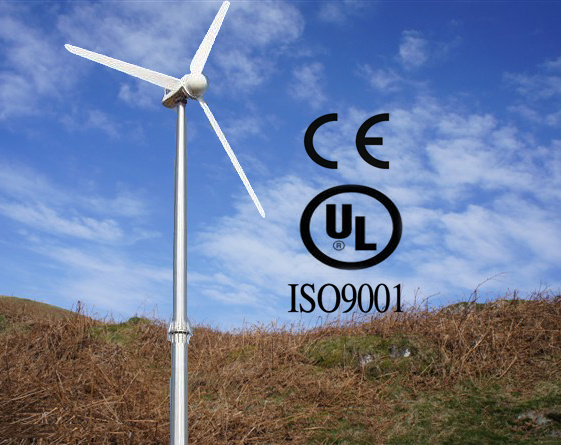

Hummer can offer both off grid system and on grid system for 10kw wind turbine wind generator, the off grid system uses batteries to store energy, and can directly run the electric applications. On grid system does not need batteries, but can directly connect with national grid and output electricity to the grid.
The whole system includes wind generating system, PLC controller, rectifier, dumping load, inverter, tower, battery bank (for off grid system)
| Rated power (W) | 10000 |
| Maximum output power (W) | 15000 |
| Battery bank voltage (VDC) | 240 |
| Cut-in wind speed (m/s) | 3.0 |
| Rated wind speed (m/s) | 10.0 |
| Working wind speed (m/s) | 3-25 |
| Survival wind speed (m/s) | 50 |
| Generator type | Permanent Magnet Alternator |
| Blade material/quantity | GRP/3 |
| Blade diameter (m) | 8.0 |
| Over speed control | Yaw + Electromagnetic brake / hydraulic brake |
| Shutting down method | Manual + Automatic |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
