| Prod Model: |
KINGKAR-WI-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Burning Capacity: |
20~30kg/Time (3-6 Times/Day) |
| Incinerator Size: |
1.45m*0.9m*1.75m |
| Size Of Waste Inlet Hole: |
480mm*600mm |
| Chimney: |
Outer Diameter 280mm |
| Air Blower: |
0.37kw |
| Combustion Burner: |
0.11kw, Fuel Consumption 4-6kg/H |
| Re-Combustion Burner: |
0.11kw, Fuel Consumption 4-6kg/H |
| Running-Voltage: |
220V /380V/Customized |
| Rated Gas Output (L/H): |
5000±10% |
| Water Consumption (L/H): |
2.7 |
| Gas Source: |
Gas |
Product Description
Product Description:

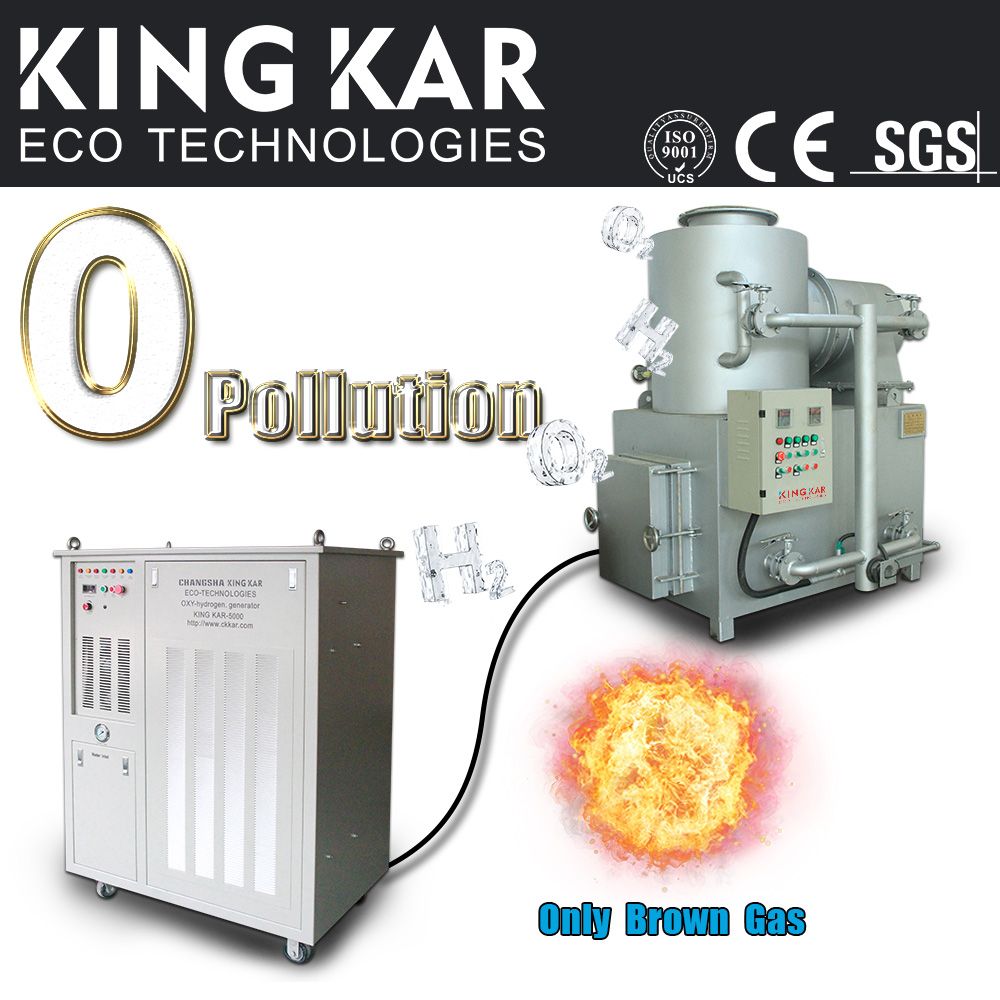

Waste incineration is incineration of solid waste equipment, often used in medical and life waste,animal treatment aspects of a sound processing device.Our machine is only need to use the oxy-hydrogen generator and electricity,objects of high temperature burning to be addressed in order to achieve the aim to disinfection(Does not require fuel).It features unique and advanced merits with high burning effect, reasonable burning technology, high degree of non-harm etc.It is an ideal choice for waste treatment of hospitals, hotels and various areas.
Features:
1. Zero Pollution.
2. No Secondary Pollution.
3. Does not require fuel.
4. Capacity reduction effect is good.(Reduce capacity 80% ~ 90%)
5. Full realization of waste resources disposal .
6. Transform the chemical energy to electric energy conversion.(Waste to treasure)
7. Process speed fast,large capacity.
8. Small occupation area.
Technical Parameters:
KINGKAR-WI-50 Waste Incinerator
| NO. | Item | Specification |
| Incinerator |
| 1 | Burning capacity | 20~30kg/time (3-6 times/day) |
| 2 | Incinerator size | 1.45m*0.9m*1.75m |
| 3 | Volume of incinerator | 1st combustion chamber 0.3m³; 2nd combustion |
| chamber 0.2m³; mixed chamber 0.03 m³ |
|
|
| 4 | Size of waste inlet hole | 480mm*600mm |
| 5 | Chimney | Outer diameter 280mm |
| 6 | Air blower | 0.37kw |
| 7 | Combustion burner | 0.11kw, fuel consumption 4-6kg/h |
| 8 | Re-combustion burner | 0.11kw, fuel consumption 4-6kg/h |
| 9 | Running-voltage | 220V /380V/customized |
| 10 | Weight(kg) | About 2300kg |
| Oxy-hydrogen generator |
| 11 | Voltage(V) | 380±10%,50/60Hz,three phase |
| 12 | Rated capacity(KVA) | 15 |
| 13 | Working pressure(Mpa) | ≤0.2 |
| 14 | Relative humidity(%) | ≤90 |
| 15 | Rated gas output (L/H) | 5000±10% |
| 16 | Water consumption (L/H) | 2.7 |
| 17 | Cooling way | Air cooling |
| 18 | Insulation class | F |
| 19 | Power protection grade | IP2S |
| 20 | Flame temperature(ºC) | 800-3200 adjustable |
| 21 | Working medium | Filtered water or deionized water or soft water |
| 22 | Working | Continuous |
| 23 | Environment temperature(ºC) | 0-40 |
| 24 | Dimension(L/W/H)mm | 1250*830*1720* |
| 25 | Weight(KG) | 567 |
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
