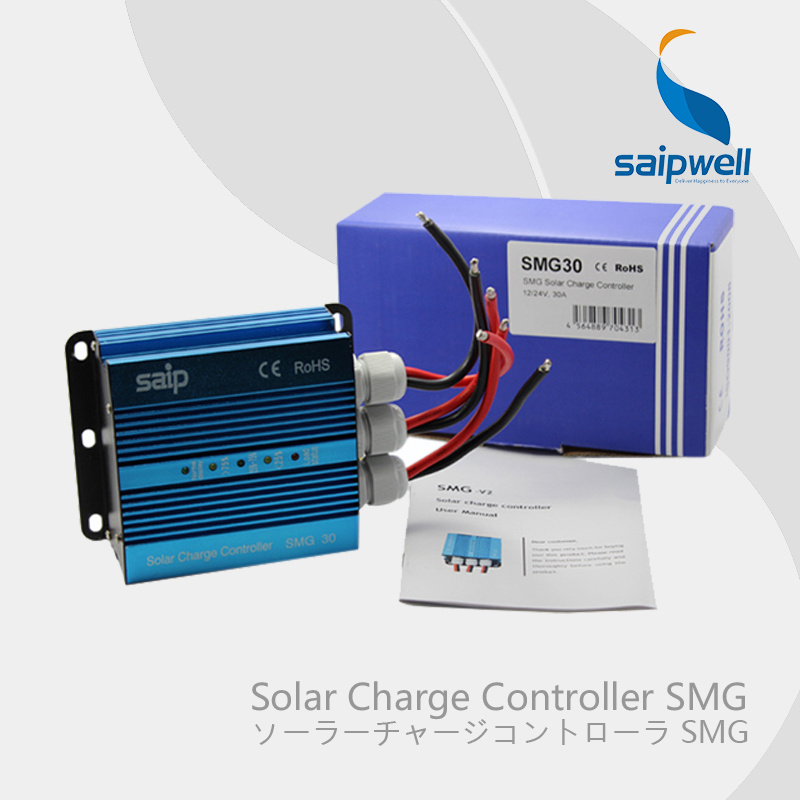

Good Quanlity Solar Charge Controller Smg Series (SMG30)

Prod Model:	SMG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Volatage:	Automatic Recognition 12/24V,48V
Load Reconnect Voltage:	12.8V/25.6V
Temperature Compensation:	-4mv/Cell*K
Dimensions(W*H*D):	98*122*49mm
Temperature Range:	-20 to +50

Product Description

SMG30/35/40/45/50

Function

Battery State-of-Charge display with 3 LEDs;
Acoustic load disconnect pre-warning;
PWM-regulation (series type);
Boost, Equalize and Float charging, also for VRLA;
Automatic 12/24 Volt detection;
Integrated temperature compensation;
Large terminals (up to 6mm2 wire size);
SOC and voltage controlled LVD;
Fully electronically protected.

The SMG series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost-equalizationfloat) is now adjustable to sealed and vented lead-acid batteries.
The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.
